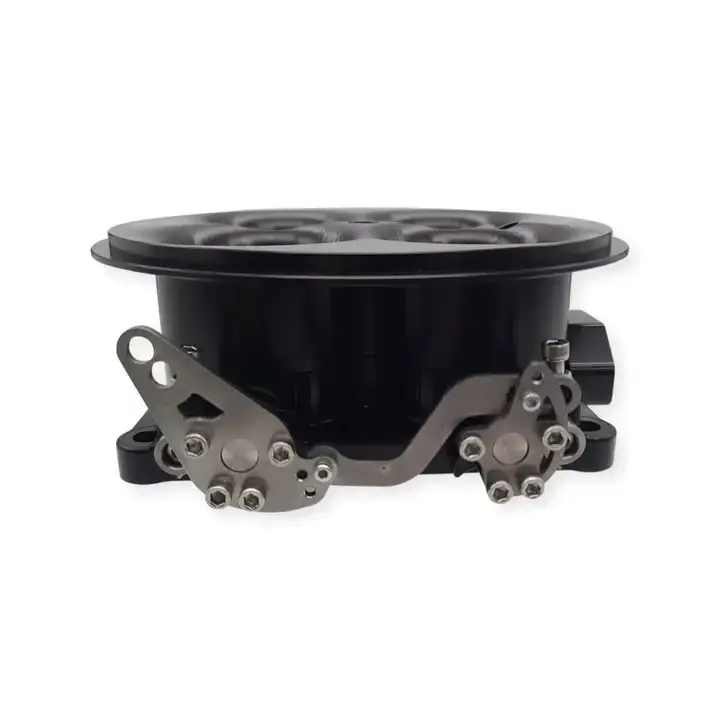

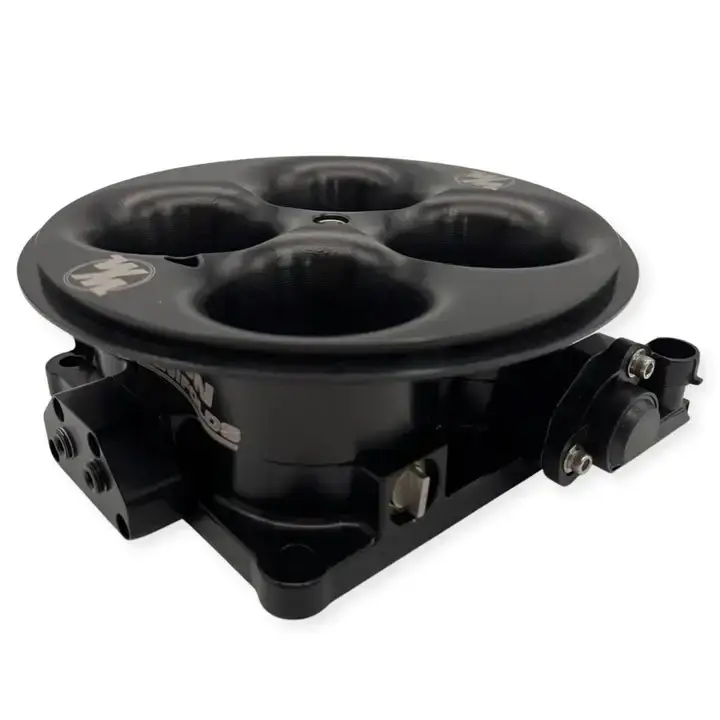

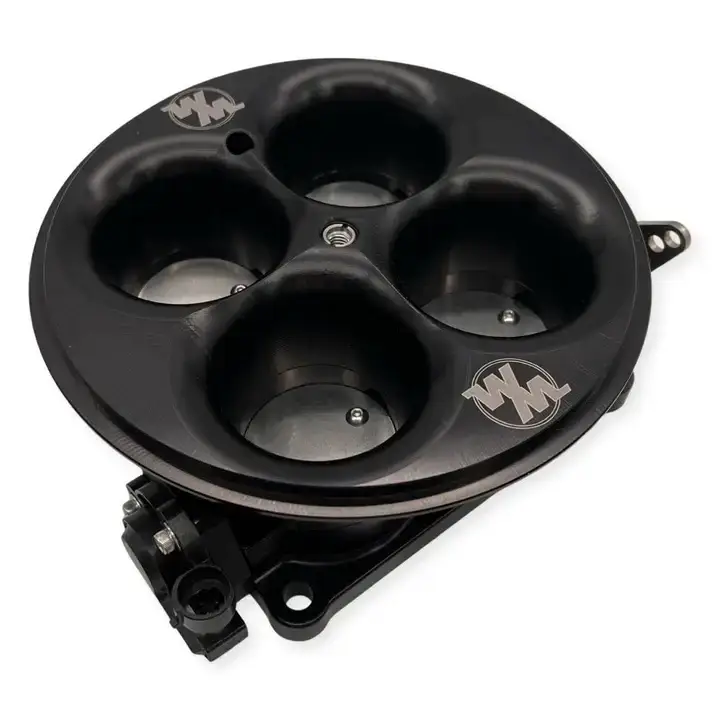

This is a Wilson Manifolds 4500 Dominator 4-Barrel Billet Throttle Body W/ TPS & IAC Provision 2.55" Bore 2400CFM - Anodized Black

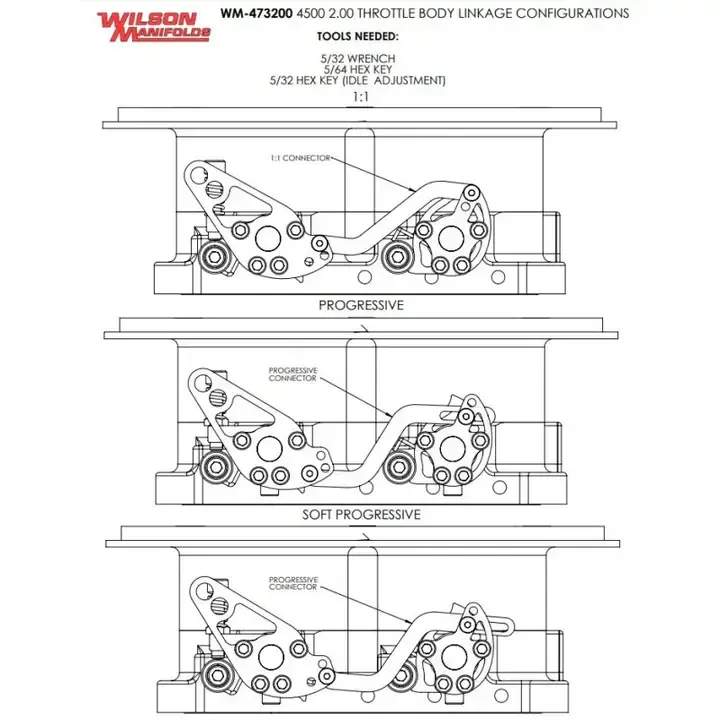

Wilson Manifolds High Flow Throttle Bodies were developed using the latest computer modeling software and test equipment available to produce designs that yield the maximum flow per square inch of cross-sectional area. This results in maximum power for any given throttle body type and size. Four barrel style throttle bodies are designed to work with our line of billet spacers and incorporate a tapered and radiused throttle bore and precisely machined progressive linkage for smooth throttle operation. They also feature inward opening throttle blades to eliminate any part throttle directional influence by the blades that can cause poor air distribution. We have also redesigned our Dominator style throttle bodies to incorporate improved throttle linkage and to significantly reduce overall mass. All throttle bodies feature stainless throttle blades to control vibration and reduce thermal expansion Throttle blades are fastened to the throttle shaft using aircraft quality hardware that is both Loctited and peened to assure positive retention of the blades. Throttle shafts are machined to decrease their cross-sectional area, which increases the actual cross-section available for airflow. All throttle bodies are machined from billet 6061-T6 aluminum on precision CNC machining centers for consistent quality and light weight. High flow throttle bodies are available in 4500 and 4150 four-barrel styles as well as many single bore sizes in Ford style.
With the ever increasing demand for power, Wilson Manifolds now offers one of the highest quality and highest flowing throttle bodies available today.
Included in this kit:
Wilson Manifolds 4500 Dominator 4-Barrel Billet Throttle Body W/ TPS & IAC Provision 2.55" Bore - Anodized Black
2.55" Bore
2400 CFM
Clamp is NOT included
This throttle body DOES have an TPS & IAC provision, IAC Parts Not Included
