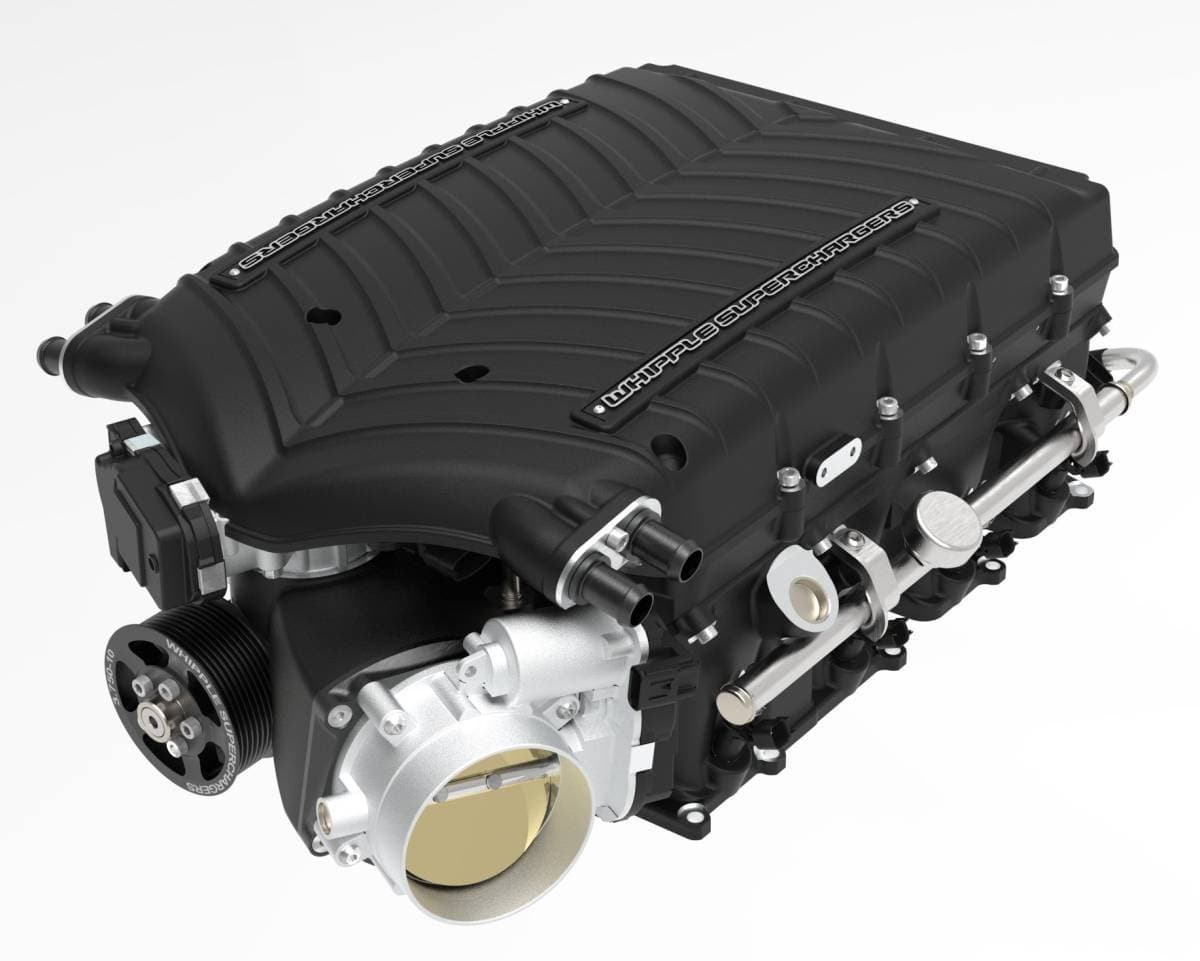

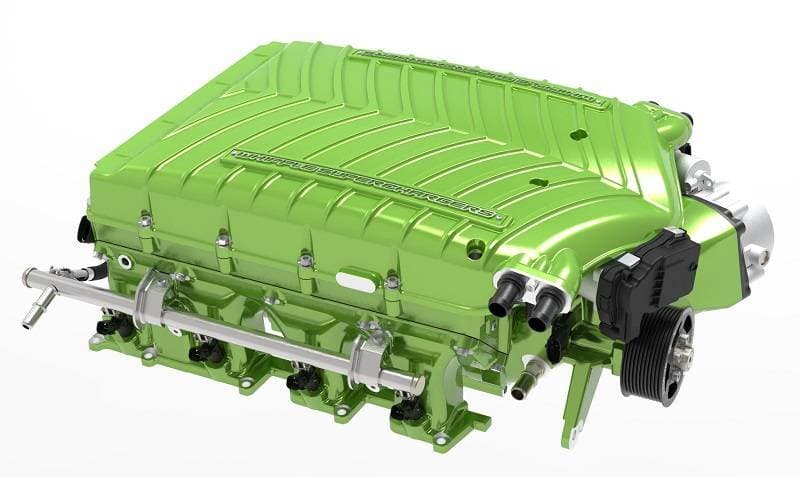

Whipple Ram TRX 6.2L 2019-2024 Gen 6 3.0L Stage 2 Tuner Supercharger Intercooled Kit

This is a Whipple Intercooled Stage 2 Tuner System with a Whipple Gen 6 3.0L setup for the 2019-2024 Ram TRX 6.2L. This all new system features Whipple's dual pass air-to-water intercooler for unmatched cooling capacity, a unique rear feed integrated Whipple twin-screw supercharger that reaches 99% volumetric efficiency and industry leading power potential. The unique dual pass intercooler achieves twice the amount of charge air cooling than any other supercharger system on the market!



The Gen 5 3.0L Whipple Supercharger set records, but the new Gen 6 rotor pack surpasses it after extensive testing. The Gen 6 features an improved rotor design, bearing plate, and inlet port for better rotor filling, lower temperatures, and enhanced airflow throughout the RPM range, delivering 30-35 more horsepower on 91 octane fuel while maintaining the same boost level. It includes a dual core, dual pass intercooler setup, significantly improving cooling. The throttle body design has been revised from roval to a round/oval shape, enhancing idle control and airflow. The Stage 2 System includes a billet 112mm throttle body and billet -8AN fuel rails for an even greater performance uplift.



This is a tuner kit which will require a custom tune done locally after you install the kit, and does not include security bypass cable, PCM unlock, tuning programmer or tuning credits. Whipple calibration for all stock vehicles is available.

There are many options available for Whipple Supercharger kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.

These supercharger kits are are the most complete available, including everything needed for installation. This includes all mounting brackets for the blower, pullies, belts, etc. You do not need to make any major modifications or purchase special tools or other parts. Many customers install in their garage or driveway over a weekend.

DETAILS:
Horsepower gain: Depends on tuning, head unit capable of 1000+ HP
3.0L Gen 6 supercharger head unit
3.75" 10 rib pulley is standard
Highly effective dual pass air-to-water intercooler
Billet -8AN fuel rails and 112mm throttle body included with the Stage 2 System
Fuel Pump Supplied: NONE Supplied
Fuel Injectors Supplied: NONE Supplied
Computer/Ignition Mods.: Tuning device, PCM unlock, Bypass Cable and Credits not included but calibration is available for all stock vehicles
The most power per pound of boost on the market!
Easy and quick installation
Most Efficient Twin-Screw Supercharger On The Market
Complete With All Necessary Parts & Hardware For Installation
No Internal Modifications Required

TREperformance is an Authorized Installing Dealer of Whipple Superchargers.
Custom made and shipped direct from Whipple in 5-10 business days!

Full System Specifications:
Over 300HP capacity over Hellaphant 3.0L Supercharger
Over 500hp capacity over Hellcat 2.4L supercharger
Expensive porting not required to make power

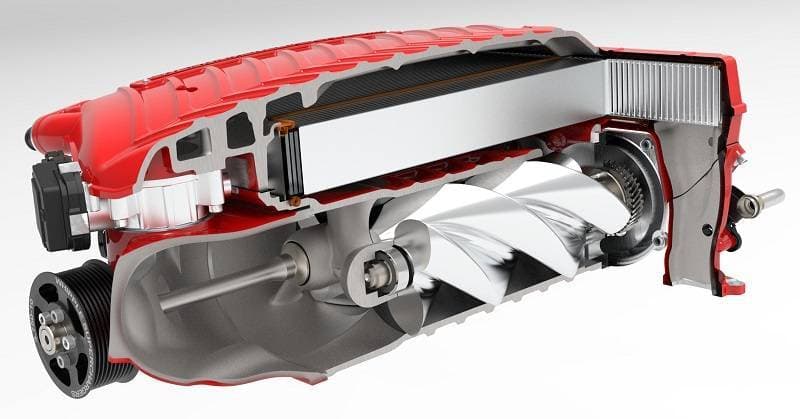

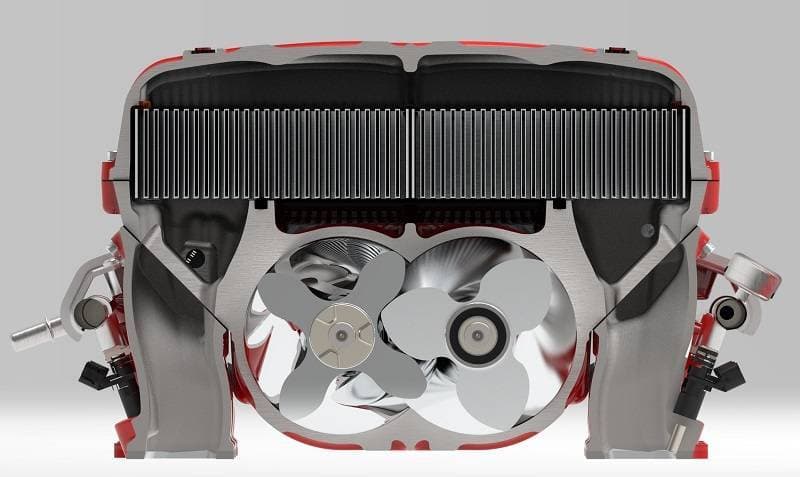

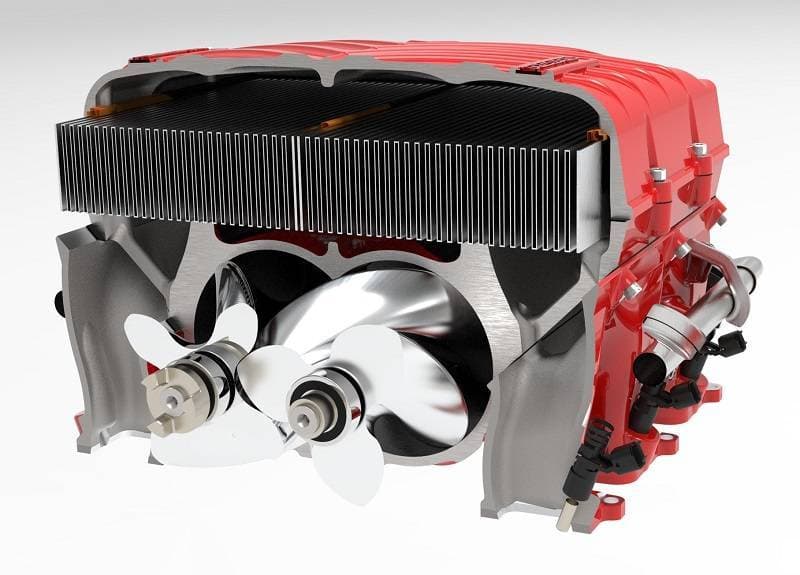

Massive, dual pass, dual core intercooler technology for twice the cooling area of any other PD SC for 6.2L
112mm opening for compatibility with stock TB, 102mm, 105mm and Whipple’s 112mm
Billet rotors far superior to cast rotors for high rpm operation
Superior profile with shorter leak path
Thrust retaining system for better bearing support

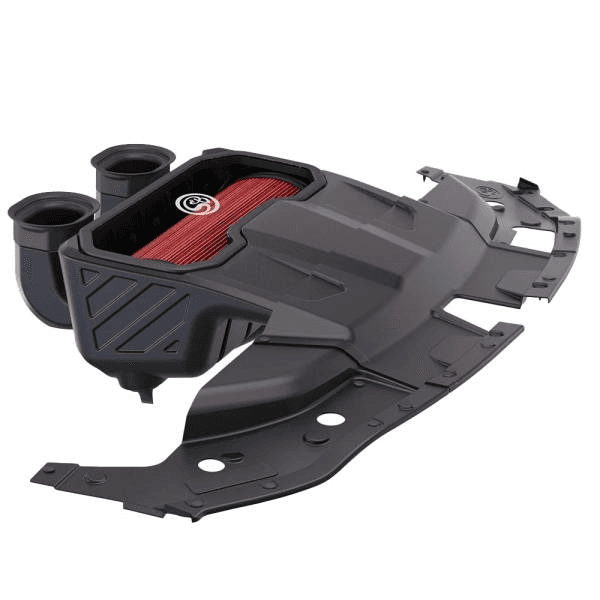

Massive air inlet for high flow (porting not required to get power)
Fits stock fuel rail, stock injectors or billet Whipple -8 rails
Works with stock belt system and optional balancer options
Works with electronic bypass control
Works with stock TMAP sensors
New over bearing 5-bolt supercharger pulleys
Billet bearing plate and oil cover

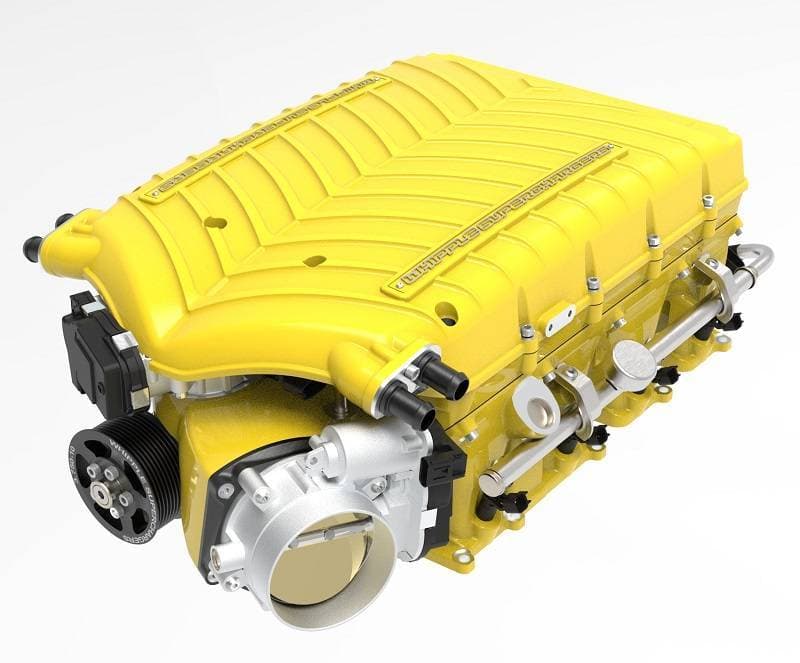

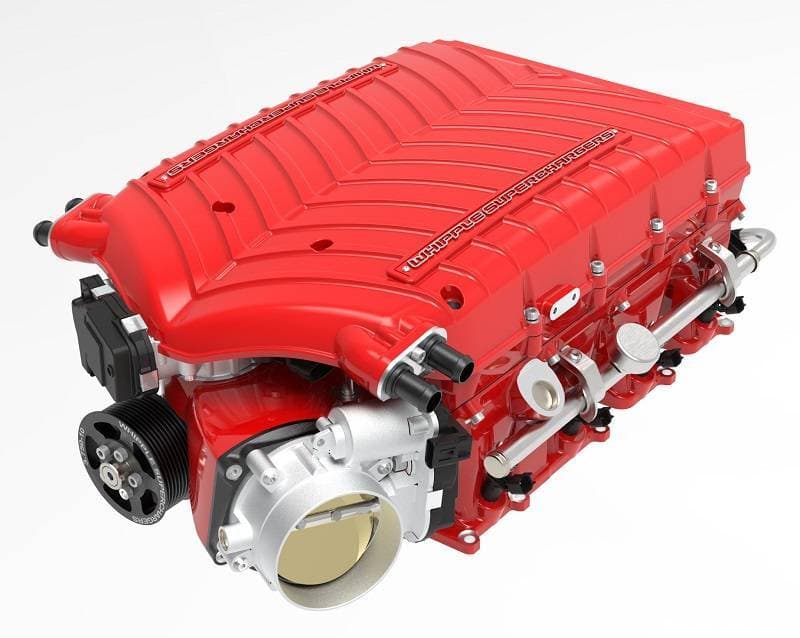

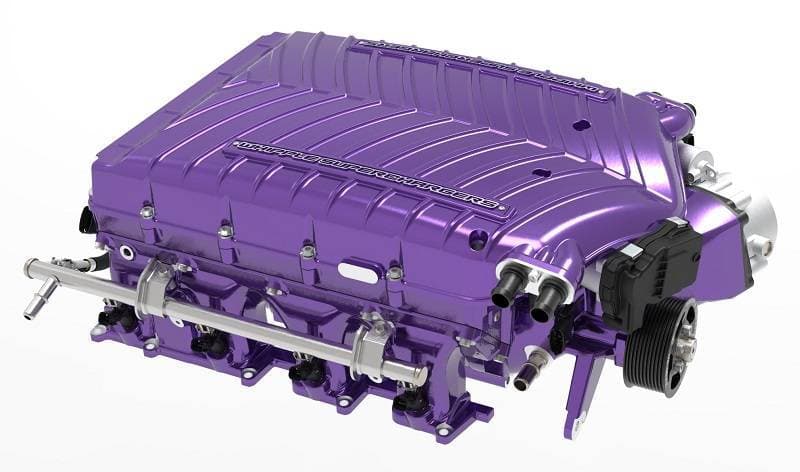

Custom colors available, standard color is Black.
