There are many options available for Whipple Supercharger kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.
These supercharger kits are the most complete available, including everything needed for installation, including the option to unlock your PCM. This includes all mounting brackets for the blower, pullies, belts, intercooler, all the tubing, piping, fittings and clamps and even oil for the self contained lubricating system. You do not need to make any major modifications or purchase special tools or other parts. Many customers install in their garage or driveway over a weekend.
These systems fit the gasoline 6.6L only, not diesel.
E93 Global A Service Tag #12692986 Most 2020-2023 vehicles
E93 Global B Service Tag #12731976 2023-2025 vehicles
50 STATE CARB LEGAL: EO D-231-106
**HP Tuners supports Global A/Global B E93 PCM, always verify PCM type prior to ordering
DETAILS:
Horsepower gain: 150+ horsepower gain at the wheels
Gen 6 3.0L supercharger head unit, 7-8 psi
Highly effective air-to-water intercooler
Fuel Pump Supplied?: Not Required
Fuel Injectors Supplied?: These trucks use the factory fuel system to maintain proper fuel levels at peak power
Computer/Ignition Mods?: Programming Supplied when option is selected
The most power per pound of boost on the market!
Easy and quick installation
System is 100% complete with OEM quality and appearance
Significantly outflows competitors 2.3L and 2.65L roots-type systems; Most Efficient Twin-Screw Supercharger On The Market
Complete With All Necessary Parts & Hardware For Installation
No Internal Modifications Required
50 State Legal CARB EO #D-231-79
TREperformance is an Authorized Installing Dealer of Whipple Superchargers.
Custom made and shipped direct from Whipple!
Contact us before ordering to verify current stock or ETA's.
Since 1987, Whipple Superchargers have been the pioneers and leaders of twin-screw supercharging. Whipple was the first to bring positive displacement technology to fuel injected, emissions legal GM applications. With over 34 years of GM twin-screw supercharging experience,

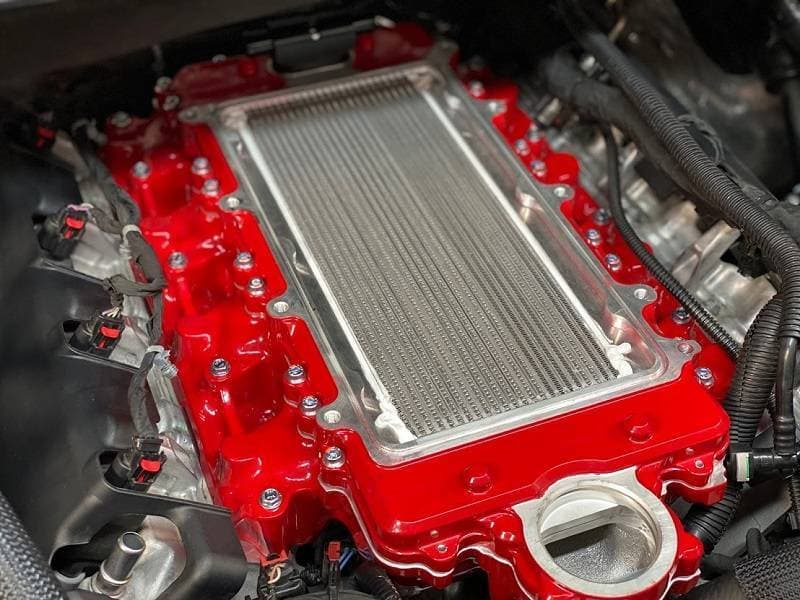

The all-new system features Whipple’s massive oversized air-to-water bar-and-plate intercooler with billet 6061-T6 tanks and super high density fins for unmatched cooling capacity. Combine the efficient intercooler design with the record breaking, championship winning, industry leading 5th generation 3.0L Whipple twin-screw supercharger. The unique intercooled bypass system offers better acceleration and less than 1hp of consumption during cruising for excellent fuel economy.
The system also includes a massive dual pass heat exchanger for incredible recovery time and consistent cool temps whether your daily driving, towing or racing through the mountain side. The new system also features an aluminum high flow intake manifold, high flow water system, billet idler plate and adjustable idler system. While others claim, Whipple Superchargers simply deliver more power per pound of boost than any other supercharger on the market today and continue to lead the industry with incredible innovative products. Kits come with HP Tuners RDT flash tool, VCM scanner for data logging and tire/axle adjustment.
Whipple Fuel System
These trucks use the factory fuel system to maintain proper fuel levels at peak power. A unique feature is the pre-casted injector bosses for future upgrades if needed.
Full System Specifications:
50 State Legal with CARB EO Sticker
No other upgrades required, just massive power right out of the box
Front entry Gen 6 (3.0 liters/3000cc) Whipple twin-screw supercharger that significantly outperforms competitions 2.3L and 2.65L roots-type systems

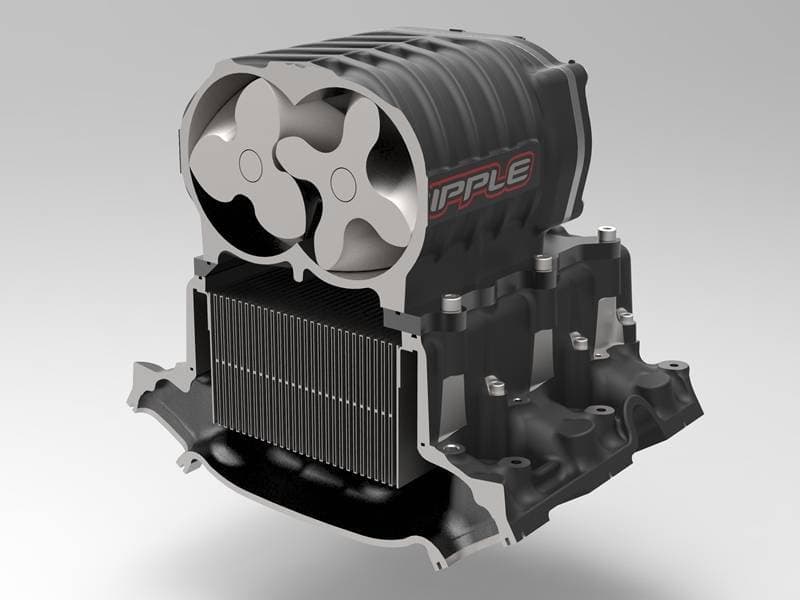

Gen 6 supercharger features new 3x4 rotor combination for increased RPM capacity, large diameter for increased airflow and small leak path, increased helix for optimal sealing
Oversized Crusher 112mm inlet for maximum airflow capacity and minimal rotor cavitation
Massive air-to-water aluminum bar-plate intercoolers offer more cooling than any other positive displacement system available, nothing comes close
High flow intercooler pump, nearly double the flow of the standard units others use
Whipple Superchargers massive oversized intercooled air-bypass system for industry leading reduction of burst knock and incredible fuel economy
Calibration included when selected for incredible power gains
Exclusive 3x4 rotor combo for significant increase in airflow
Extra plenum volume below intercooler core for far less pressure drop and better use of the increased surface area of the massive intercooler core
More boost at the "hit" than any other twin-screw
Flat torque curve for incredible acceleration
Largest dual pass heat exchanger on the market as standard for incredible intercooler water temps
Fits under factory hood with no modifications
No cutting or grinding on the engine block
No internal modifications required
Kits come complete with all necessary parts and hardware for installation
Plug and play wiring with male and female connections
Proven 6-rib belt system with adjustable idler system
OEM quick connect fittings for easy installation

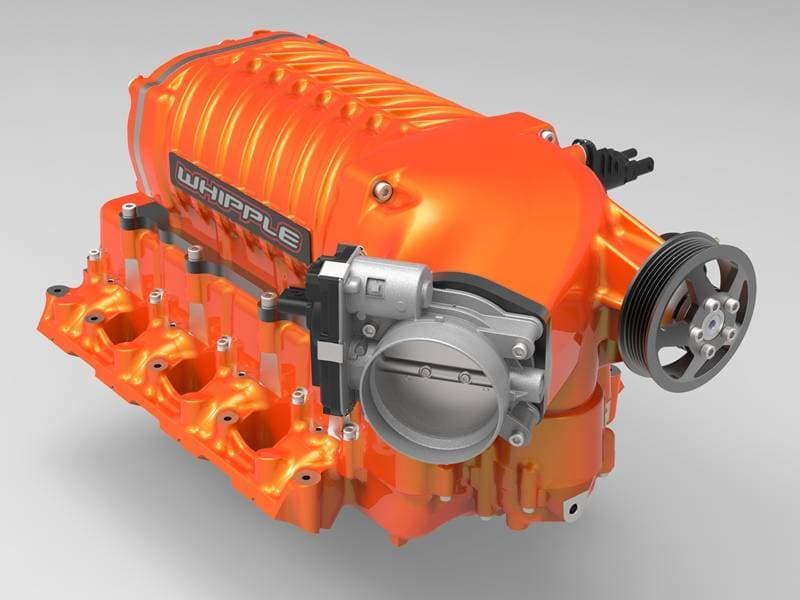

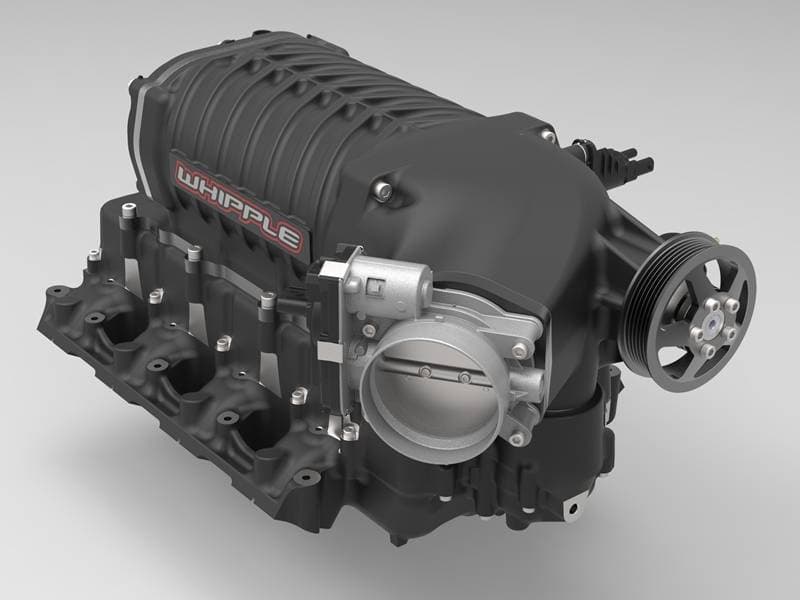

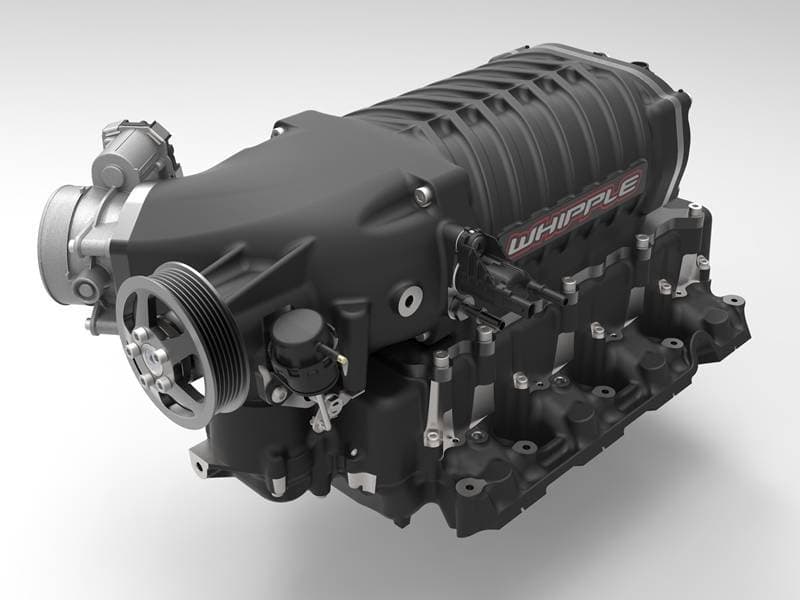

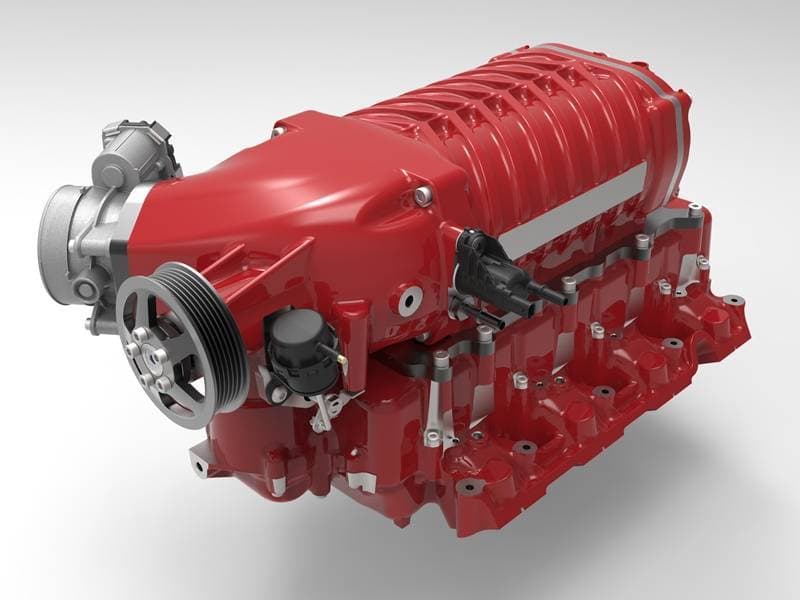

Available in wrinkle black, polish or any custom color
Instant boost at the touch of the throttle
3 minute pulley changes
Easy belt changes
Lightweight pocketed 6061 T6 billet aluminum SC pulley
