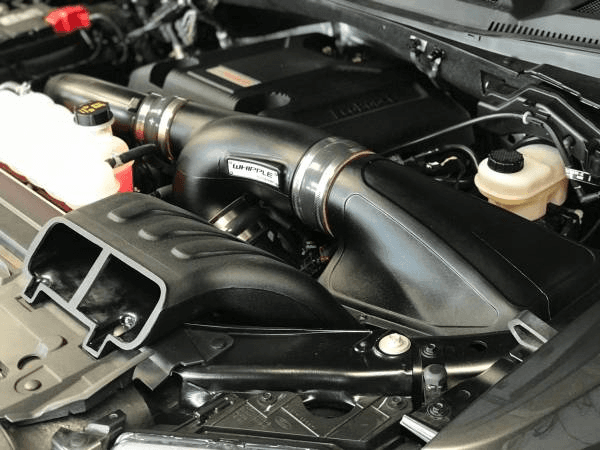

Whipple F-150 2018-2020 2.7L Ecoboost Stage 1 Intercooler Kit

Whipple, known for its industry leading upgrade systems and technological innovations, has now brought the same technology to the 2018-2020 2.7L V6 F150 with the Whipple Stage 1 system.

The stage 1 systems couples the Whipple Mega Cooler, roto molded high velocity cold air intake and industry leading custom calibration to make up to an amazing 125* foot pounds of torque and 60* horsepower more than stock. Even better, at 3500rpm, the system produces over 150 foot pounds of torque over stock giving more power under the curve for incredible throttle response.

The Whipple Monster Cooler offers 54% greater volume and 8% more surface area. The bar and plate type intercooler features offset fin on both the cold and hot side, allowing for increased cooling capacity while fitting into the stock packaging, yet significantly out performing the stock cooler. Test show a 90 degree (F) drop in temperature just on the dyno, yet even bigger gains are shown during real world applications. The colder air allows increased spark advance and more O2 to the engine, resulting in more power while maintaining safety.

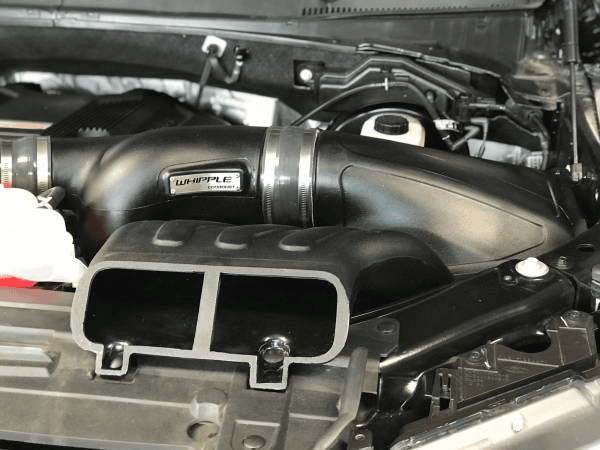

The Whipple high velocity air intake system boast the CAD driven, CFD modeled rotor molded plastic air intake that maximizes air speed while reducing inlet restrictions. The air system features the velocity stack gauze those filter with extra wide pleats, giving the air filter the capacity to flow over 132% more air than a stock paper filter.

Note: This system is 50-state legal, CARB EO # D-231-64

HP Gain: 100 wheel horsepower gain and 125 foot pounds over stock! (on 93 octane)

*Stage One kit helps maintain horsepower gains and keep IATs low with its large intercooler especially when hard driving or road racing.

Whipple's Superior Engineering

The Stage 1 system heart and soul is the industry leading calibration. Whipple and it's Ford calibration team worked feverishly using advanced tools to develop a calibration that could maximize power while being legal and safe at the same time. After countless dyno and real world testing in multiple environments, the engineers were able to extract massive levels of torque and horsepower yet maintaining factory type safety settings. Each system features the Whipple RDT flash tool that allows easy uploading and downloading of the custom files. The RDT also features read and erase trouble codes, live data and data logging capacity.

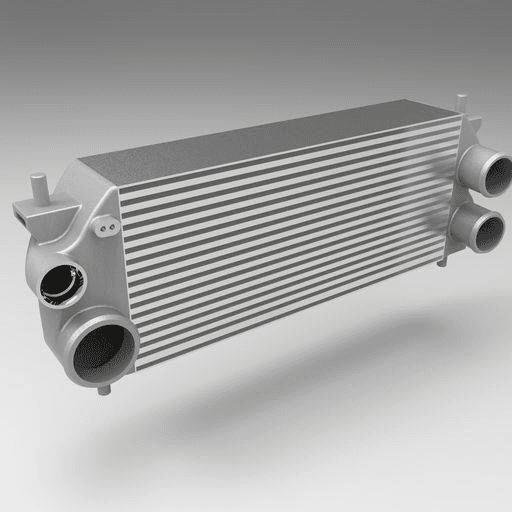

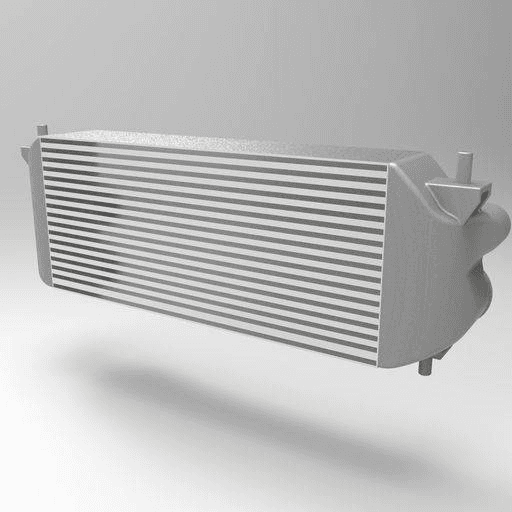

Whipple engineers developed the largest, most efficient intercooler avaiable that requires zero modifications to the vehicle. Using advanced CFD modeling, the Whipple Mega Cooler significantly outflows the stock intercooler while offering significantly cooler air. The bar and plate type intercooler features offset airfin with 16 fins per inch, creating increased cooling with low pressure drop.

The Mega Cooler is 21" x 9.2" x 4.5", 193.2 square inches of surface area and 54% greature volume then the stock unit.

Exclusive Features:
130TRQ/60HP* peak gain over stock using 93 octane.
Over 150* foot pounds of torque increase under the curve.
Massive Mega Cooler featuring 54% greater volume then stock intercooler.
Heavy duty bar-plate designed intercooler.
Offset 14FPI on cold airflow side of intercooler.
High velocity cold air intake system for unmatched airflow.
Bolt-on performance, no modifications required.
Advanced PCM calibration using factory tools for uncomparable drive-ability and performance.
91 or higher octane fuel compatible.
Powder coated heat shield.
Unique induction whine from Whipple intake system.
Zero cutting or modifying vehicle.
Complete kit.

Installation Time: 2.25 hours
