DETAILS
ATI Y-body ('Vette) 8 Rib Damper, OE Diameter
Heavy Duty Gates Belt Tensioners
Standard Internal Fan 170 Amp 1 Wire or GM 2 Pin Late Model Powermaster Alternator (Upgrade to 225 Amp Available)
OE LSA / LS3 Water Pump
Dedicated 8 rib supercharger belt

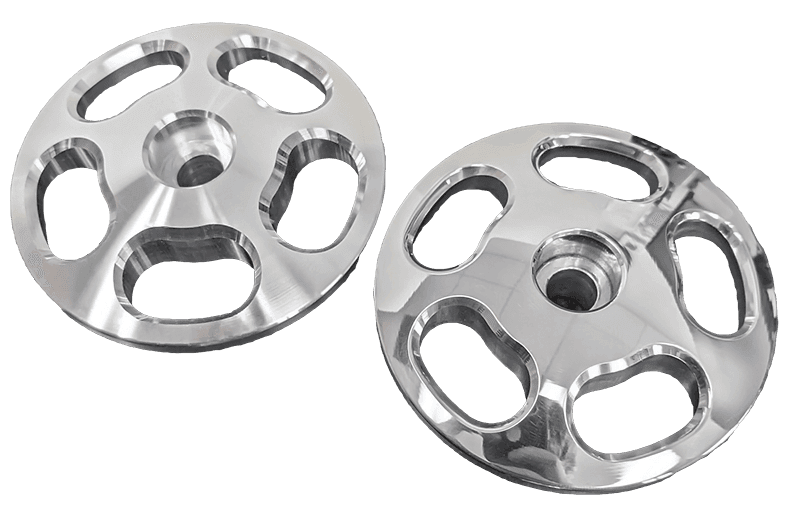

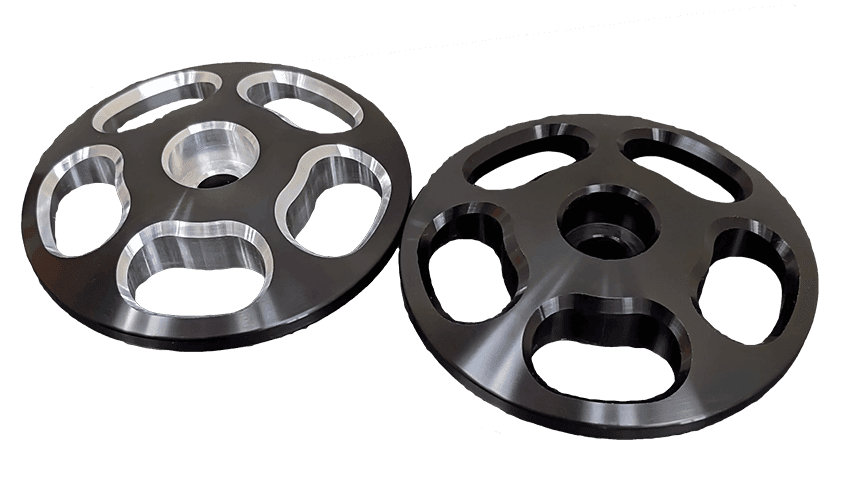

CAD designed and CNC machined billet aluminum brackets and pulleys for maximum rigidity
Eliminates component flex in high-performance applications
Complete belt wrap with an extra idler pulley for NO slip operation
Internal fan alternator to cool better and allow more RPM
Multiple blower pulley ratios depending on boost requirements
All necessary Wegner Automotive precision brackets, Pulleys, and Stainless-Steel Mounting Hardware
Note: Kit is set up for GM style 90mm or 102mm DBW throttle body. Throttle body, injectors, fuel pump, heat exchanger, and reservoir not included.
COMPATIBLE UPGRADES
Option to add a Whipple Head Unit available
Multiple finish options are also available
