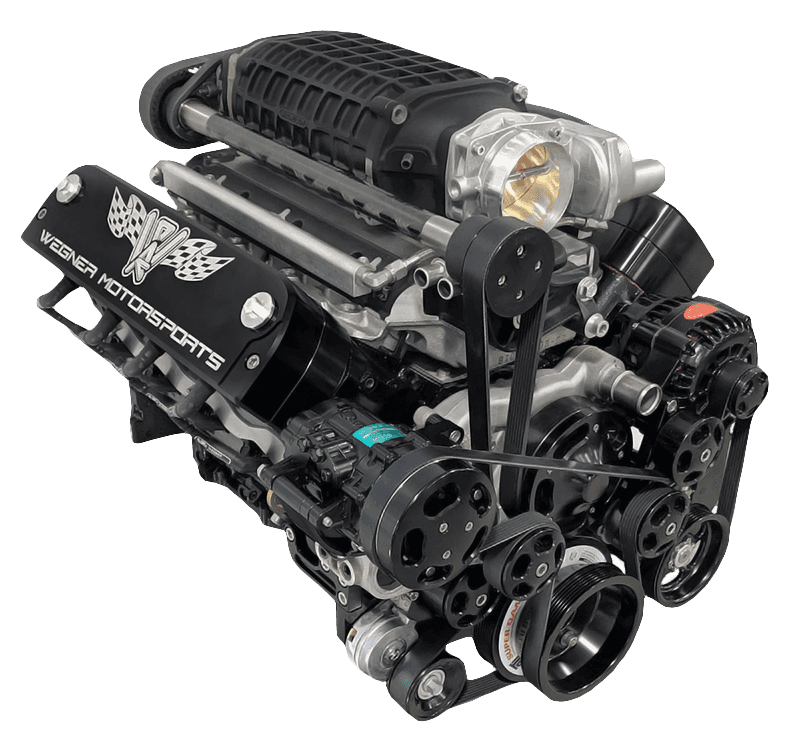

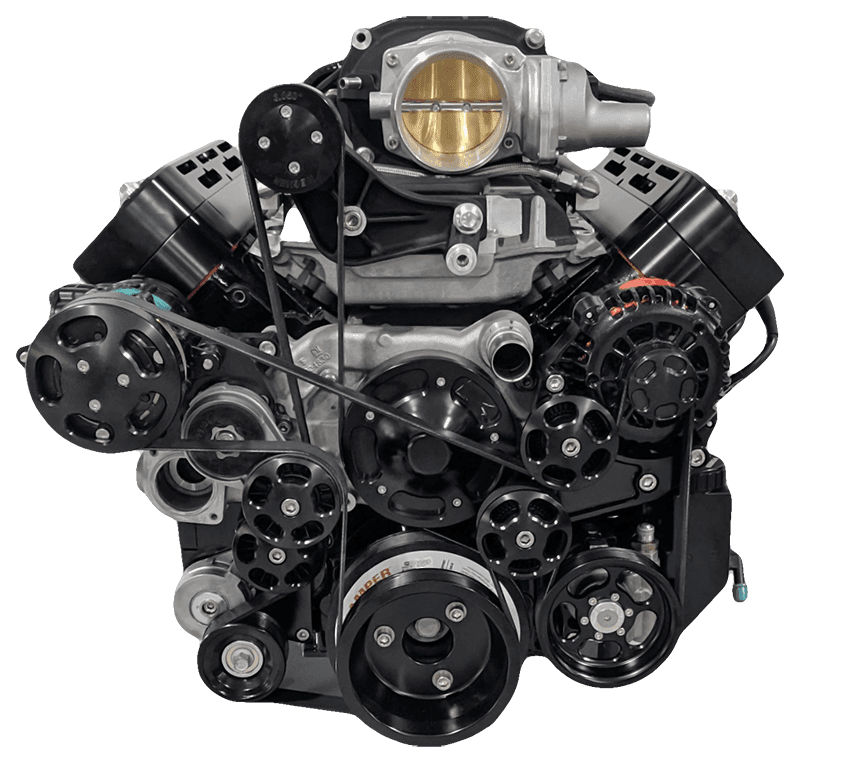

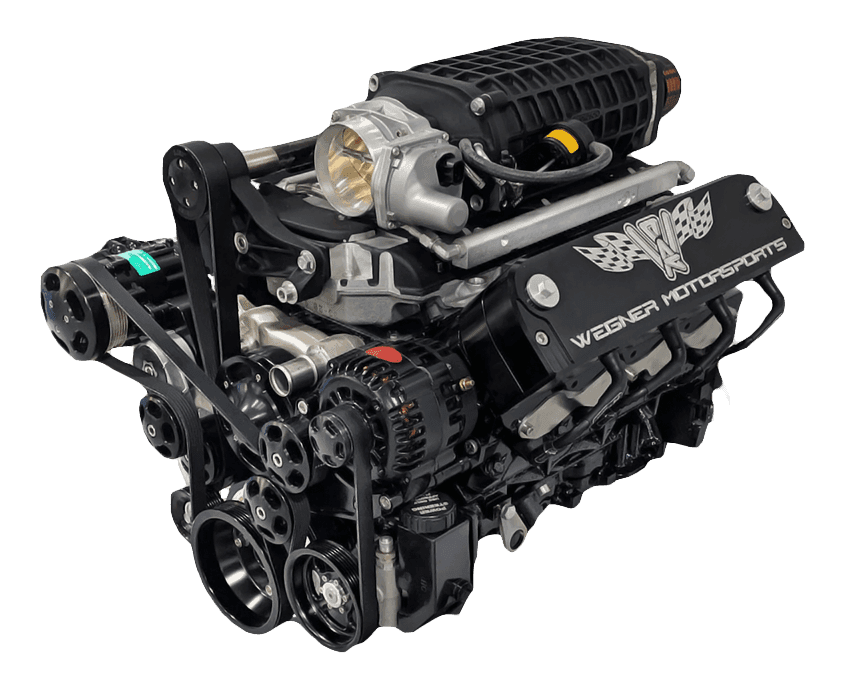

This is the Wegner 8 Rib Serpentine Drive System for Magnuson 2300 Supercharged Chevy Corvette LS engines with Power Steering, Alternator, and Water Pump. Magnuson's 'Hot Rod' TVS 2300 Supercharger aims to retain factory-like drivability while drastically increasing the performance of your vehicle. Features include an integrated bypass valve and internal liquid-to-air intercooler to keep intake air temps in check. The supercharger is coupled with our WAK041 accessory drive kit. Each kit comes complete with new accessories, belts, billet brackets, pulleys, and stainless mounting hardware. Multiple pulley options are available to help you achieve the power level that suits you best. The Magnuson TVS 2300 with a Wegner accessory drive will support up to 900 horsepower.
Magnuson's 'Hot Rod' TVS 2300 Supercharger aims to retain factory-like drivability while drastically increasing the performance of your vehicle. Features include an integrated bypass valve and internal liquid-to-air intercooler to keep intake air temps in check. When paired with a Wegner accessory drive, the system will support up to 900 horsepower.
The base price is for the accessories and mounting brackets only. Use the blue "Choose Product Options" to add the Magnuson TVS 2300 supercharger and select other optional upgrades.
DETAILS
ATI Y-body (Vette) 8 rib Damper- OE diameter or 12% overdrive
Heavy Duty Gates Belt Tensioners
Standard Internal Fan 170 Amp 1 Wire or GM 2 pin Late Model PowerMaster Alternator
(Optional Upgrade: PowerMaster 225 Amp Internal Fan 1 Wire Alternator, installed on same bracket, longer belt)
PSC GM Type 2 Power Steering Pump with or without attached reservoir
OE LSA /LS3 Water Pump
Dedicated 8 rib supercharger belt

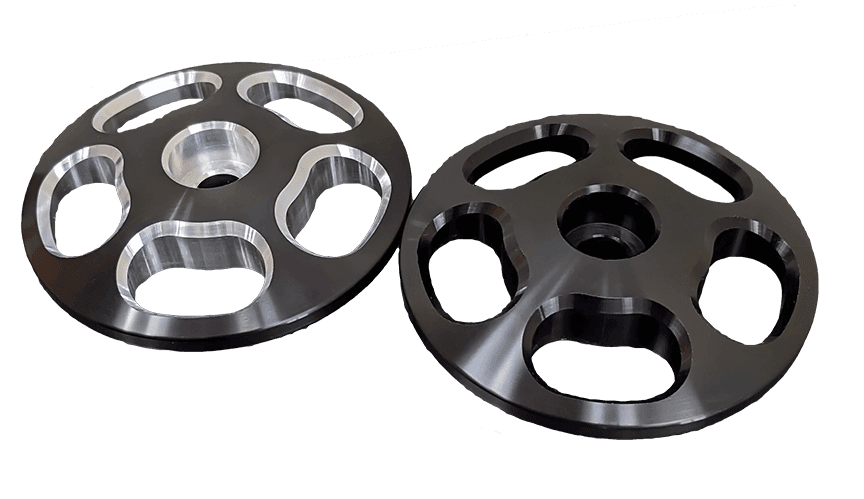

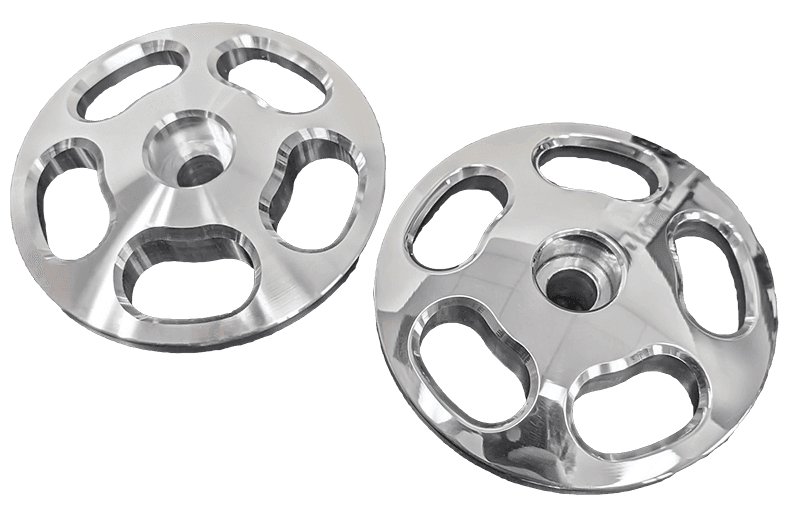

CAD designed and CNC machined billet aluminum brackets and pulleys for maximum rigidity
Eliminates component flex in high-performance applications
Complete belt wrap with an extra idler pulley for NO slip operation
Internal fan alternator to cool better and allow more RPM
Multiple blower pulley ratios depending on boost requirements
All necessary Wegner Automotive precision brackets, Pulleys, and Stainless-Steel Mounting Hardware
Note: Kit is set up for GM style 90mm or 102mm DBW throttle body. Throttle body, injectors, pump, heat exchanger, and reservoir not included.
COMPATIBLE UPGRADES
Option to add a Magnuson Head Unit available
Multiple finish options are also available
