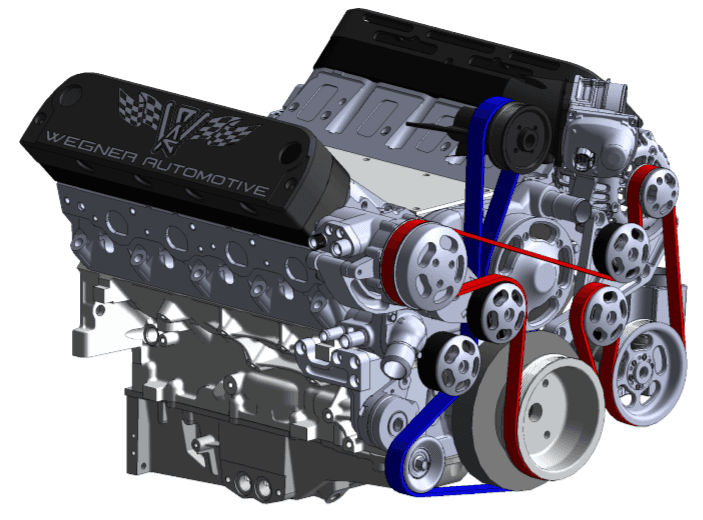

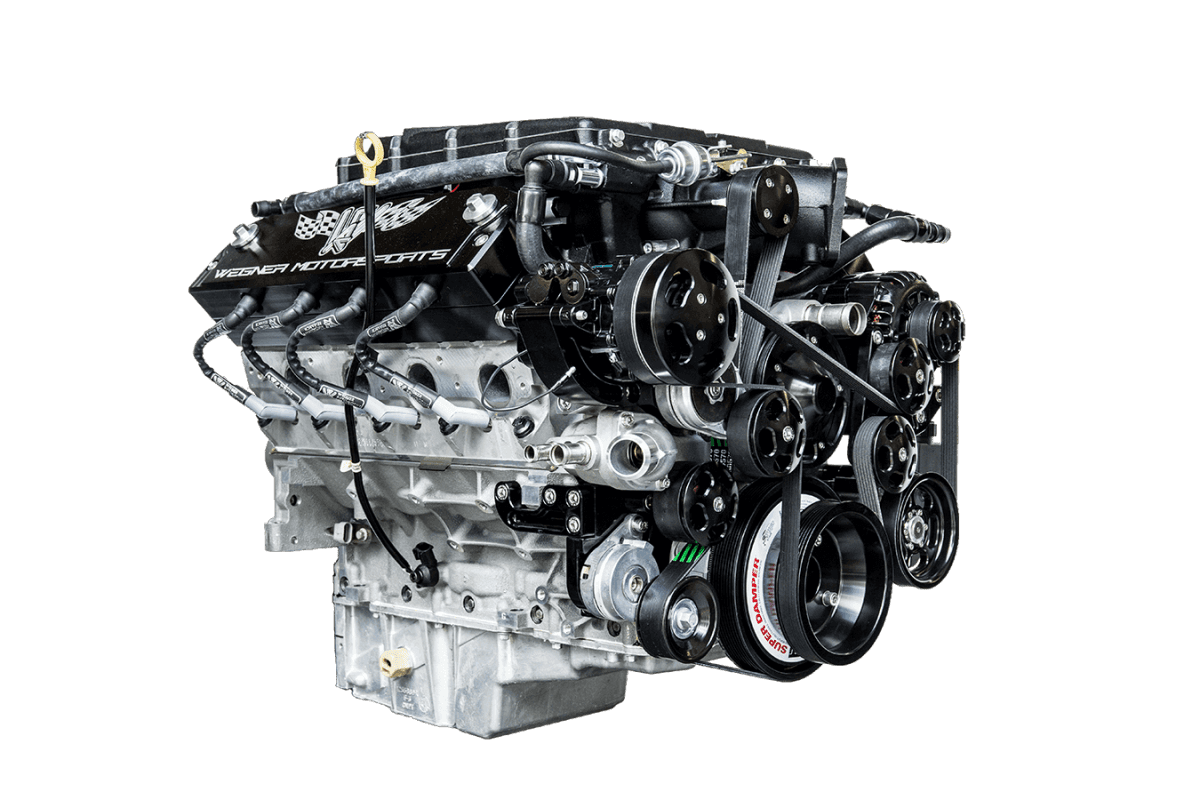

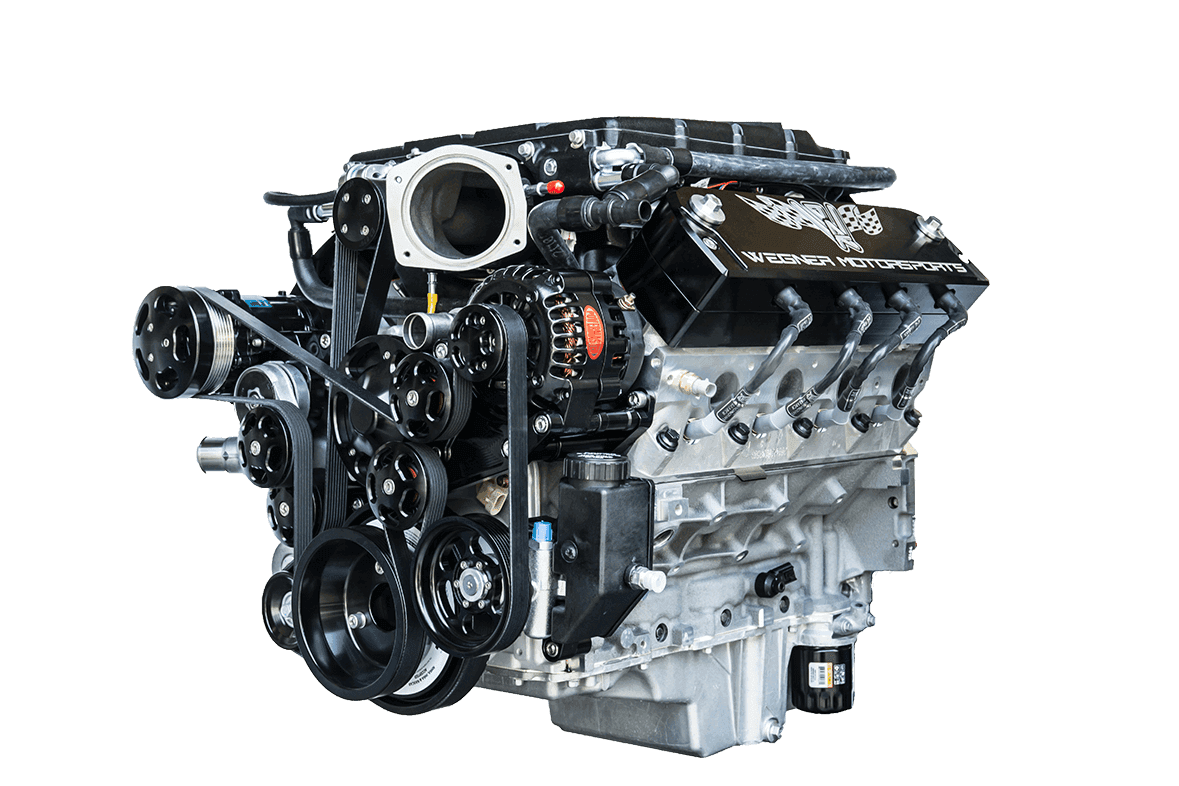

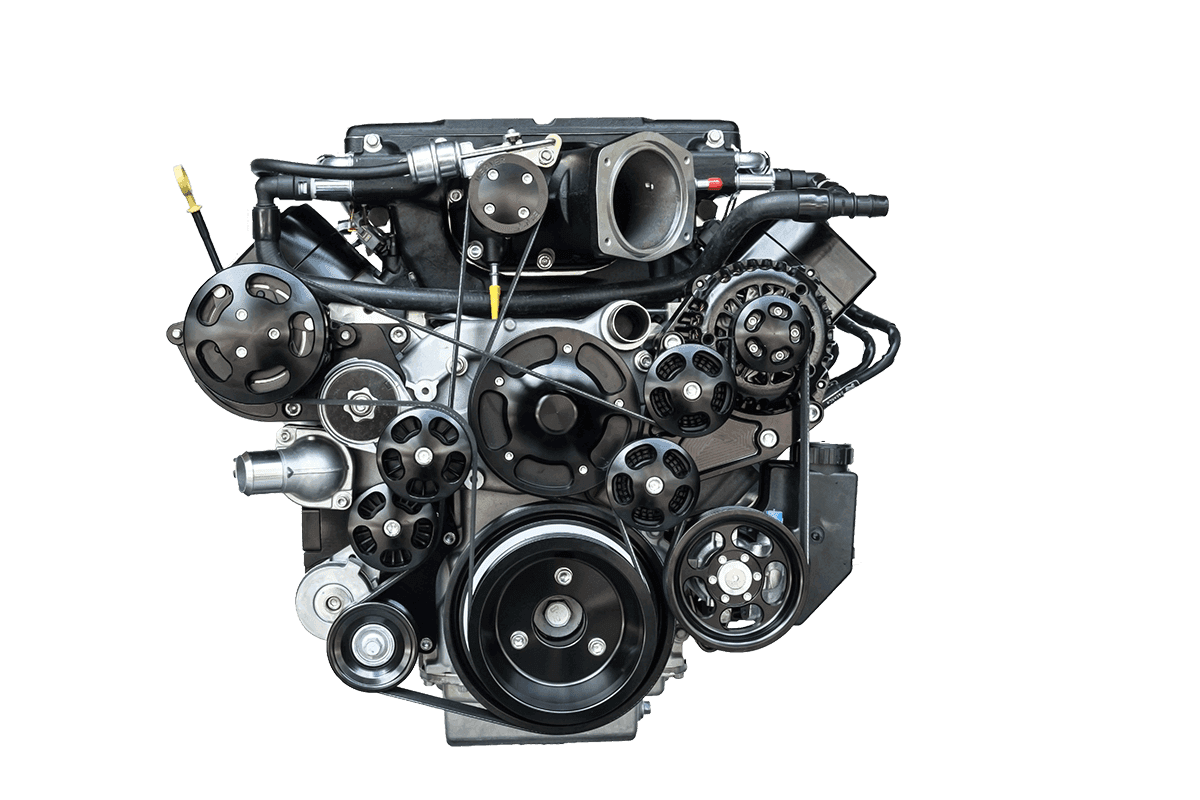

This is the Wegner 8 Rib Serpentine Drive System for Edelbrock Eaton Gen VI 2300 TVS Supercharged Chevy Corvette LS engines with Power Steering and Water Pump. The supercharger's low, flat-top allows it to work in most applications where the stock hood is retained. The kit comes with the Wegner WAK042 front accessory drive kit, complete with all front accessories, belts, pulleys, and brackets. This bolt-on kit will support up to 800 horsepower! Be sure your supercharger is built for the Corvette beltline, as this kit was designed utilizing the Corvette belt alignment.
Edelbrock's E-Force TVS 2300 supercharger is ideal for those who want to boost their car's performance but have limited hood clearance. The supercharger's low, flat-top allows it to work in most applications where the stock hood is retained.
The base price is for the accessories and mounting brackets only. Use the blue "Choose Product Options" to add the Eaton Gen VI 2300 TVS supercharger and select other optional upgrades.
DETAILS
ATI Y-body (Corvette) 8 rib Damper- OE diameter, 3% OD, or 12% OD
Heavy Duty Gates Belt Tensioners
Standard Internal Fan 170 Amp 1 Wire or GM 2 pin Late Model PowerMaster Alternator (Upgrades Available)
PSC GM Type 2 Power Steering Pump with or without attached reservoir
OE LSA /LS3Water Pump
Max pulley belt wrap for NO slip, extra idler pulley to give power steering complete wrap
Multiple blower pulley ratios depending on boost requirements
Internal fan alternator cools better while also allowing for more RPM vs. external fans which are prone to bending
Dedicated 8 rib Supercharger belt
Alternator, AC, & Power Steering are on separate 6 rib belt

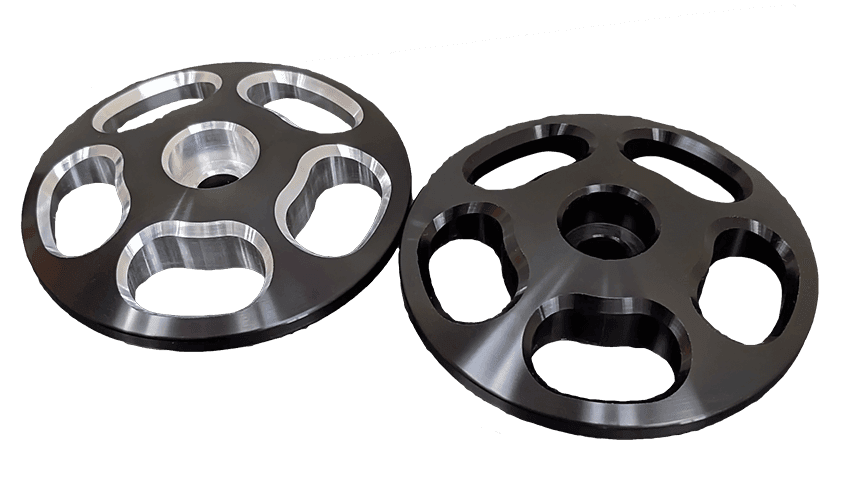

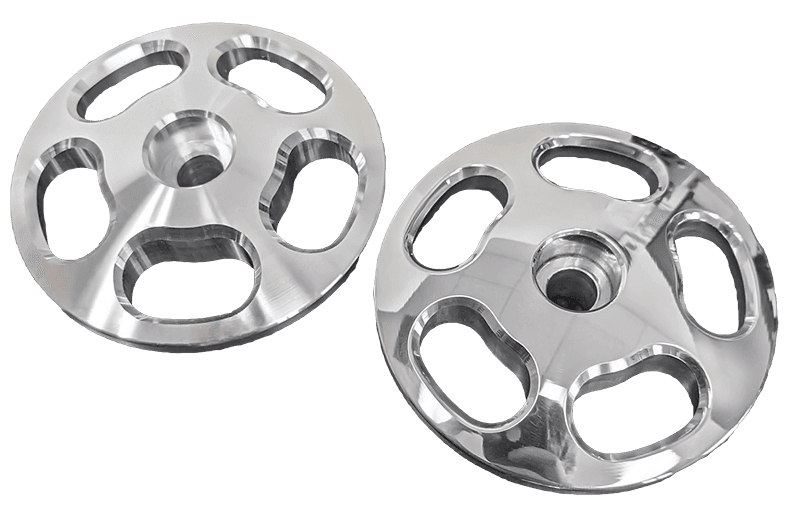

CAD designed & CNC machined brackets & pulleys
Note: Injectors, pump, heat exchanger, and reservoir not included
COMPATIBLE UPGRADES
Option to add an Edelbrock Head Unit available
Multiple finish options are also available
