HOME / PRODUCT / Wegner 10 Rib Serpentine Drive System For Camaro LS Using Magnuson TVS2650 Supercharger - Alternator AC PS and WP

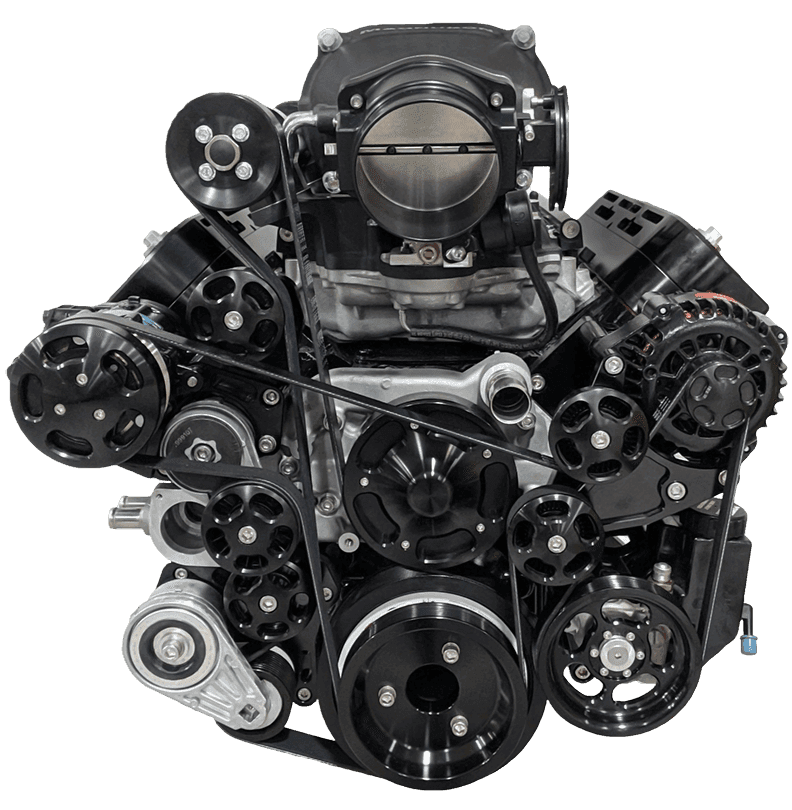

Wegner 10 Rib Serpentine Drive System For Camaro LS Using Magnuson TVS2650 Supercharger - Alternator AC PS and WP

Wegner 10 Rib Serpentine Drive System For Camaro LS Using Magnuson TVS2650 Supercharger - Alternator AC PS and WP

SKU: WAK074
$4,200.00
Loading options…

Description

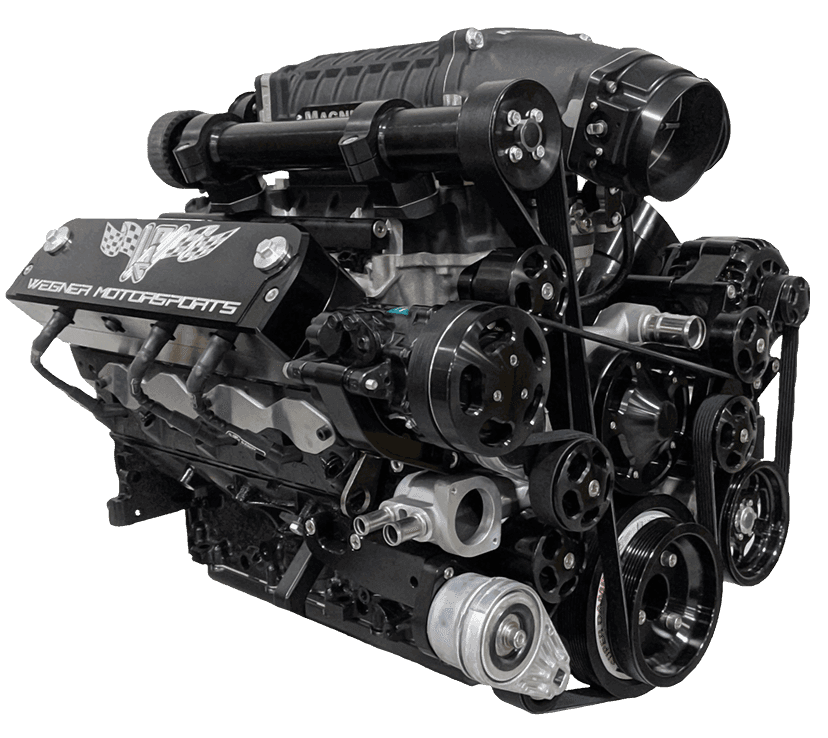

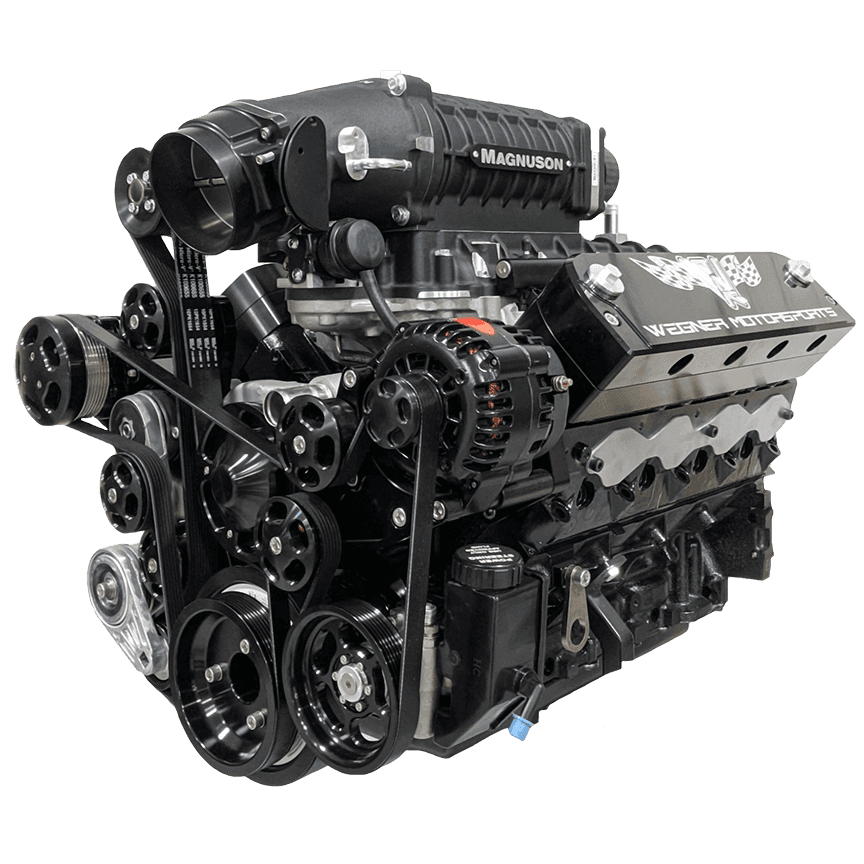

This is the Wegner 10 Rib Serpentine Drive System for Magnuson TVS 2650 Supercharged Chevy Camaro LS engines with Air Conditioning, Power Steering, Alternator, and Water Pump. Each kit comes complete with new accessories, belts, billet brackets, pulleys, and stainless mounting hardware. Multiple pulley options are available to help you achieve the power level that suits you best. Be sure your supercharger is built for the Camaro beltline, as this kit was designed utilizing the Camaro belt alignment.

Magnuson's TVS 2650 Supercharger features an internal air-to-water intercooler, carbon fiber jackshaft, multiple throttle body options, and runs on a dedicated 10 rib supercharger belt. When paired with this Wegner accessory drive, the system will support up to +1000 horsepower.

The base price is for the accessories and mounting brackets only. Use the blue "Choose Product Options" to add the Magnuson TVS 2650 supercharger and select other optional upgrades.

DETAILS
ATI Z-body (Camaro) 10 rib Damper- OE diameter OR 9% OD
Heavy Duty Gates Belt Tensioners
Standard Internal Fan 170 Amp 1 Wire or GM 2 pin Late Model PowerMaster Alternator
(Optional Upgrade: PowerMaster 225 Amp Internal Fan 1 Wire Alternator, installed on same bracket, longer belt)
PSC GM Type 2 Power Steering Pump with or without attached reservoir
OE LSA /LS3Water Pump
OE Sanden SD7 AC Compressor
Dedicated 10 rib supercharger belt

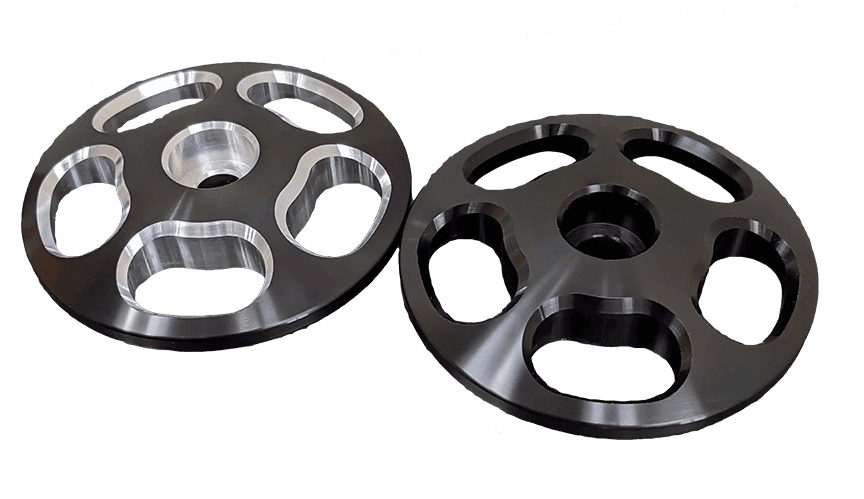

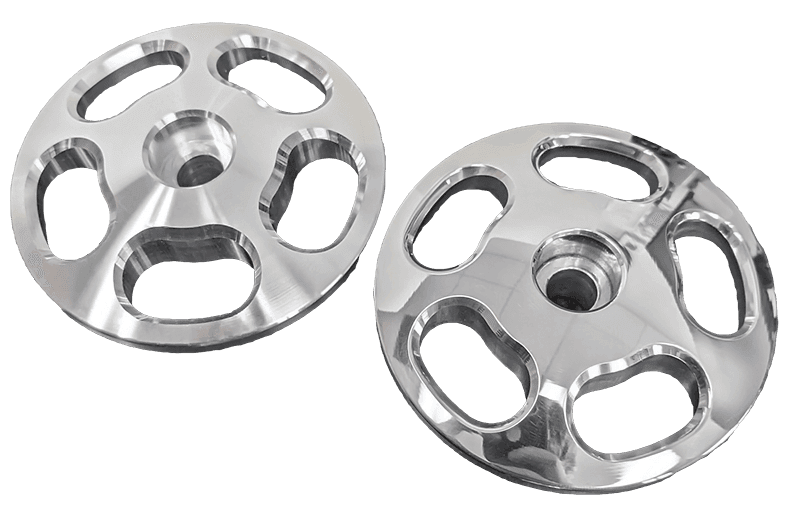

CAD designed and CNC machined billet aluminum brackets and pulleys for maximum rigidity
Eliminates component flex in high-performance applications
Complete belt wrap with an extra idler pulley for NO slip operation
Internal fan alternator to cool better and allow more RPM
Multiple blower pulley ratios depending on boost requirements
All necessary Wegner Automotive precision brackets, Pulleys, and Stainless-Steel Mounting Hardware

Note: Injectors, pump, heat exchanger, and reservoir not included

COMPATIBLE UPGRADES
Option to add a Magnuson Head Unit available
Multiple finish options are also available

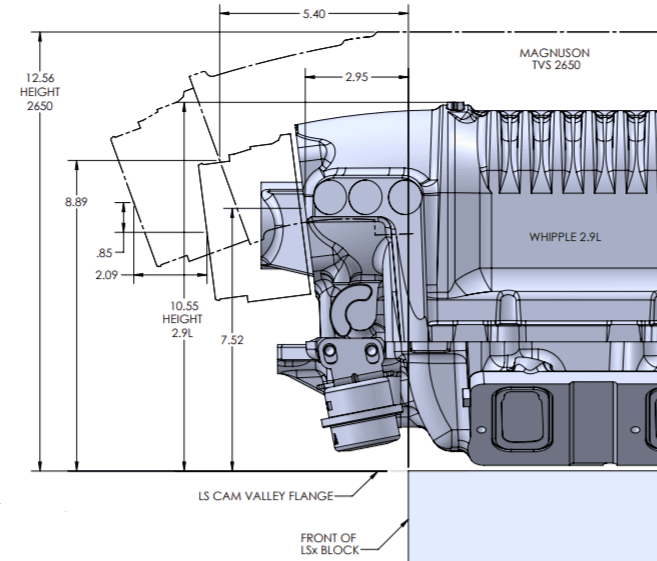

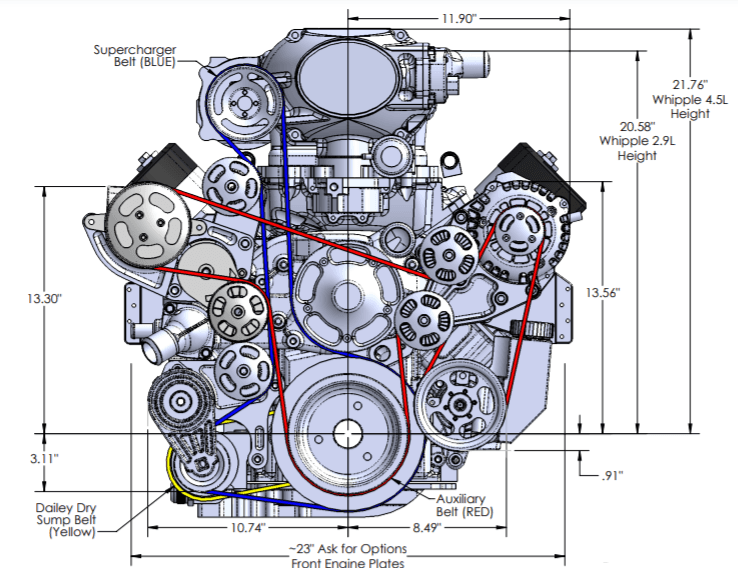

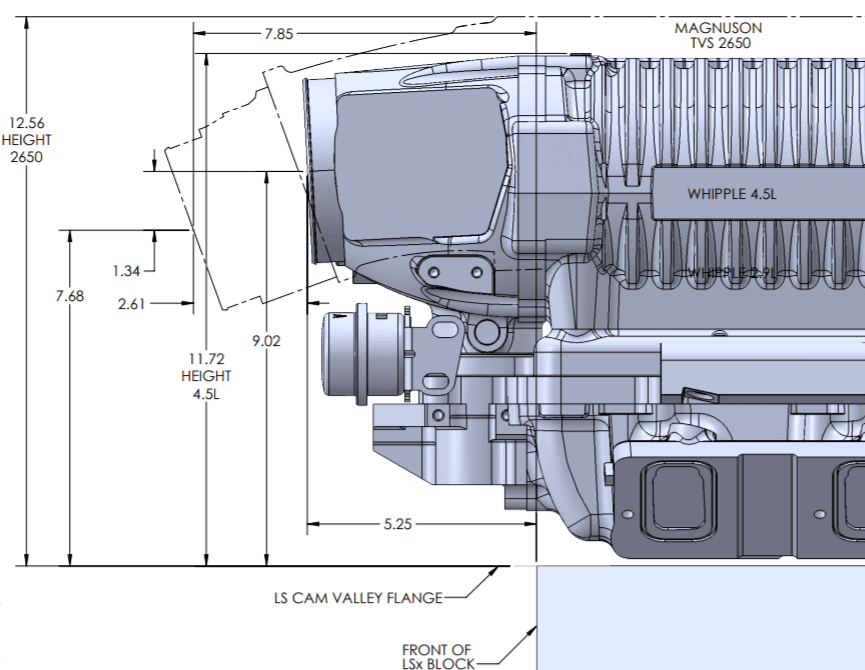

CAD Spec Sheets
