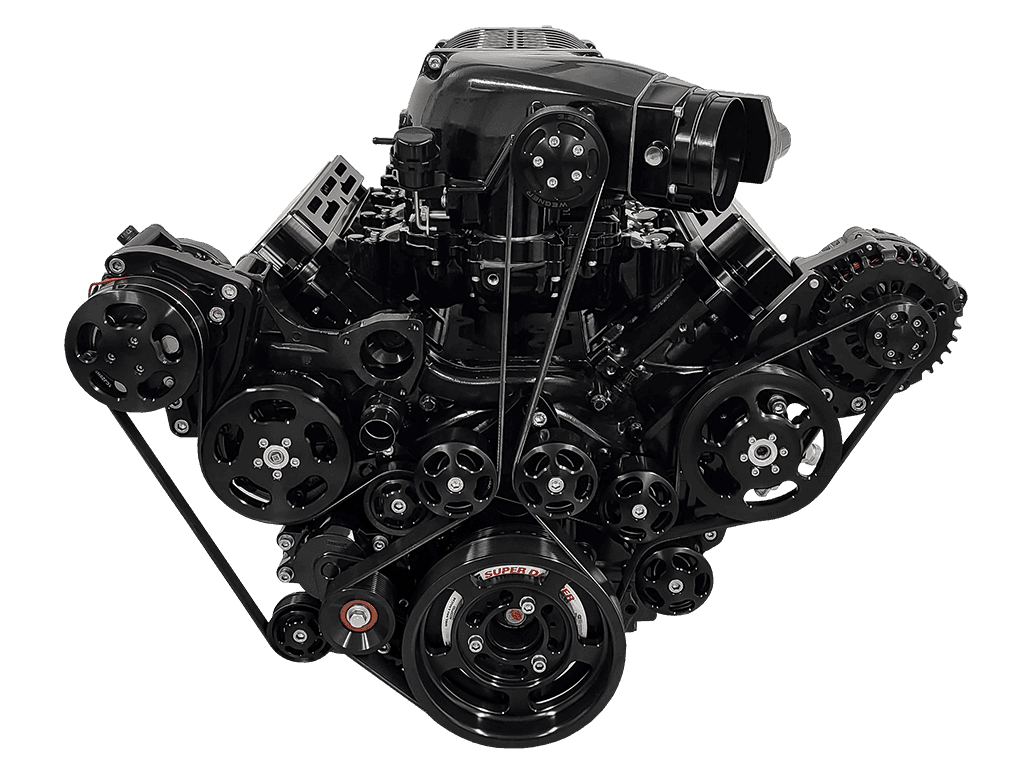

Wegner 10 Rib LT4 FEAD System For Whipple 3.0L Supercharger With Alternator, AC, PS and WP - LT4 Belt Line (Wetsump)

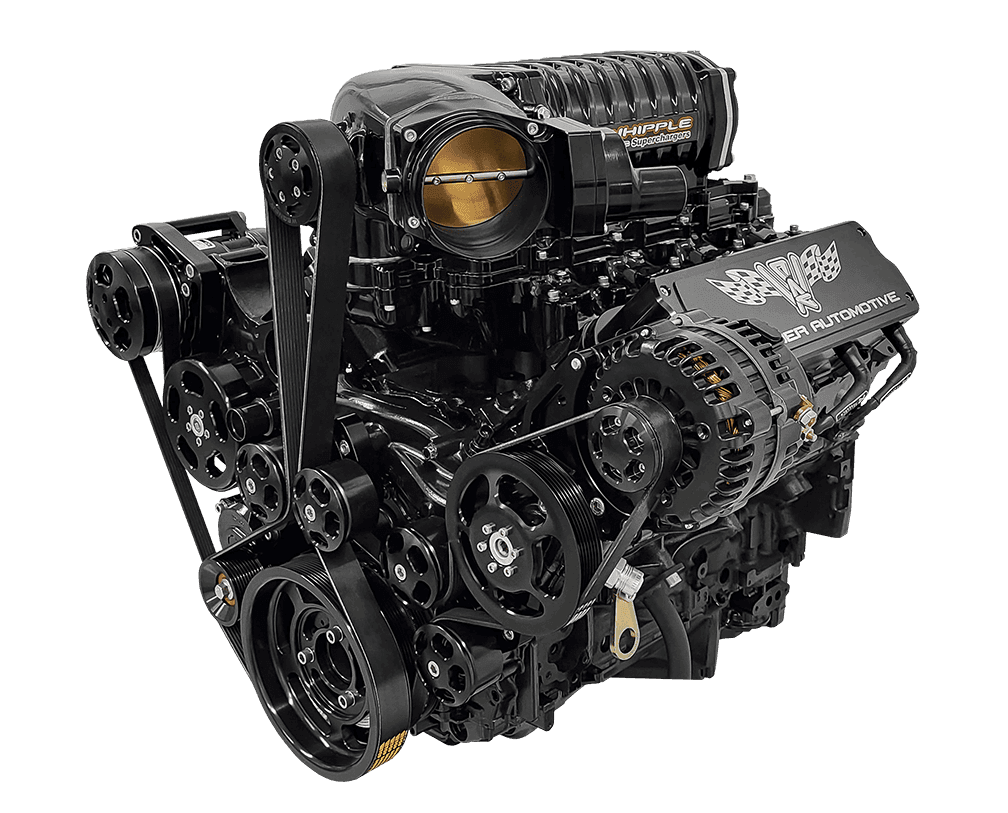

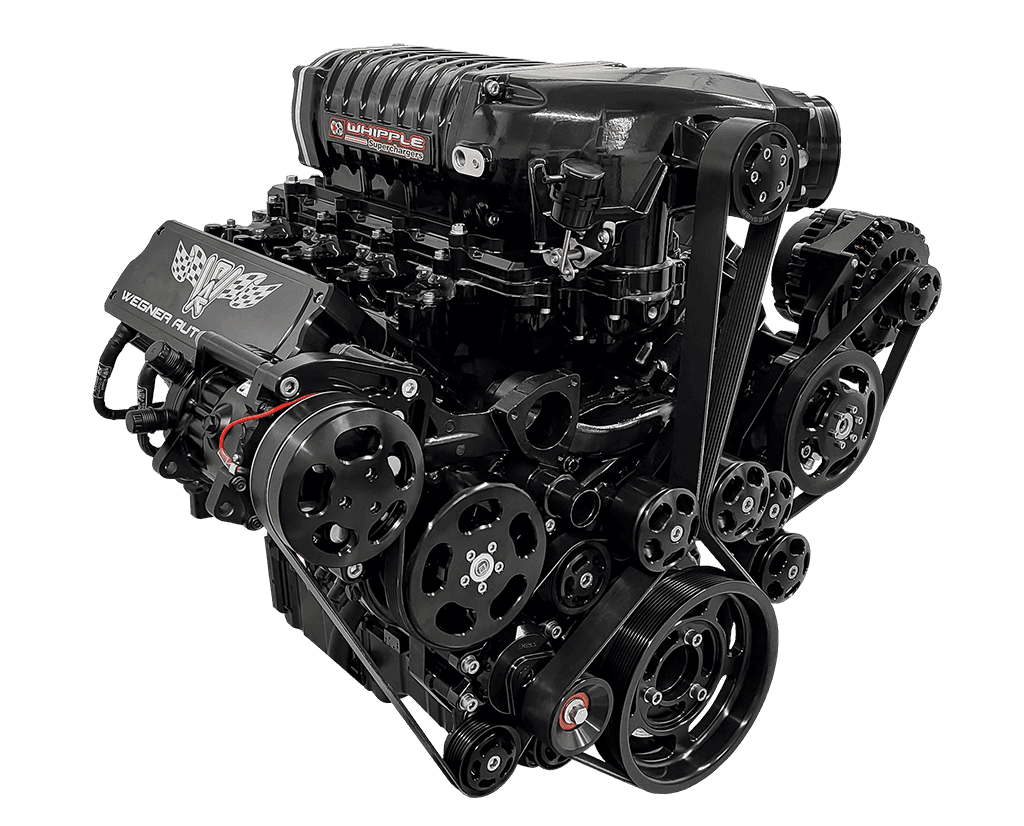

This is the Wegner 10 Rib Serpentine Drive System for Whipple 3.0L Supercharged LT4 6.2L Engines with Truck Style Inlet with Air Conditioning, Power Steering, Alternator, and Water Pump. The WAK067 LT4 Front Accessory Drive is Wegner's most popular kit for supercharged LT4 engines. This creates a wide powerband, making peak horsepower when paired with a Whipple 3.0L Supercharger.

Each pulley kit is expertly engineered and dyno-tested in-house for high-horsepower street use. Be sure your supercharger is built for the LT4 Truck beltline as this kit was designed utilizing the LT4 Truck belt alignment.

The base price is for the accessories and mounting brackets only. Use the blue "Choose Product Options" to add the Whipple 3.0L supercharger and select other optional upgrades.

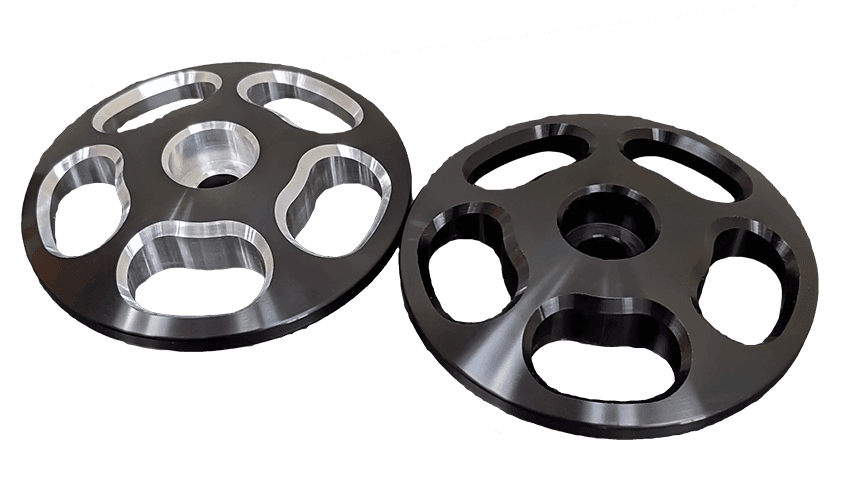

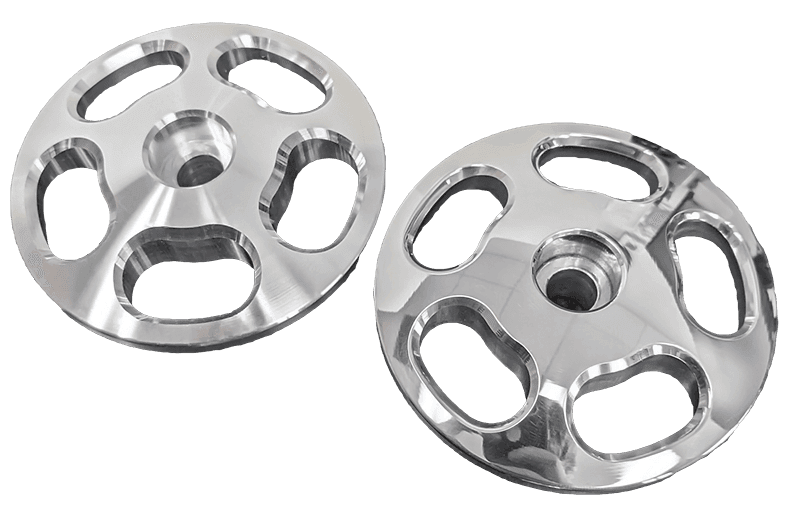

CNC Machined billet aluminum brackets and pulleys, CAD designed for maximum rigidity to eliminate component flex in high horsepower applications. Complete belt wrap with an extra idler pulley for NO slip operation An independent 10 rib belt drive for the supercharger, separate from all accessories.

Features:
ATI Racing Super Damper w/10 Rib Crank Pulley
Heavy Duty OEM Tensioners and Gates Belts
Standard 170 Amp Single Wire or GM 2 Pin Alternator
GM Type 2 Power Steering Pump with -6 and -10 AN Fittings
SD7 A/C Compressor
OEM GM Water Pump
All necessary Wegner Automotive precision CNC Machined Billet brackets, Pulleys, and Stainless-Steel Mounting Hardware

Note: Throttle body, injectors, fuel pump, heat exchanger, and reservoirs not included.

Whats In The Box:
GM OEM LT Water Pump
Power Master Alt. 170 AMP Standard (ALT Upgrades Available)
Power Steering Pump
TCCI A/C Compressor
ATI Racing Super Damper W/ 10 Rib Crank Drive Pulley
Heavy Duty Gates Tensioner
Stainless Hardware
Wegner Automotive CNC Machined Billet Brackets / Pulleys
Independent 10 Rib Belt For Supercharger W/ 6 Rib Accessory Belts

Compatible Upgrades:
Option to add a Whipple Head Unit available
Multiple finish options are also available
