DETAILS

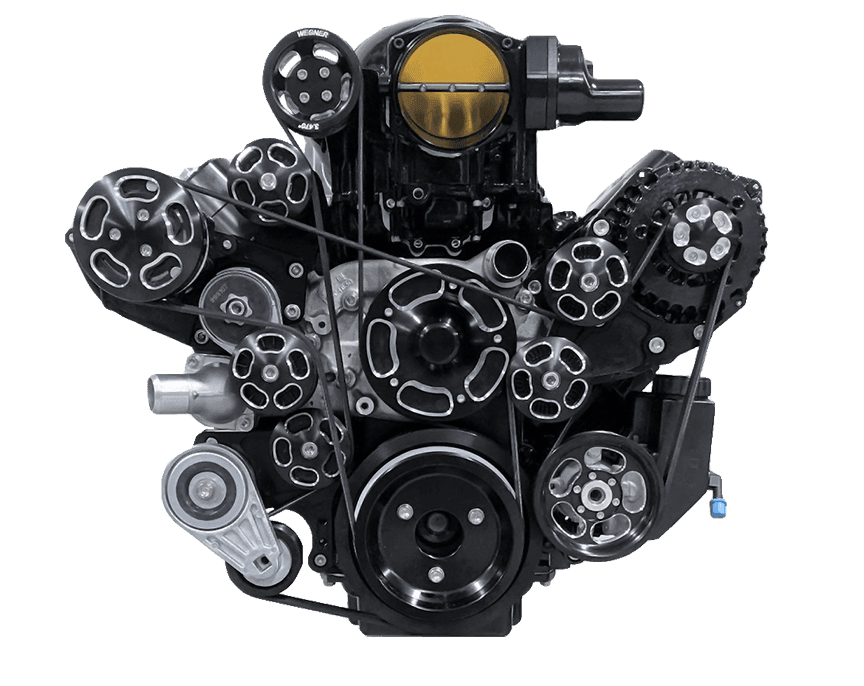

ATI Z-body (Camaro) 10 Rib Damper, OE Diameter or 9% OD
Heavy Duty Gates Belt Tensioners
Standard Internal Fan 170 Amp 1 Wire or GM 2 pin Late Model Powermaster Alternator (Upgrade to 225)
PSC GM Type 2 Power Steering Pump
OE LSA / LS3 Water Pump
Dedicated 10 rib supercharger belt

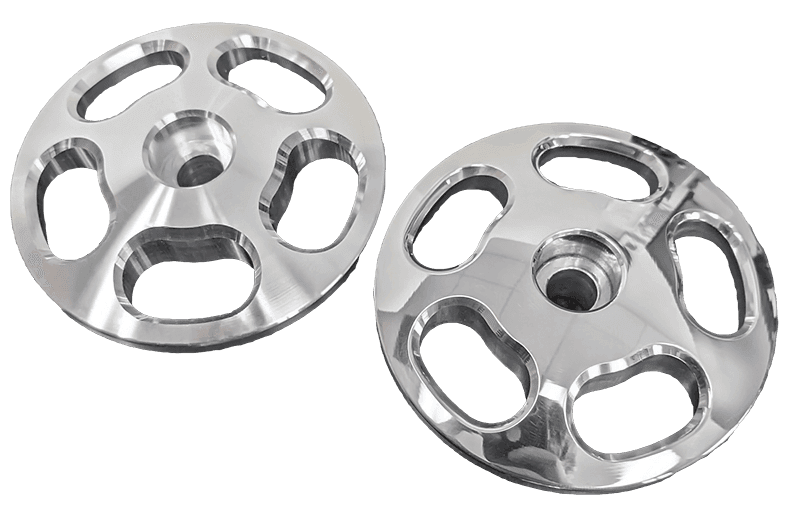

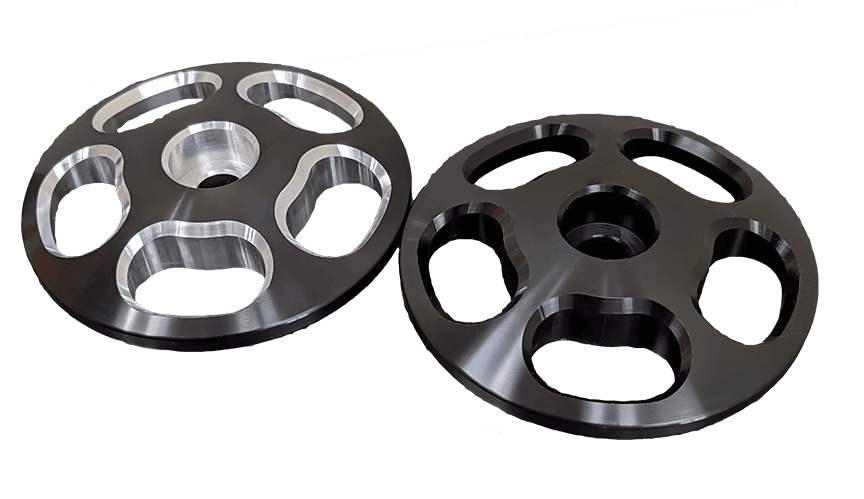

CAD designed and CNC machined billet aluminum brackets and pulleys for maximum rigidity
Eliminates component flex in high-performance applications

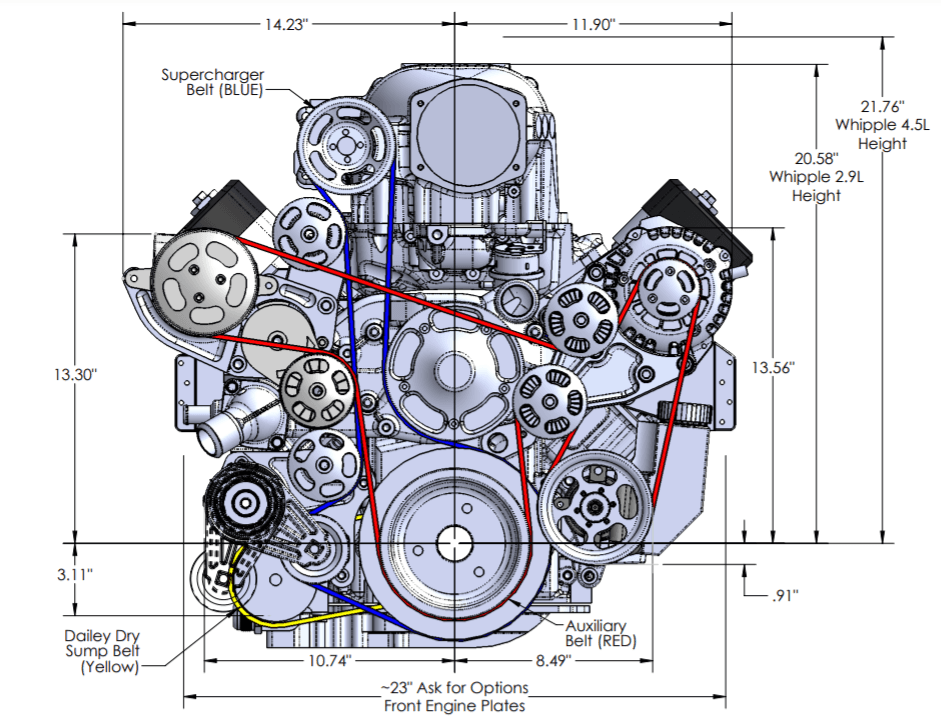

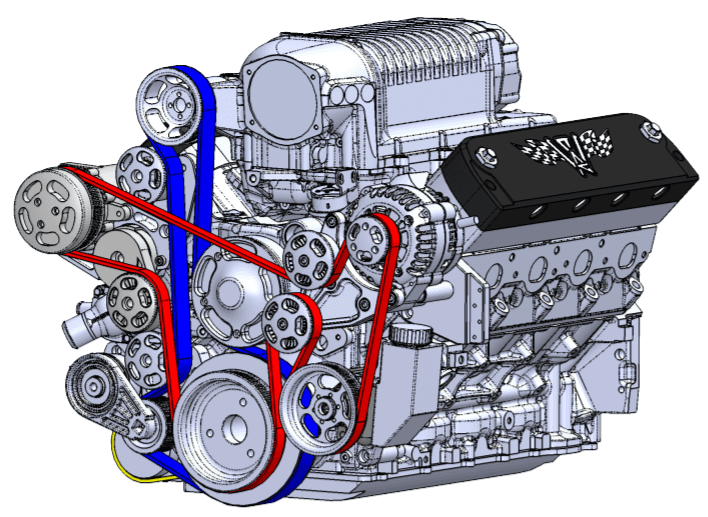

Complete belt wrap with an extra idler pulley for NO slip operation
Internal fan alternator to cool better and allow more RPM
Multiple blower pulley ratios depending on boost requirements
All necessary Wegner Automotive precision brackets, Pulleys, and Stainless-Steel Mounting Hardware
Note: Throttle body, injectors, fuel pump, heat exchanger, and reservoir not included.
COMPATIBLE UPGRADES
Option to add a Whipple Head Unit available
Multiple finish options are also available
