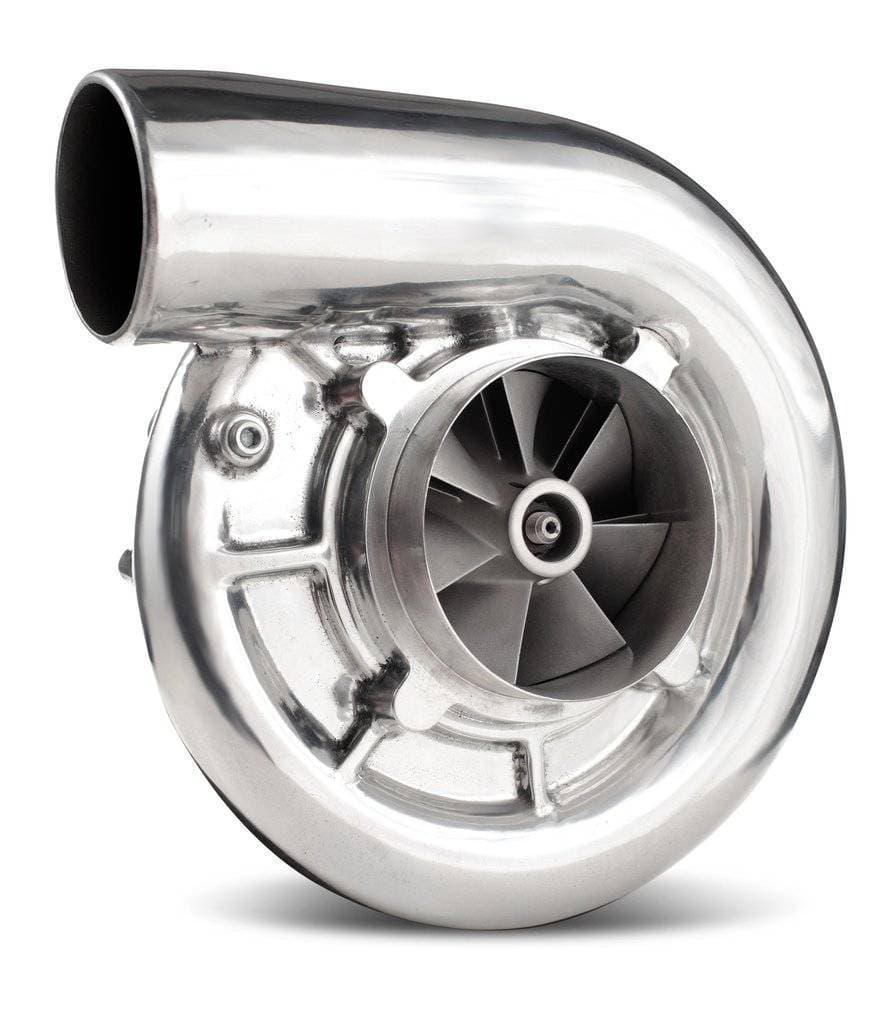

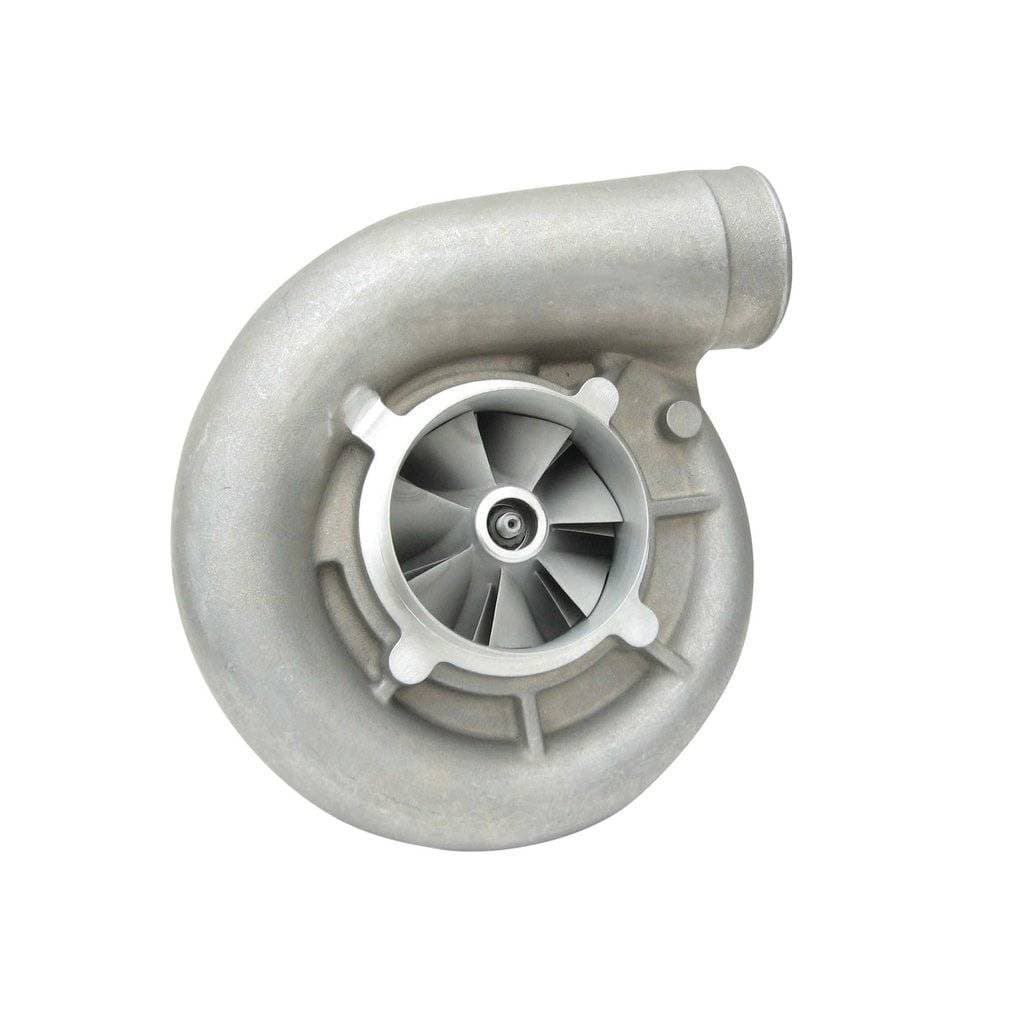

This is a Vortech Supercharger Head Unit only. These can be used on vehicles that can support 30+ psi of boost and is capable of producing 1200+ horsepower!
"Large blower" performance in a smaller package that fits most existing Vortech bracketry. The V-7 Series combines the advanced technology and race-proven performance and fits most of our existing mounting bracketry. The V-7 is designed for vehicles with highly modified engines and extreme CFM/boost demands. All units feature our exclusive D-port volute for improved efficiency and require the use of a Vortech Racing Bypass Valve or larger to meet discharge flow demands. The heavy duty (H/D) configuration includes high speed, ceramic hybrid ball bearings, ideal for race applications, and is compatible with cog pulley/Gilmer style drive setups.
2A158-060 V-7 YSi-Trim, Straight Discharge, Heavy Duty, CW Rotation, Satin Finish
2A158-064 V-7 YSi-Trim, Straight Discharge, Heavy Duty, CW Rotation, Black Finish
2A158-068 V-7 YSi-Trim, Straight Discharge, Heavy Duty, CW Rotation, Polished Finish
2A158-070 V-7 YSi-Trim, Curved Discharge, Heavy Duty, CW Rotation, Satin Finish
2A158-074 V-7 YSi-Trim, Curved Discharge, Heavy Duty, CW Rotation, Black Finish
2A158-078 V-7 YSi-Trim. Curved Discharge, Heavy Duty, CW Rotation, Polished Finish
2A159-050 V-7 YSi-Trim, Straight Discharge, Heavy Duty, CCW Rotation, Satin Finish
2A159-058 V-7 YSi-Trim, Straight Discharge, Heavy Duty, CCW Rotation, Polished Finish
Performance Specs:
Internal Step-Up Ratio: 3.45:1
Max Speed: 65,000 RPM
Max Boost: 30+ PSI
Max Flow: 1,600 CFM
Max Power: 1,200+ HP
Peak Efficiency: 78%
Dimensions
Discharge OD: 3.0"
Inlet OD: 4.0"
Discharge ID: 2.64"
Inducer Diameter: 3.7"
