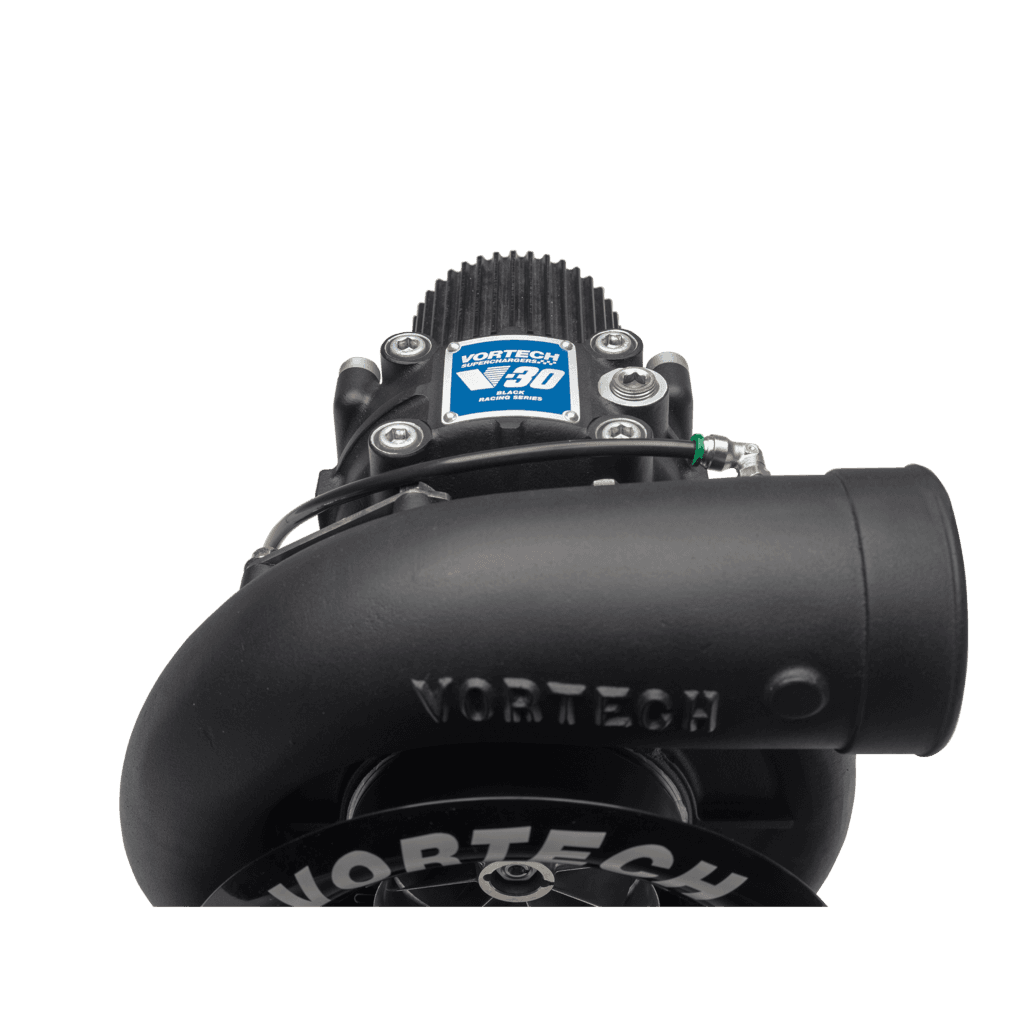

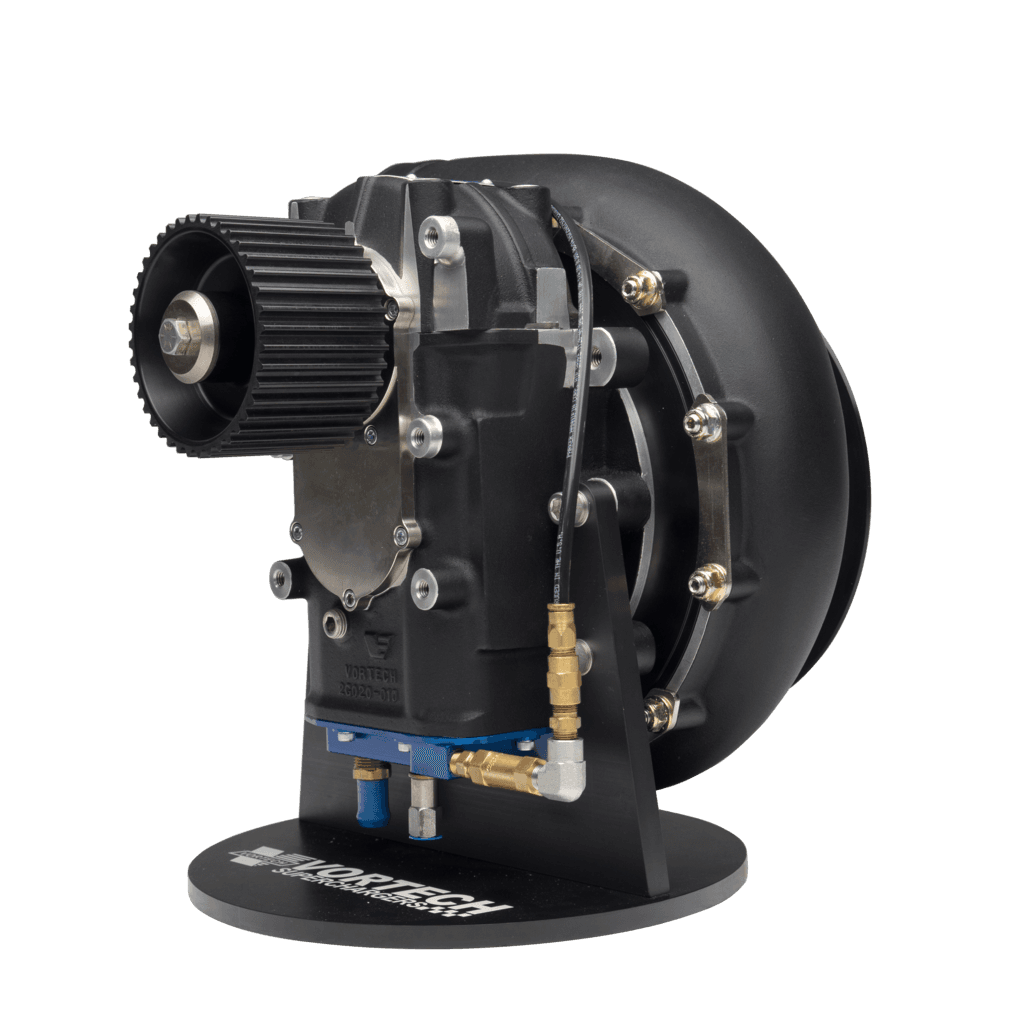

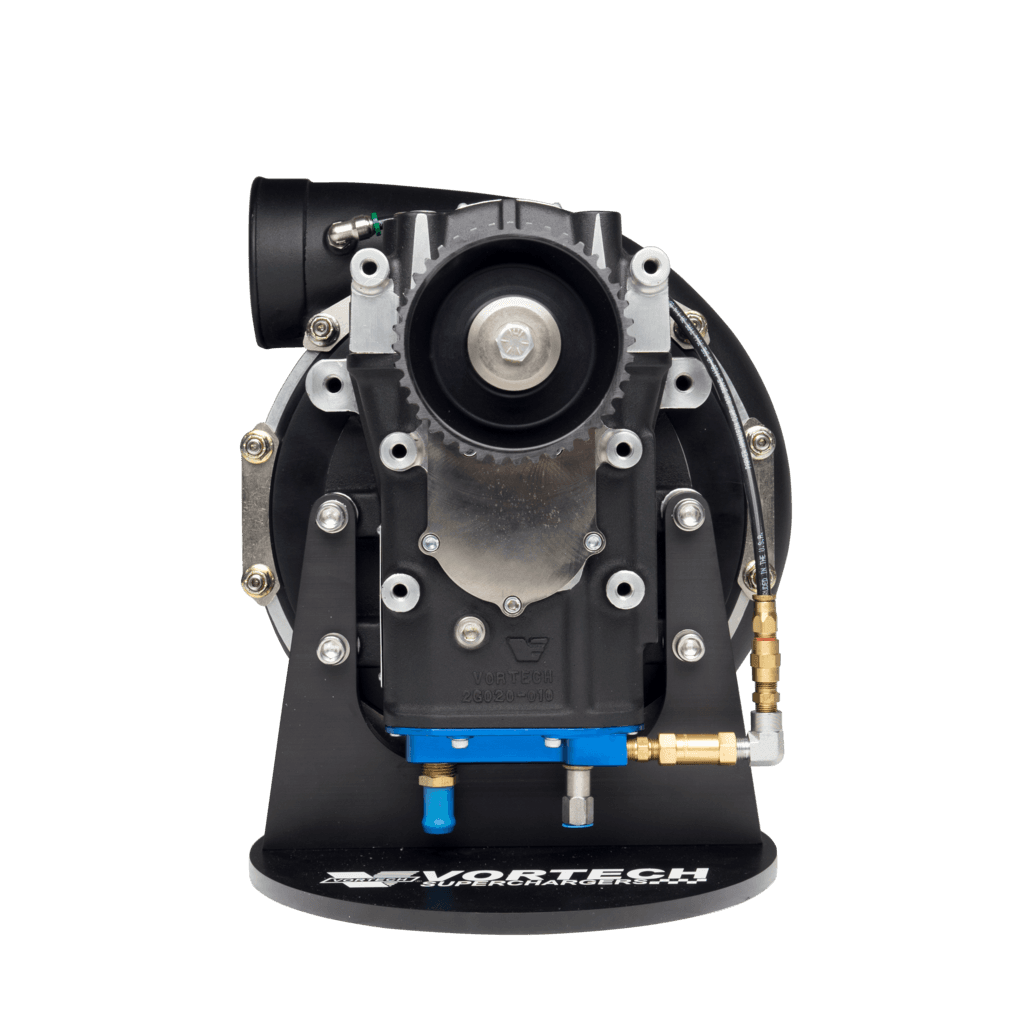

This is a Vortech Supercharger Head Unit only. These can be used on vehicles that can support 30+ psi of boost and is capable of producing 1400+ horsepower!
The V-30 94A is the next step in compressor development, replacing the existing V-27 YSi-B, and incorporates a technologically advanced, high-efficiency, 5-Axis machined billet impeller and high-diffusion housing developed in our SAE-J1723-compliant supercharger test cell.
The V-30 Series combines the advanced technology and race-proven performance and is designed for vehicles with highly modified engines and extreme CFM/boost demands. All units feature our exclusive D-port volute for improved efficiently and require the use of a Vortech Racing Bypass Valve or larger to meet discharge flow demands. All V-30 series superchargers share a 4.21:1 internal step-up ratio and are engine oil lubricated or an auxiliary system can be fabricated. The heavy duty (H/D) configuration includes high speed, ceramic hybrid ball bearings, ideal for race applications, and is compatible with cog pulley/Gilmer style drive setups.
2G458-014 V-30 94A, Straight Discharge, CW Rotation, Black Finish
2G459-014 V-30 94A, Straight Discharge, CCW Rotation, Black Finish
Performance Specs:
Internal Step-Up Ratio: 4.21:1
Max Speed: 65,000 RPM
Max Boost: 30+ PSI
Max Flow: 1,950+ CFM
Max Power: 1,400+ HP
Peak Efficiency: 79%+
Dimensions
Discharge OD: 3.0"
Inlet OD: 4.0"
Inducer Diameter: 3.70"
