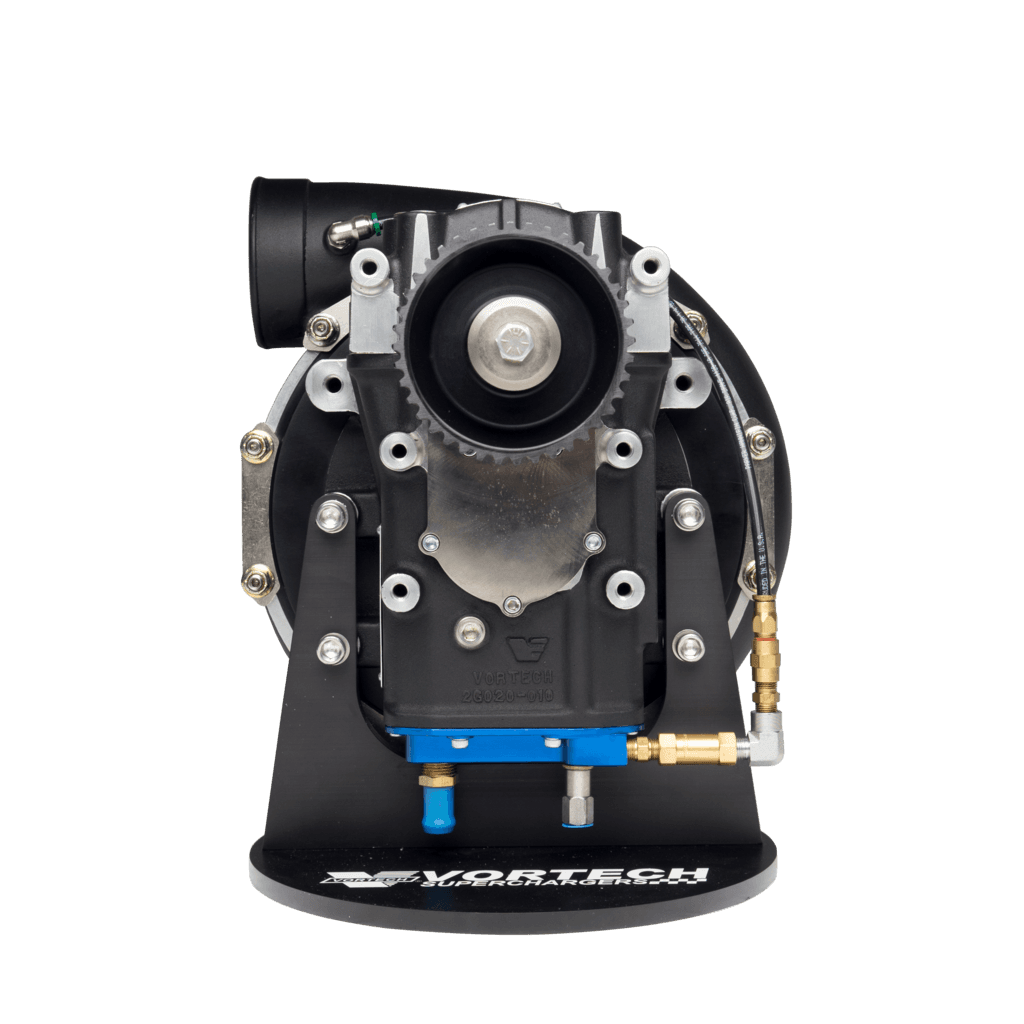

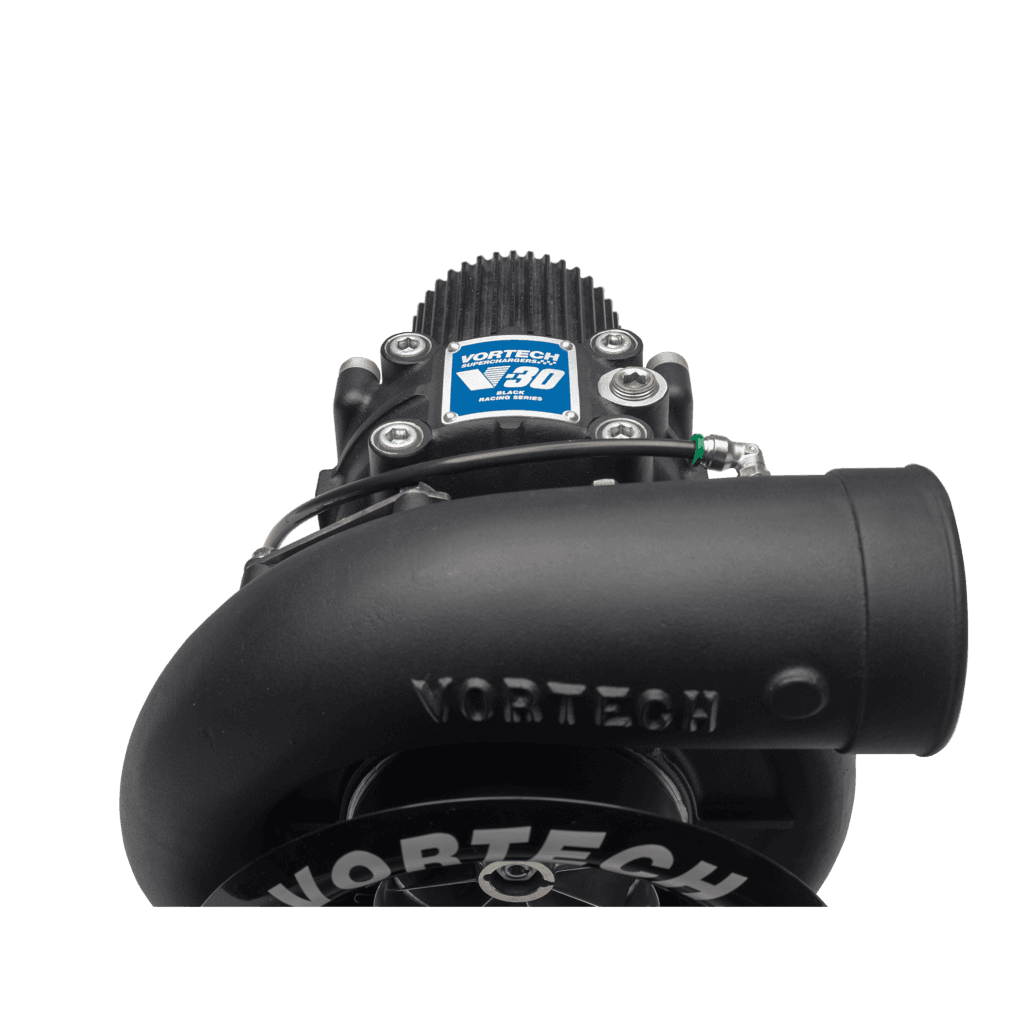

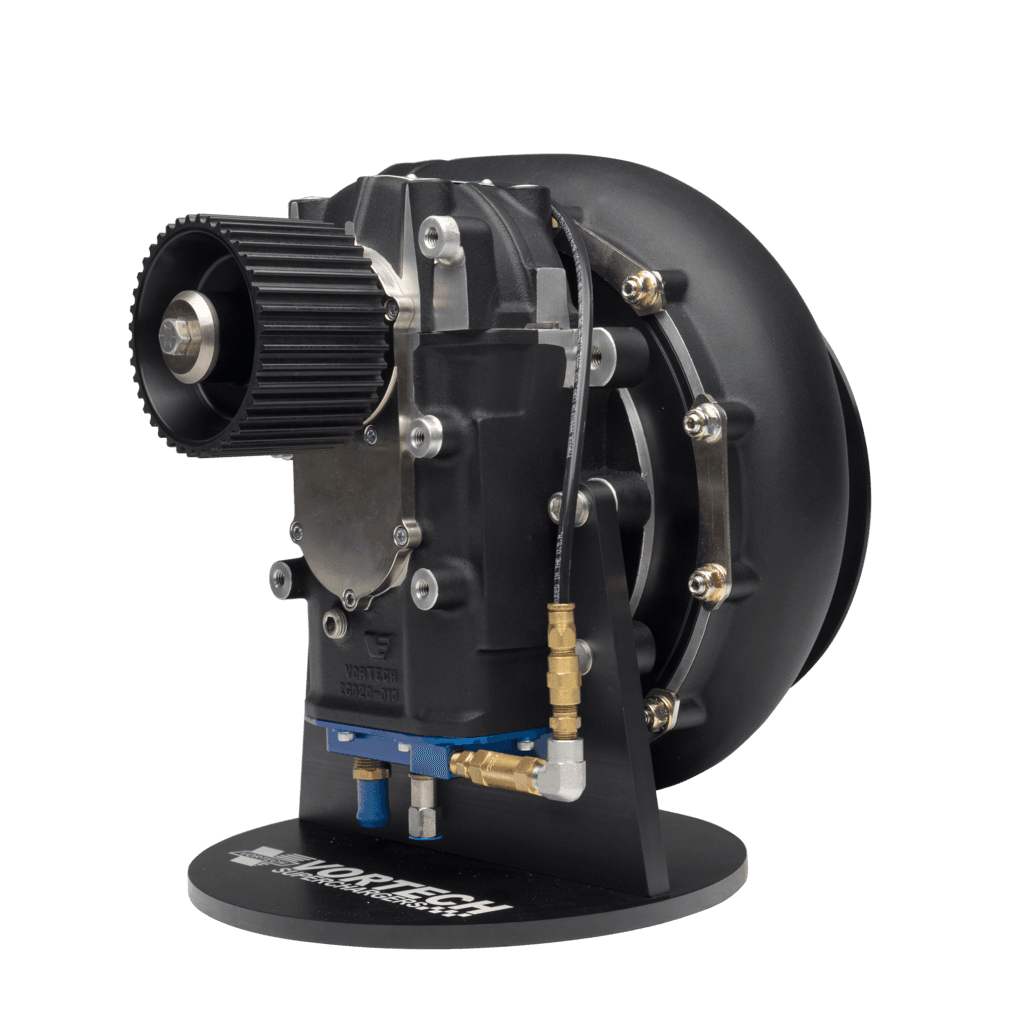

Vortech V-30 102A Supercharger Head Unit Only

This is a Vortech Supercharger Head Unit only. These can be used on vehicles that can support 32+ psi of boost and is capable of producing 1600+ horsepower!


The V-30 102A Supercharger is a new compressor, replacing the existing V-24 Xi-B, and features a plethora of cutting-edge technology, including its technologically advanced, high-efficiency, 5-Axis machined billet impeller and high-diffusion housing developed in our SAE-J1723-compliant supercharger test cell.


Built to address the needs of the over 1,000HP racer, the V-30 is a clean sheet design that incorporates many years of racing compressor knowledge. The patented design employs a unique impeller shaft support system that is robust enough to endure the speeds and accelerations associated with high horsepower drag racing and the durability to perform well in the offshore boat-racing world. The modular design allows fitment of a wide range of compressor stages. All V-30 series superchargers share a 4.21:1 internal step-up ratio and are engine oil lubricated or an auxiliary system can be fabricated. Like the V-1 family, the V-30 can have different compressor stages.

Performance Specs:
Internal Step-Up Ratio: 4.21:1
Max Speed: 65,000 RPM
Max Boost: 32+ PSI
Max Flow: 2,750+ CFM
Max Power: 1,600+ HP
Peak Efficiency: 79%+

Dimensions
Discharge OD: 3.5"
Inlet OD: 5.0"
Discharge ID: 3.06"
Inducer Diameter: 4.02"

The V-30 102A Supercharger is one of the smaller compressors in the V-30 family, yet still delivers well over 1,500HP. The carefully designed housing was made to fit in applications where space is a concern, while delivering twice the power of a typical roots type system.

Current Vortech V-24 Xi superchargers can be upgraded to the V-30 102A or 105A.
