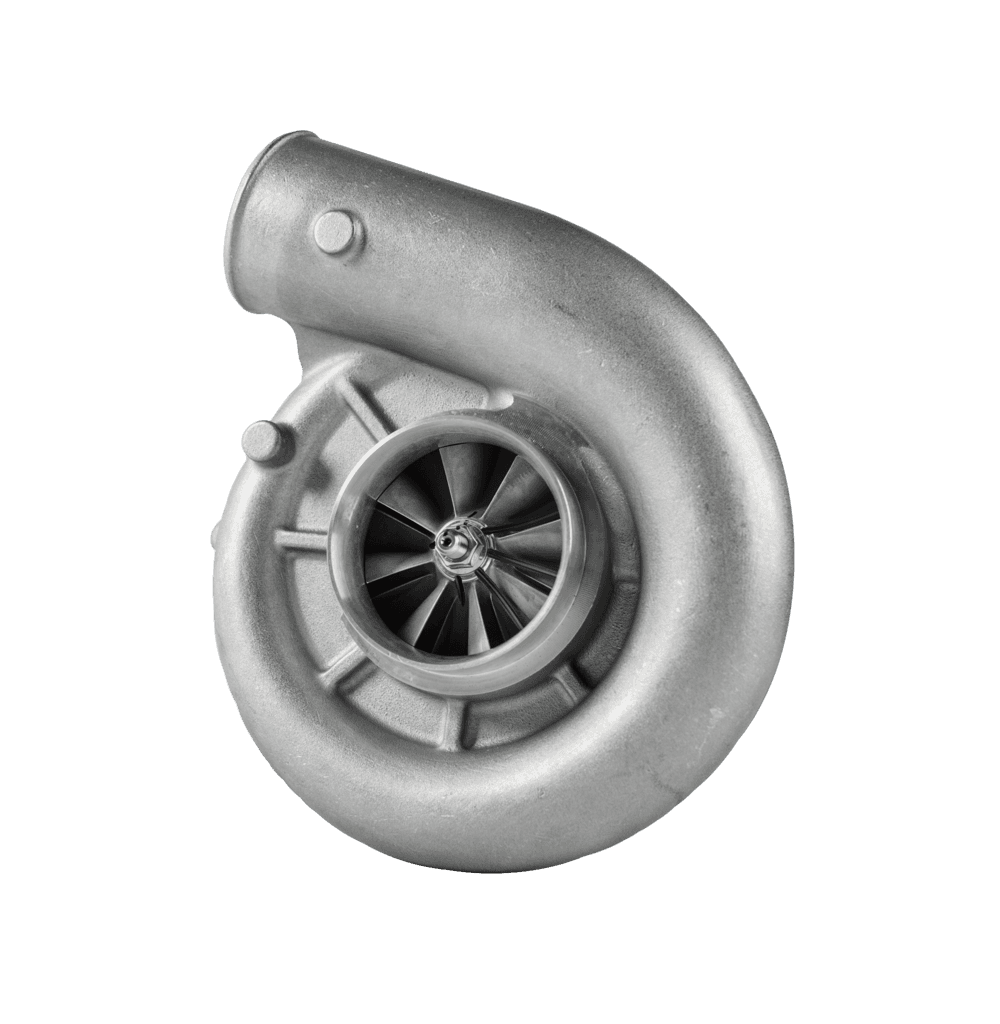

Vortech V-3 Si-Trim Supercharger Head Unit Only - Satin

This is a Vortech Supercharger Head Unit only. These can be used on vehicles that can support up to 22 psi of boost and is capable of producing 775 horsepower!


V-3 Si units feature self-contained lubrication system, and come with an attached oil drain extension so the unit does not have to be removed for servicing. The V-3 Si-Trim Supercharger is capable of up to 775HP on modified vehicles. Extraordinary 78% peak efficiency. Ideal for latest generation of improved breathing, high-power street and strip engines. Standard Quiet Helical Gearset.

Performance Specs:
Internal Step-Up Ratio: 3.5:1
Max Speed: 52,000 RPM
Max Boost: 22 PSI
Max Flow: 1,150 CFM
Max Power: 775 HP
Peak Efficiency: 78%

Performance specs apply to units equipped with standard gearcase.

Dimensions
Discharge OD: 2.75"
Inlet OD: 3.5"
Discharge ID: 2.38"
Inducer Diameter: 3.1"

Vortech Dealer information
Not any shop can become an Authorized Vortech Installing Dealer; you need to be knowledgable in both naturally aspirated and boosted high performance vehicles, and have the staff to support customers with both in store and phone support. Vortech is very strict about who they allow as dealers. Most online only or mail order companies are unable to qualify as dealers, but you are welcome to stop by our shop to talk about your application or view our supercharger kits. TREperformance has been building high performance vehicles for over 15 years, everything from simple engine upgrades to 1,000 horsepower drag cars. We have been selling superchargers and building blown motors for over a decade, so you know the dealer you are buying from has the knowledge to get you the right kit for your application.
