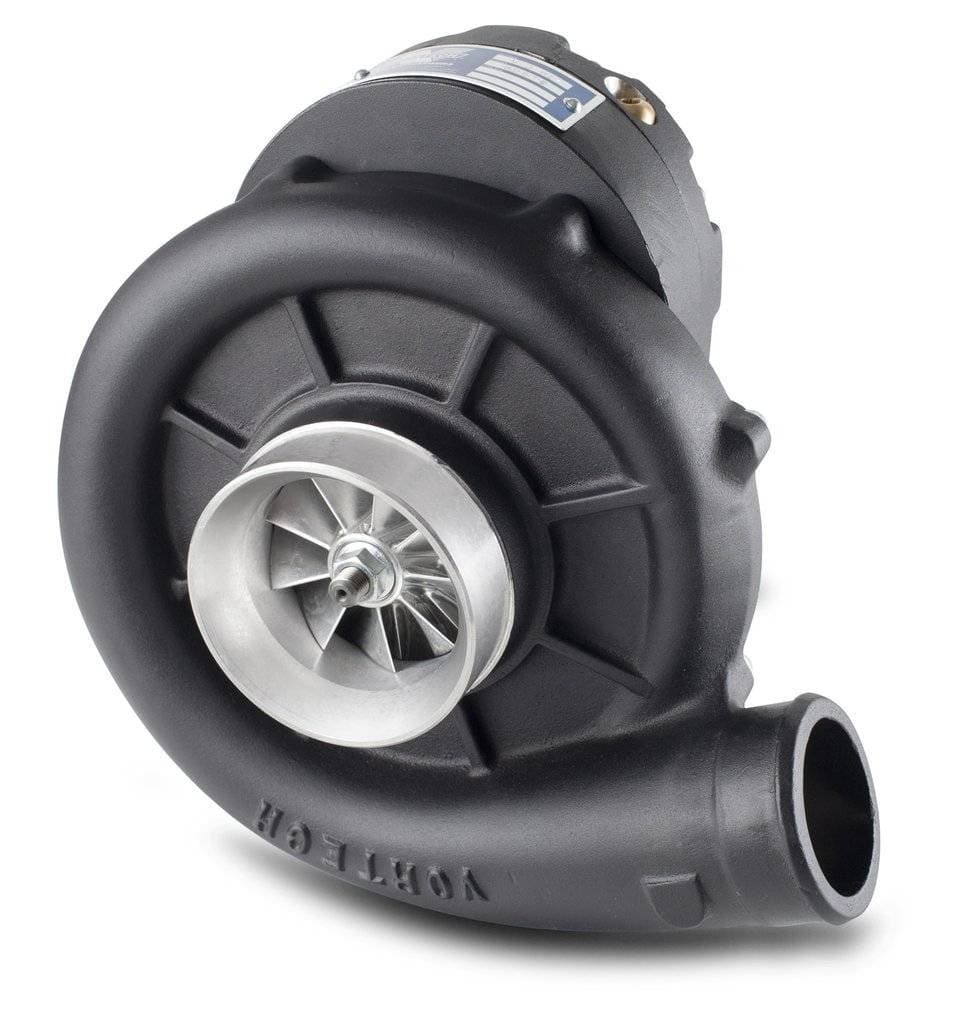

Vortech V-3 H67B Supercharger Head Unit Only - Black

This is a Vortech Supercharger Head Unit only. These can be used on vehicles that can support up to 14 psi of boost and is capable of producing 525 horsepower!


Gear-driven V-3 H67B centrifugal supercharger, designed specifically for the demands of high-revving, smaller displacement engines.

The V-3 features an internal oil reservoir. No connection between the oil pan and the compressor gear case is required. Includes a remote fluid drain hose (attached to supercharger) that allows for simple fluid changes without removing the supercharger from the vehicle.

Technologically advanced, high-efficiency, 5-Axis machined billet impeller and high-diffusion housing developed in our SAE-J1723-compliant supercharger test cell.

Performance Specs:
Internal Step-Up Ratio: 3.61:1
Max Speed: 52,000 RPM
Max Boost: 14 PSI
Max Flow: 750 CFM
Max Power: 525 HP
Peak Efficiency: 71%

Dimensions
Discharge OD: 2.50"
Inlet OD: 3.50"
Inducer Diameter: 2.69"

Vortech Dealer information
Not any shop can become an Authorized Vortech Installing Dealer; you need to be knowledgable in both naturally aspirated and boosted high performance vehicles, and have the staff to support customers with both in store and phone support. Vortech is very strict about who they allow as dealers. Most online only or mail order companies are unable to qualify as dealers, but you are welcome to stop by our shop to talk about your application or view our supercharger kits. TREperformance has been building high performance vehicles for over 15 years, everything from simple engine upgrades to 1,000 horsepower drag cars. We have been selling superchargers and building blown motors for over a decade, so you know the dealer you are buying from has the knowledge to get you the right kit for your application.
