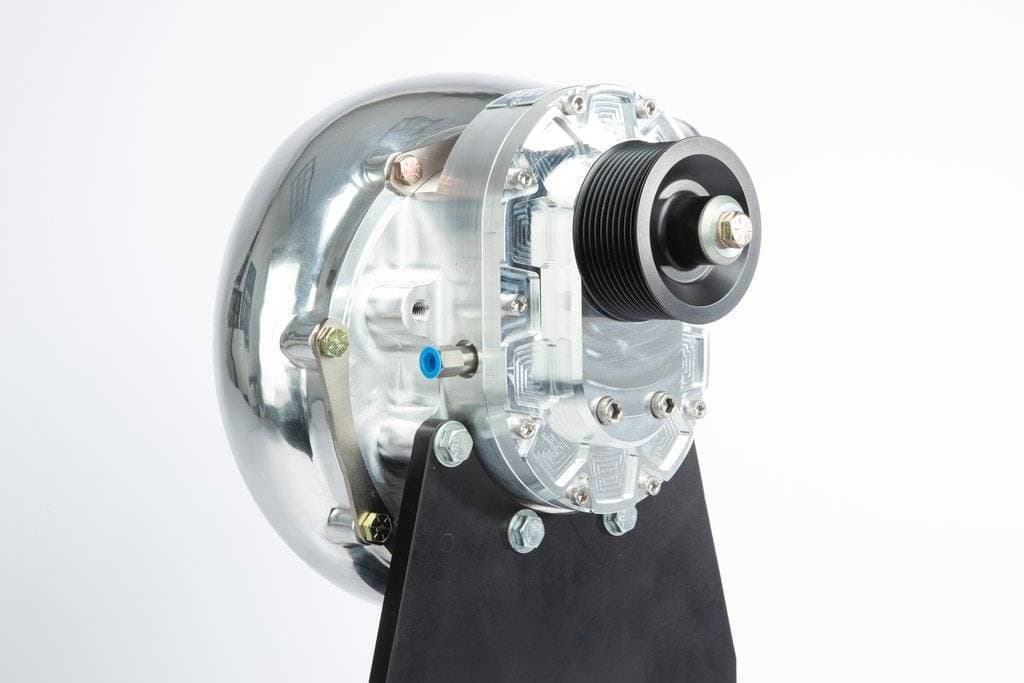

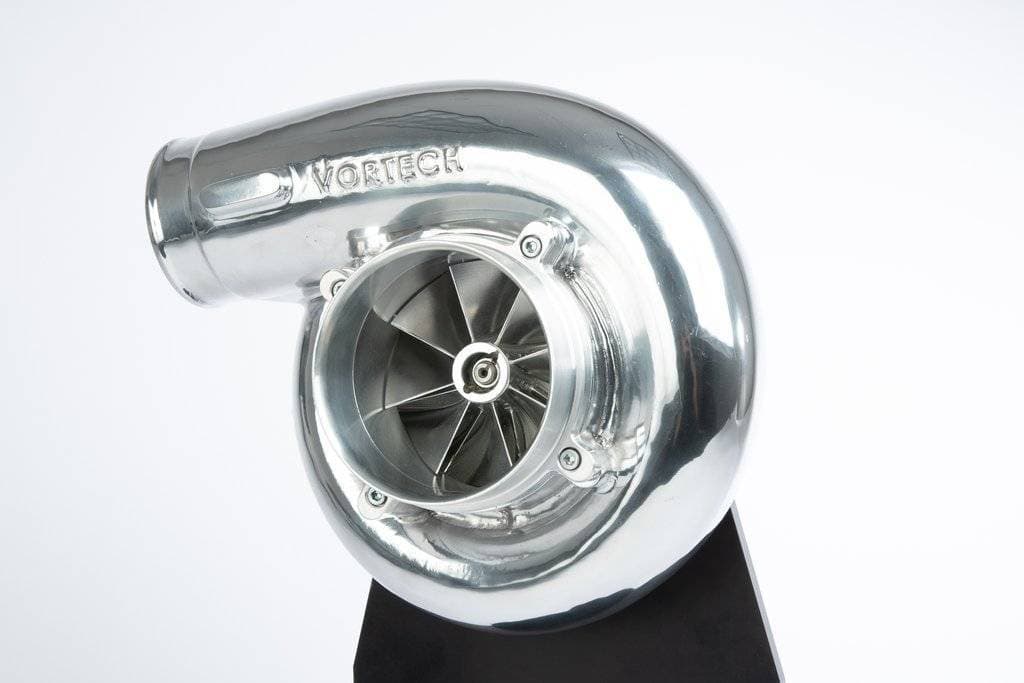

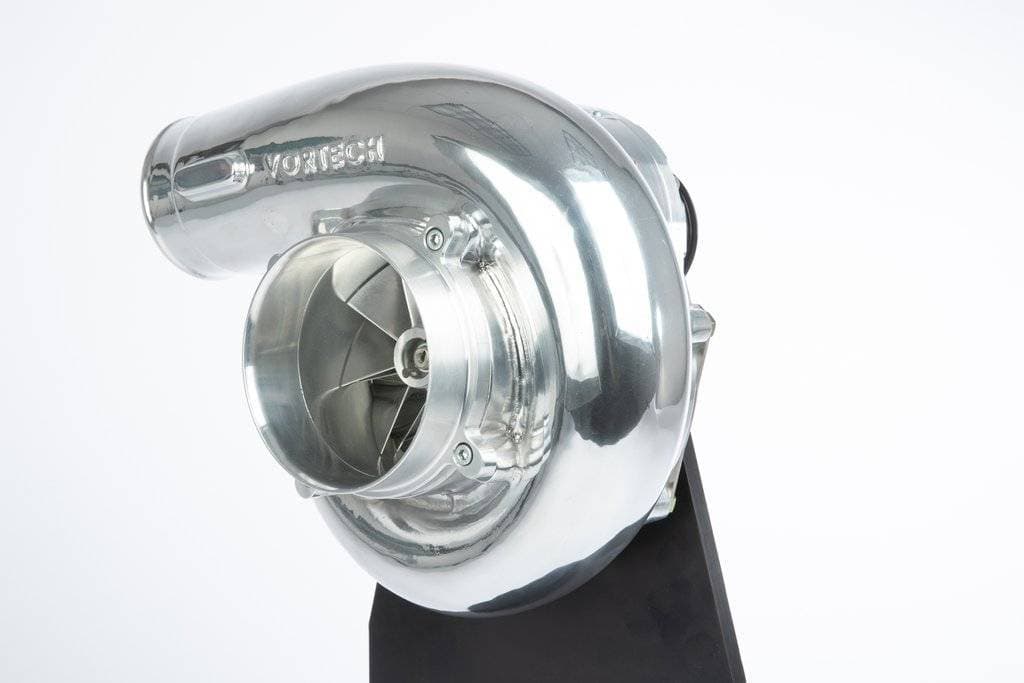

Vortech V-15 Z-Trim Supercharger Head Unit Only - Polished

This is a Vortech Supercharger Head Unit only. These can be used on vehicles that can support 35 psi of boost and is capable of producing 1900 horsepower!


The next step in compressor development, featuring an all-new, all-billet gearcase, and incorporating a technologically advanced, high-efficiency, 5-Axis machined billet impeller and high-diffusion housing developed in our SAE-J1723-compliant supercharger test cell.

The V-15 Z-Trim Supercharger was specifically designed to fit in the C5, C6, & C7 Corvette. It combines the advanced technology and race-proven performance that you have come to expect from Vortech, and applies it to address the ever growing horsepower demands of the Corvette Enthusiast. The Z-Trim compressor stage is named after Zora Arkus-Duntov, Belgian-Born American Engineer who earned the nickname "The Father of the Corvette".

Performance Specs:
Internal Step-Up Ratio: 3.45:1
Max Speed: 65,000 RPM
Max Boost: 35 PSI
Max Flow: 3,100 CFM
Max Power: 1,900 HP
Peak Efficiency: 73%

Dimensions
Discharge OD: 3.00"
Inlet OD: 5.00"
Inducer Diameter: 4.399"

Engine Oil-Fed Units Available Now
CCW Rotation Units Available Now
