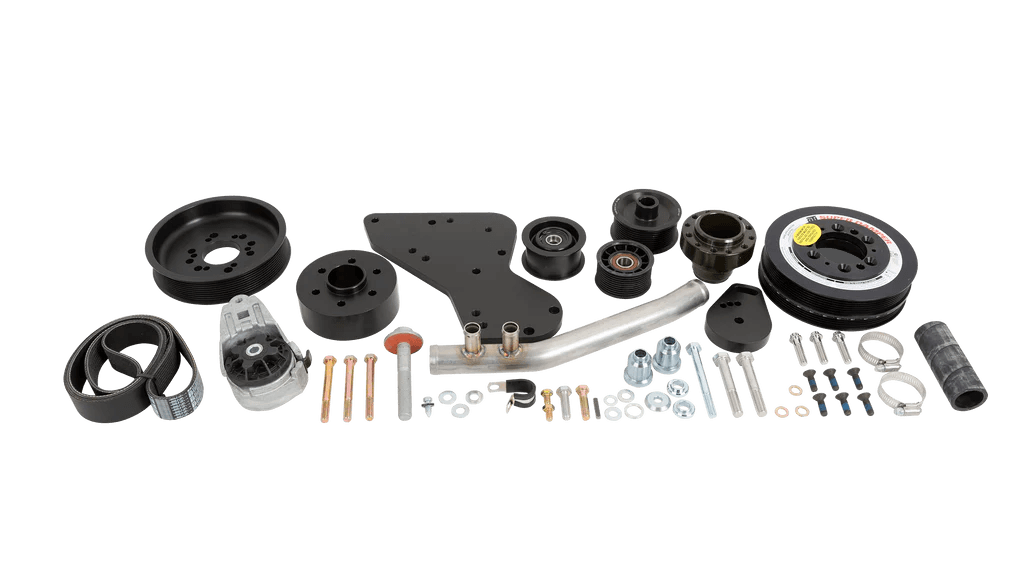

Included Components:
Steel, SFI approved race-spec replacement crank damper pulley manufactured by ATI Performance Products (-001 assembly only)
Hard anodized billet aluminum 10-rib supercharger pulley (3.47") and crank pulley (7.0")
56.8" 10-rib supercharger drive belt (2A041-568)
Multi-position, automatic belt tensioner assembly
Replacement tensioner mounting plate, idlers, and idler spacers
All necessary mounting hardware
Stainless steel replacement radiator tube assembly
Misc. Notes:
Custom ECM programming and fuel / ignition system upgrades will be required. This applies any time the supercharger drive pulley ratio is changed to any size other than what was originally supplied in the complete supercharger kit.
Pairing of this system with any non-H/D supercharger may cause supercharger unit failure if drive ratios are not selected carefully.
Supercharger pulley removal may reduce or void the supercharger unit warranty.
Pulley diameter changes: Careful size selection is mandatory for proper engine and supercharger longevity. Contact Vortech Tech Support for assistance with impeller speed calculations if necessary.
For applications exceeding 12 psig, the following Vortech bypass Valves are recommended:
