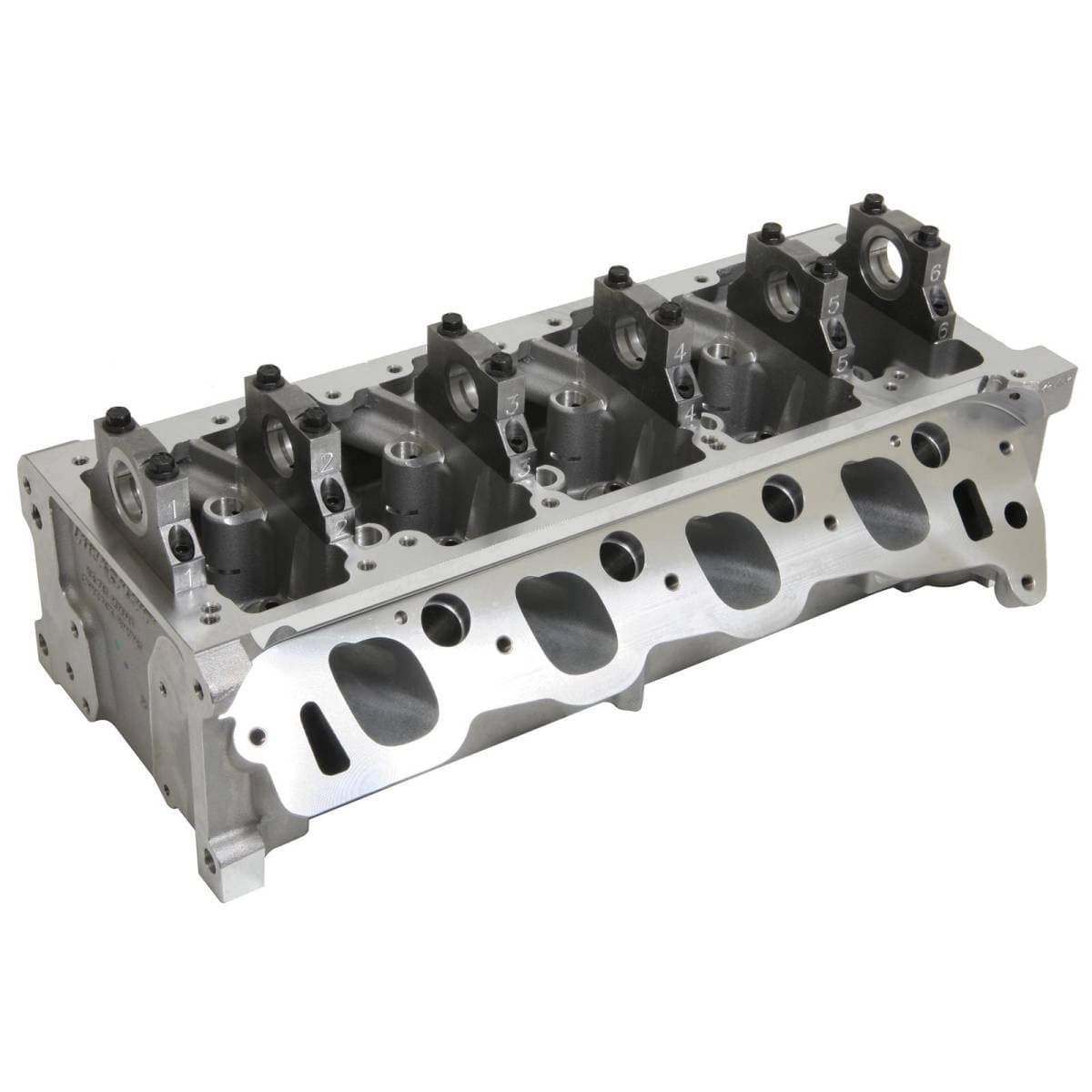

Trickflow Twisted Wedge Ford 4.6L/5.4L Race 195cc CNC Ported Cylinder Head Bare Casting 44cc Chamber

Aluminum heads for Ford bracket racers.
Trick Flow Twisted Wedge® Race 195 cylinder heads are perfect for big bore Ford Modular 2V engine builds as well as engines with superchargers or turbos, high compression E85, big shot nitrous oxide, and other mega-power combinations. The secret lies in the CNC-profiled Twisted Wedge combustion chambers and intake valves moved to the opposite side of the cam. These features provide dramatic increases in mid-lift airflow, piston-to-valve clearance, and valve-to-bore clearance for using higher lift cams and larger valves without altering bore size or flycutting pistons. Trick Flow Twisted Wedge Race 195 heads have fully CNC Competition Ported runners with a premium high resolution surface finish for ultimate performance. Features include OE PI-style intake inlets, patented replaceable cam bearing journals (no more junking heads because of trashed cams!), 3/4" thick decks, and 3/4"-reach spark plugs. Trick Flow Twisted Wedge Race 195 heads fit all 2V Romeo and Windsor engines and accept all OE-style camshafts, followers, lash adjusters, valve covers, and most OE Ford front covers. The heads are available fully assembled or as bare castings. These are the cheaper bare versions without any valves or springs.

Manufacturer's Part Number: TFS-5291B002-C01

Product Line: Trick Flow® Twisted Wedge Race 195 Cylinder Heads for Ford 4.6L/5.4L 2V

Combustion Chamber Volume (cc): 44

Intake Runner Volume (cc): 195cc

Exhaust Runner Volume (cc): 95cc

Cylinder Head Style: Bare

Cylinder Head Material: Aluminum

Intake Valve Diameter (in): 1.900 in.

Cylinder Head Finish: Natural

CNC-Machined Combustion Chamber: Yes

CNC-Machined Intake Runner: Yes

CNC-Machined Exhaust Runner: Yes

Combustion Chamber Style: Twisted Wedge

Intake Port Location: Standard

Exhaust Port Shape: D-port

Exhaust Port Location: Standard

Spark Plug Style: Angle

Intake Valves Included: No

Exhaust Valves Included: No

Exhaust Valve Diameter (in): 1.470 in.

Valve Springs Included: No

Damper Spring Included: No

Retainers Included: No

Locks Included: No

Valve Stem Seals Included: No

Rocker Arm Studs Included: No

Rocker Arms Included: No

Rocker Arm Nuts Included: No

Guideplates Included: No

Intake Valve Angle: 9

Exhaust Valve Angle: 9

Valve Guides Included: No

Valve Guide Material: Powdered metal

Valve Seats Machined: Yes

Valve Seat Machine Style: 3-angle

Valve Seat Material: Ductile iron

Oiling Style: Through pushrod

Machined for O-Ring: No

Heat Crossover: No

Quantity: Sold individually.

Notes: Accepts all Romeo and Windsor valve covers, plus most stock-style Ford front covers.



Trick Flow Twisted Wedge® Race 195 cylinder heads are perfect for big bore Ford Modular 2V engine builds as well as engines with superchargers or turbos, high compression E85, big shot nitrous oxide, and other mega-power combinations. The secret lies in the CNC-profiled Twisted Wedge combustion chambers and intake valves moved to the opposite side of the cam. These features provide dramatic increases in mid-lift airflow, piston-to-valve clearance, and valve-to-bore clearance for using higher lift cams and larger valves without altering bore size or flycutting pistons.

Trick Flow Twisted Wedge Race 195 heads have fully CNC Competition Ported runners with a premium high resolution surface finish for ultimate performance. Larger, stronger valves and race-duty valvetrain components give these heads 8,000-plus rpm capability. Other features include OE PI-style intake inlets, patented replaceable cam bearing journals (no more junking heads because of trashed cams!), 3/4" thick decks, and 3/4"-reach spark plugs.

Trick Flow Twisted Wedge Race 195 heads fit all 2V Romeo and Windsor engines and accept all OE-style camshafts, followers, lash adjusters, valve covers, and most OE Ford front covers. The heads are available fully assembled or as bare castings. Sold individually.
