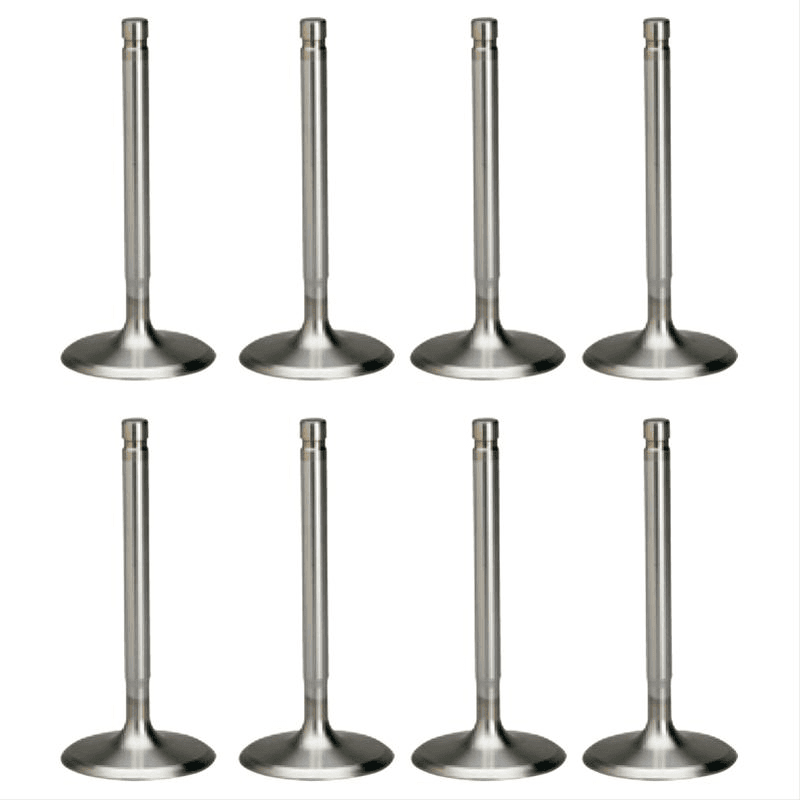

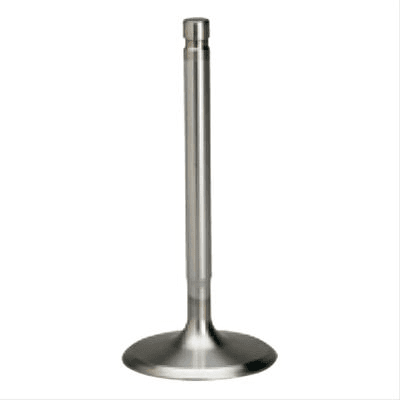

Trickflow SBF/SBC Intake Valves 2.020" Dia. / 4.960" Lgth. 12 Deg. Dish For TFS 23 Deg. & Twisted Wedge Cylinder Head - Set of 8

Don’t cut corners when it’s time to replace or upgrade the valves in your Trick Flow® cylinder heads. These replacement valves are the same high quality units used in Trick Flow® assembled heads. They feature stainless steel construction, swirl polishing, hardened tips, undercut stems, and dished heads (most applications). Available for all Trick Flow® cylinder heads.

Valve Specs:
Valve Position: Intake
Intake Valve Head Diameter (in.): 2.020 in.
Intake Valve Head Diameter (mm): 51.308mm
Intake Valve Stem Diameter (in.): 0.341 in.
Intake Valve Stem Diameter (mm): 8.66mm
Intake Overall Valve Length (in.): 4.960 in.
Intake Overall Valve Length (mm): 125.984mm
Undercut Stem: Yes
Swirl-Polished: Yes
Valve Tip Length (in.): 0.260 in.
Valve Tip Length (mm): 6.604mm
Valve Material: EV8 stainless steel
Lock Groove Quantity: 1-groove
Lock Groove Style: Conventional
Valve Head Style: 12 degree dish
Quantity: Sold as a set of 8.
