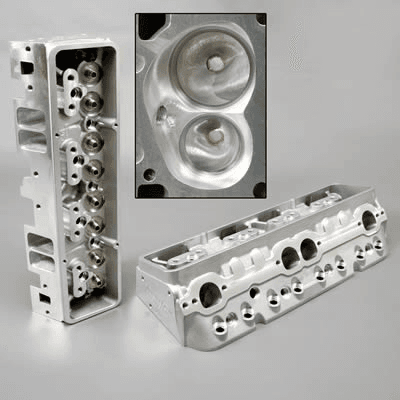

Trick Flow’s Super 23 230 cylinder heads represent the best value in small block Chevy racing technology. That’s because they are the closest thing you can get to 18° cylinder head performance in a 23° design. The Super 23 230 heads work best on 400 cubic inch and larger engines. The heads come standard with Trick Flow’s advanced CNC Competition Ported runner design that features fully CNC-profiled combustion chambers and runners with a premium high resolution surface finish for maximum flow and performance. Additional highlights include angled spark plugs, extra-thick decks and walls for porting, and raised valve cover rails.
To make swapping cylinder heads less costly and time-consuming, Trick Flow designed the Super 23 230 heads to use all standard small block valvetrain parts and headers. Cylinder heads are available fully assembled or as bare castings. Sold individually.
Notes:
Combustion Chamber Volume (cc): 70
Intake Runner Volume (cc): 230cc
Exhaust Runner Volume (cc): 78cc

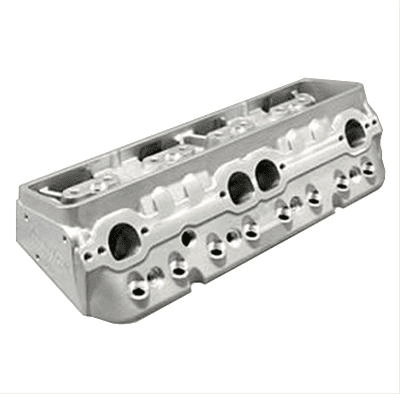

Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.080 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: D-port
Exhaust Port Location: Standard
Spark Plug Style: Angle
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: Must use head gaskets with 4.155 in. bore diameter.
