Part Number |
TFS-5161T004-C11 |
|
Part Type |
Cylinder Heads |
|
Product Line |

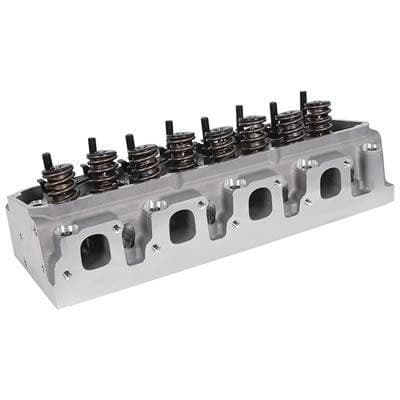

Trick Flow® PowerPort® Cleveland 225 Cylinder Heads for Ford 351C, 351M/400 and Clevor |
|
UPC |
842645112867 |
|
Combustion Chamber Volume (cc) |
72 |
|
Intake Runner Volume (cc) |
225cc |
|
Exhaust Runner Volume (cc) |
115cc |
|
Cylinder Head Style |
Assembled |
|
Cylinder Head Material |
Aluminum |
|
Intake Port Shape |
Rectangular |
|
Intake Valve Diameter (in) |
2.080 in. |
|
Cylinder Head Finish |
Natural |
|
CNC-Machined Combustion Chamber |
Yes |
|
CNC-Machined Intake Runner |
Yes |
|
CNC-Machined Exhaust Runner |
Yes |
|
Combustion Chamber Style |
Heart |
|
Intake Port Location |
Standard |
|
Exhaust Port Shape |
D-port |
|
Exhaust Port Location |
Raised |
|
Spark Plug Style |
Angle |
|
Intake Valves Included |
Yes |
|
Exhaust Valves Included |
Yes |
|
Exhaust Valve Diameter (in) |
1.600 in. |
|
Valve Springs Included |
Yes |
|
Maximum Valve Lift (in) |
0.680 in. hydraulic or solid roller camshafts |
|
Outside Diameter of Outer Spring (in) |
1.550 in. |
|
Damper Spring Included |
Yes |
|
Number of Springs Per Valve |
Dual |
|
Retainers Included |
Yes |
|
Retainer Material |
Titanium |
|
Locks Included |
Yes |
|
Lock Style |
10 degree |
|
Valve Stem Seals Included |
Yes |
|
Rocker Arm Studs Included |
Yes |
|
Rocker Arm Nut Thread Size |
7/16-20 in. |
|
Rocker Arms Included |
No |
|
Rocker Arm Nuts Included |
No |
|
Guideplates Included |
Yes |
|
Guideplate Pushrod Size |
5/16 in. |
|
Valve Cover Mounting Style |
Perimeter bolt |
|
Accessory Bolt Holes Drilled |
Yes |
|
Intake Valve Angle |
9.5/4.25 |
|
Exhaust Valve Angle |
9.5/3 |
|
Valve Guides Included |
Yes |
|
Valve Guide Material |
Bronze |
|
Valve Seats Machined |
Yes |
|
Valve Seat Machine Style |
3-angle |
|
Valve Seat Material |
Ductile iron |
|
Steam Holes Drilled |
No |
|
Oiling Style |
Through pushrod |
|
Machined for O-Ring |
No |
|
Heat Crossover |
No |
|
Quantity |
Sold individually. |
|
Notes |
Exhaust port is raised 0.100 in. over stock 2V head. |
