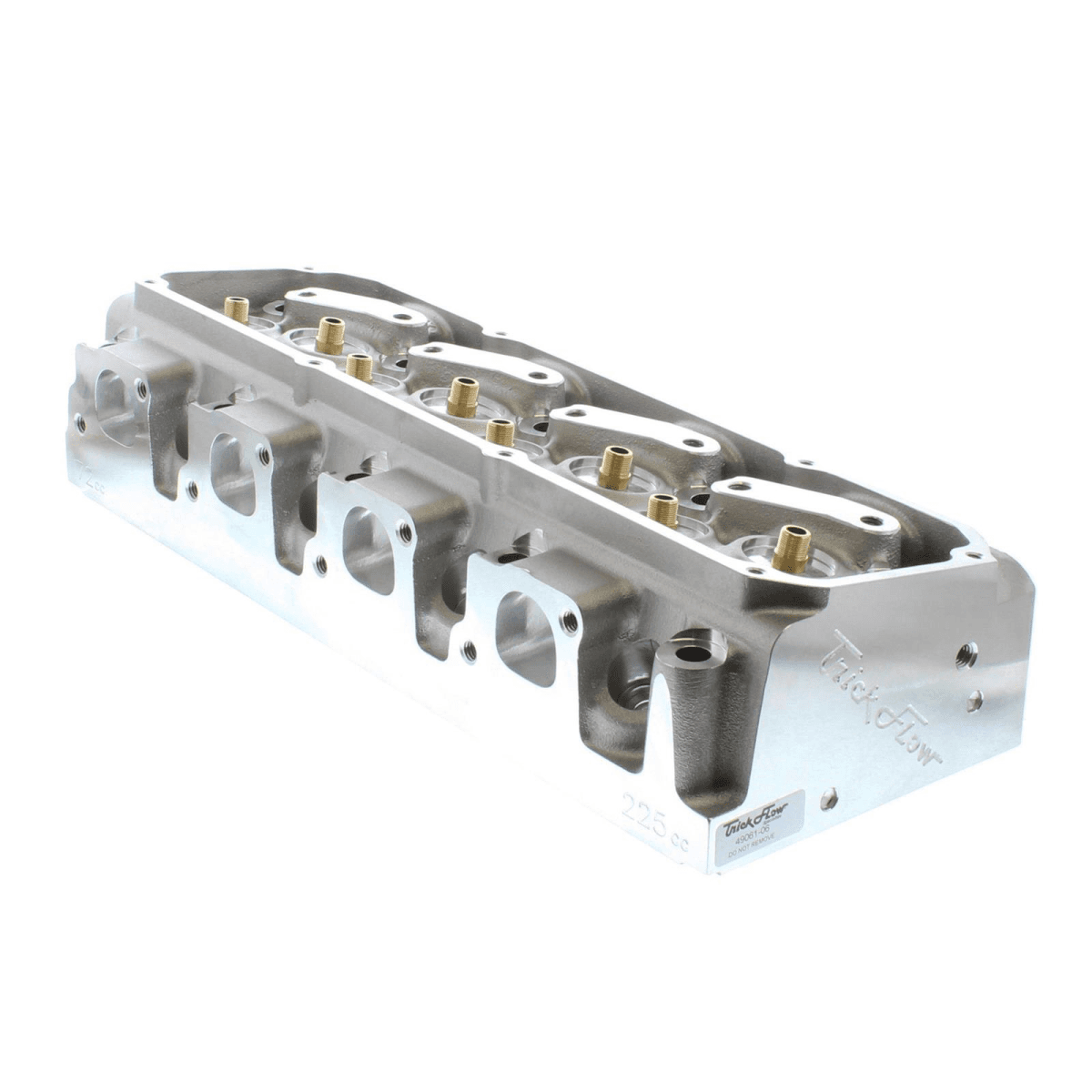

Trickflow PowerPort CNC Ported 225cc Bare Cylinder Head Casting, Ford 351C/M/400 Clevor, 72cc Chambers

Trick Flow PowerPort® Cleveland 225 cylinder heads feature runners based on the OE Ford 2V design. The exhaust runners are raised .100" from the stock location to improve the short turn radius and dramatically improve exhaust flow, and a revised oil return system improves oil drain back and includes provisions for mating with Ford 351W blocks. The heads feature fully CNC Competition Ported runners with a premium high resolution surface finish for maximum, all-out performance.

PowerPort® Cleveland 225 heads fit Ford 351C, 351M, and 400 engines out of the box. With minor machining, the heads also fit Ford 302/351W blocks to create a “replica” Boss 302 or a 351 “Clevor” engine. The heads are available fully assembled or as bare castings. Sold individually.

Combustion Chamber Volume (cc): 72
Intake Runner Volume (cc): 225cc
Exhaust Runner Volume (cc): 115cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: D-port
Exhaust Port Location: Raised
Spark Plug Style: Angle
Intake Valves Included: No
Exhaust Valves Included: No
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 9.5/4.25
Exhaust Valve Angle: 9.5/3
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: Minimum bore diameter of 4.000 in.
