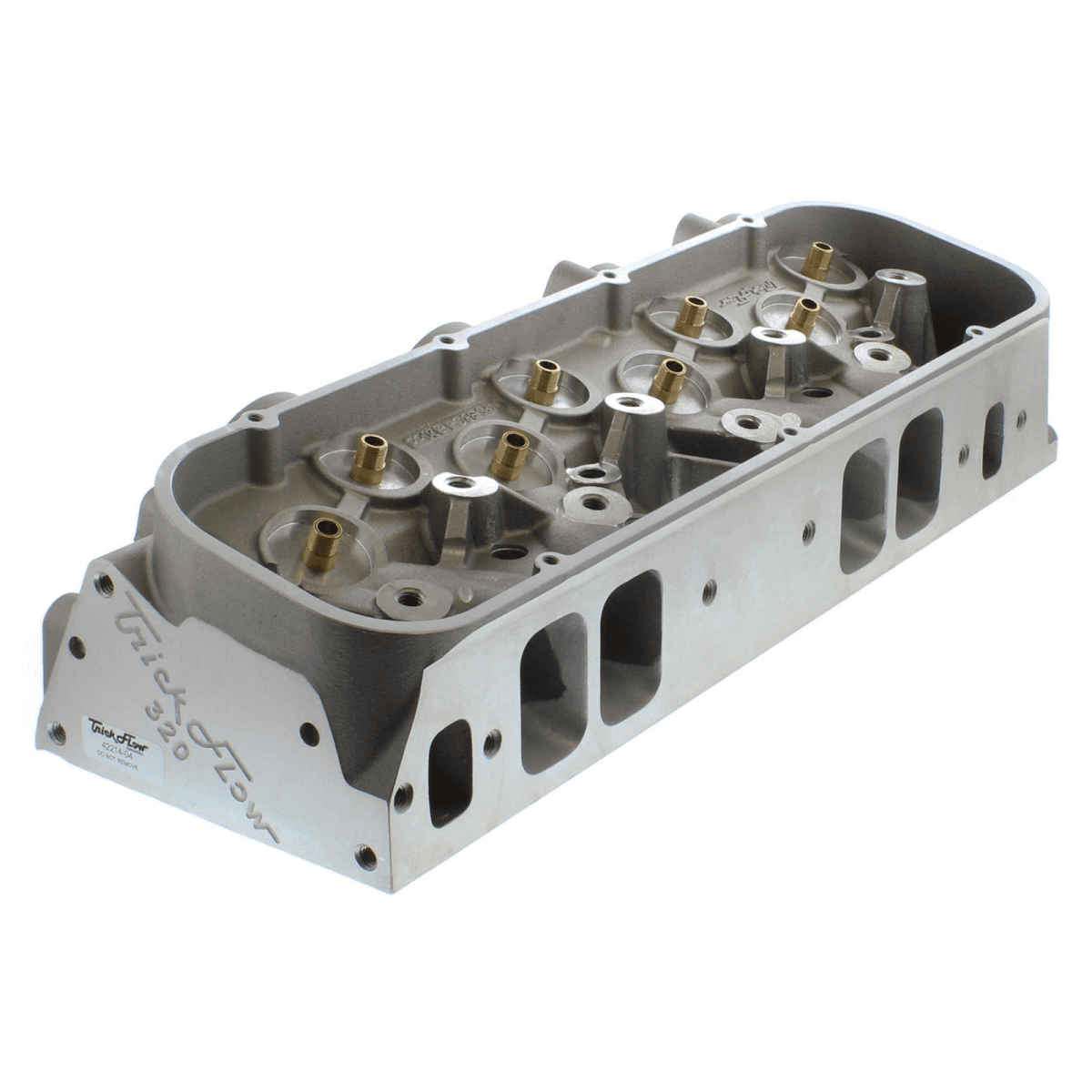

Trickflow PowerPort Bare Cylinder Head Casting, Big Block Chevy, 320cc Intake, 112cc Chamber

Perfect for all high performance street/strip, racing, and marine applications, Trick Flow PowerPort® 320 cylinder heads for big block Chevy deliver exceptional power potential and competition level durability. Features include rectangular intake runners for strong mid- to high-rpm performance, fully CNC-profiled, heart-shaped combustion chambers, CNC bowl blended valve seat transitions, 24 degree intake valve angles with 4 degree side cants for additional airflow volume, adjustable guideplates, and premium quality, high-strength aluminum castings. The Fast As Cast® runners flow almost as much air as fully CNC-ported heads right out of the box. That means you’ll get almost CNC-ported performance for about the same price as regular cast heads.

Cylinder heads are available fully assembled or as bare castings. Sold individually.

Combustion Chamber Volume (cc): 122
Intake Runner Volume (cc): 320cc
Exhaust Runner Volume (cc): 137cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.250 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: D-port
Exhaust Port Location: Raised
Spark Plug Style: Angle
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.880 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 24/4
Exhaust Valve Angle: 15/4
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
