Part Number: TFS-6141T783-C00
Part Type: Cylinder Heads

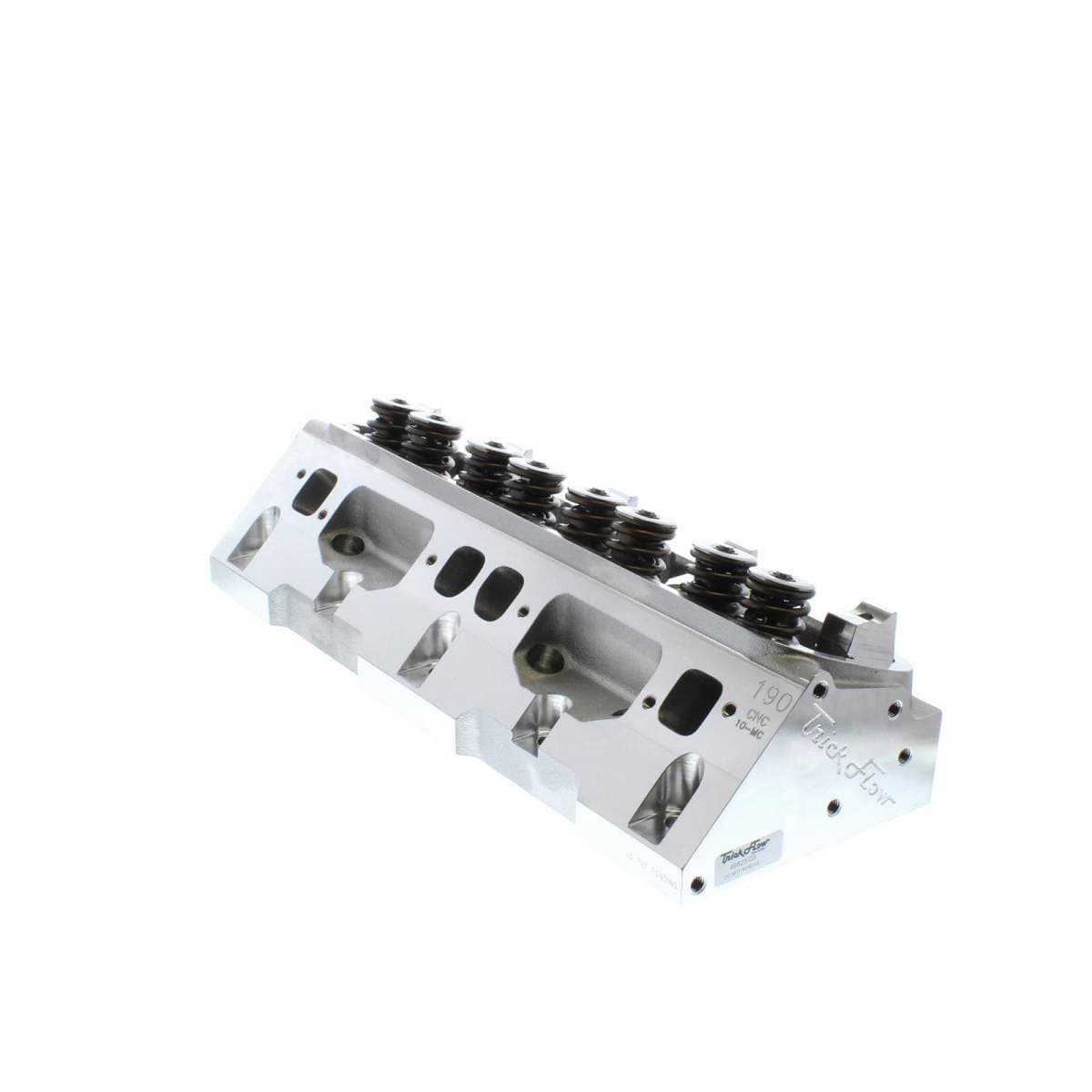

Product Line: Trick Flow® PowerPort® 190 Cylinder Heads for Small Block Mopar
Combustion Chamber Volume (cc): 60
Intake Runner Volume (cc): 190cc
Exhaust Runner Volume (cc): 81cc
Cylinder Head Style: Assembled
Cylinder Head Material: Aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.020 in.
Cylinder Head Color: Natural
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Spark Plug Style: Straight
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.570 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.680 in.
Camshaft Style: Hydraulic roller or small solid roller camshafts
Outside Diameter of Outer Spring (in.): 1.550 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Titanium
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 18
Exhaust Valve Angle: 18
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through head
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold individually.
Notes: Magnum engines must use Harland Sharp S72025K (1.5 ratio) or S72026K (1.6 ratio) shaft mount roller rocker arms for proper oiling.
Required Parts:
Trick Flow Specialties Head Bolt Kit (TFS-92030) OR Trick Flow Specialties Head Stud Kit (TFS-61404304)
Harland Sharp Rocker Shaft System for Magnum blocks. (S72025K or S72026K)
Recommended Parts:
Trick Flow Specialties Rocker Shaft Stud Kit (TFS-61400613)
Harland Sharp Rocker Shaft System for LA blocks. (S70025K or S70026K)
