Serious horsepower for your Big Block Chevy engine, heads sold individually.

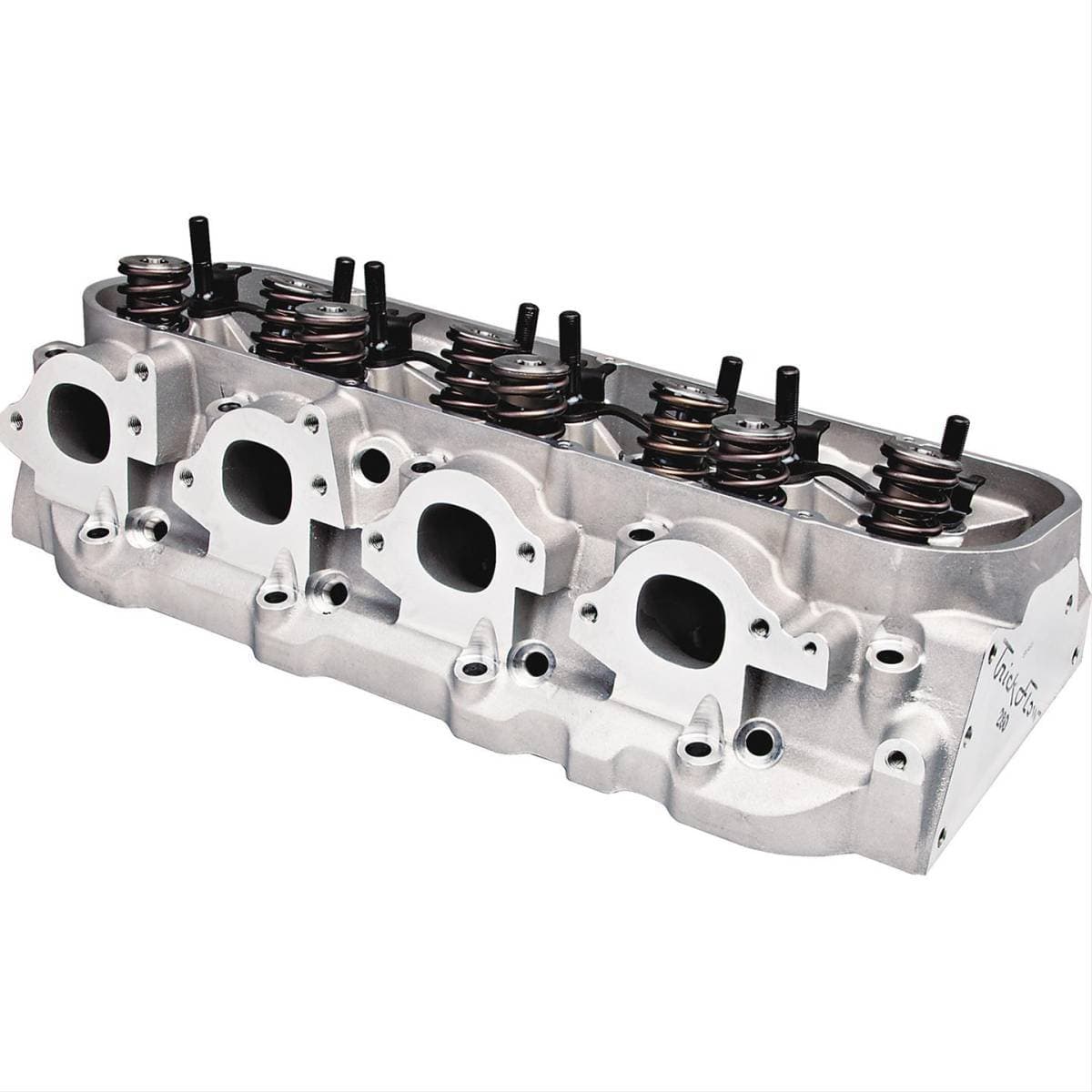

Trick Flow PowerOval® 280 cylinder heads for big block Chevy are an ideal upgrade from factory cast iron heads for street/strip and marine applications. They feature an oval intake port design that produces excellent low and midrange torque and horsepower, plus more efficient heart-shaped combustion chambers, .300" raised exhaust ports, extra-thick decks and walls for porting, and Fast As Cast® runners for near- CNC-ported performance at standard cast head prices. CNC bowl blended valve seat transitions promote high velocity and huge airflow volume and 24 degree valve angles with 4 degree side cants further increase airflow.
Cylinder Head Style: Assembled
Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural
Combustion Chamber Volume (cc): 113
CNC-Machined Combustion Chamber: Yes
Intake Runner Volume (cc): 280cc
Exhaust Runner Volume (cc): 129cc
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Shape: Oval
Intake Port Location: Standard
Exhaust Port Shape: D-Port
Exhaust Port Location: Raised
Spark Plug Style: Angle
Intake Valves Included: Yes
Intake Valve Diameter (in): 2.190 in.
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in): 1.880 in.
Valve Springs Included: Yes
Maximum Valve Lift (in): 0.700 in.
Outside Diameter of Outer Spring (in): 1.560 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Titanium
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: Yes
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Rocker Arm Nut Thread Size: 7/16-20 in.
Guideplates Included: Yes
Guideplate Pushrod Size: 3/8"
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 24/4
Exhaust Valve Angle: 15/4
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold individually
Notes:
Exhaust port is raised 0.300 in. over stock.
