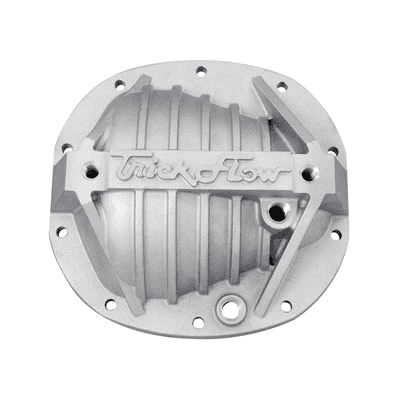

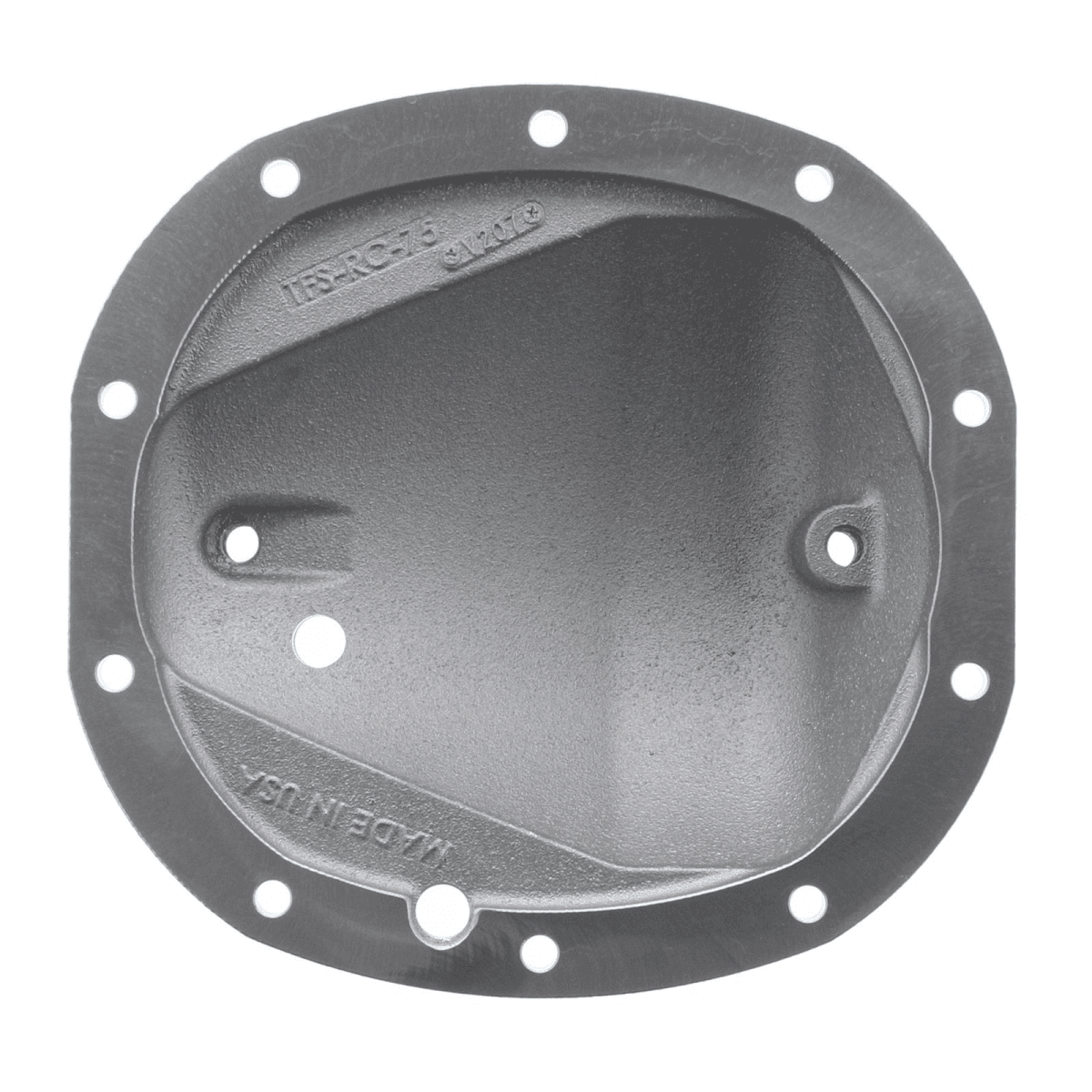

Trick Flow differential covers feature heavy-duty A319 cast aluminum construction and extreme-duty bearing cap support studs to prevent cap movement and breakage, as well as ensure proper pinion depth and backlash. The covers come with support studs, jam nuts, ARP stainless steel bolts, gasket, and a 3/8 in. magnetic drain plug.
Notes: Includes two additional mounting bolts for the parking brake mounting brackets on 1982-2002 Chevrolet Camaro and Pontiac Firebird vehicles. The included mounting fasteners are 5/16 in.-18. If your housing uses metric 8mm x 1.25, those will need to be purchased separately.

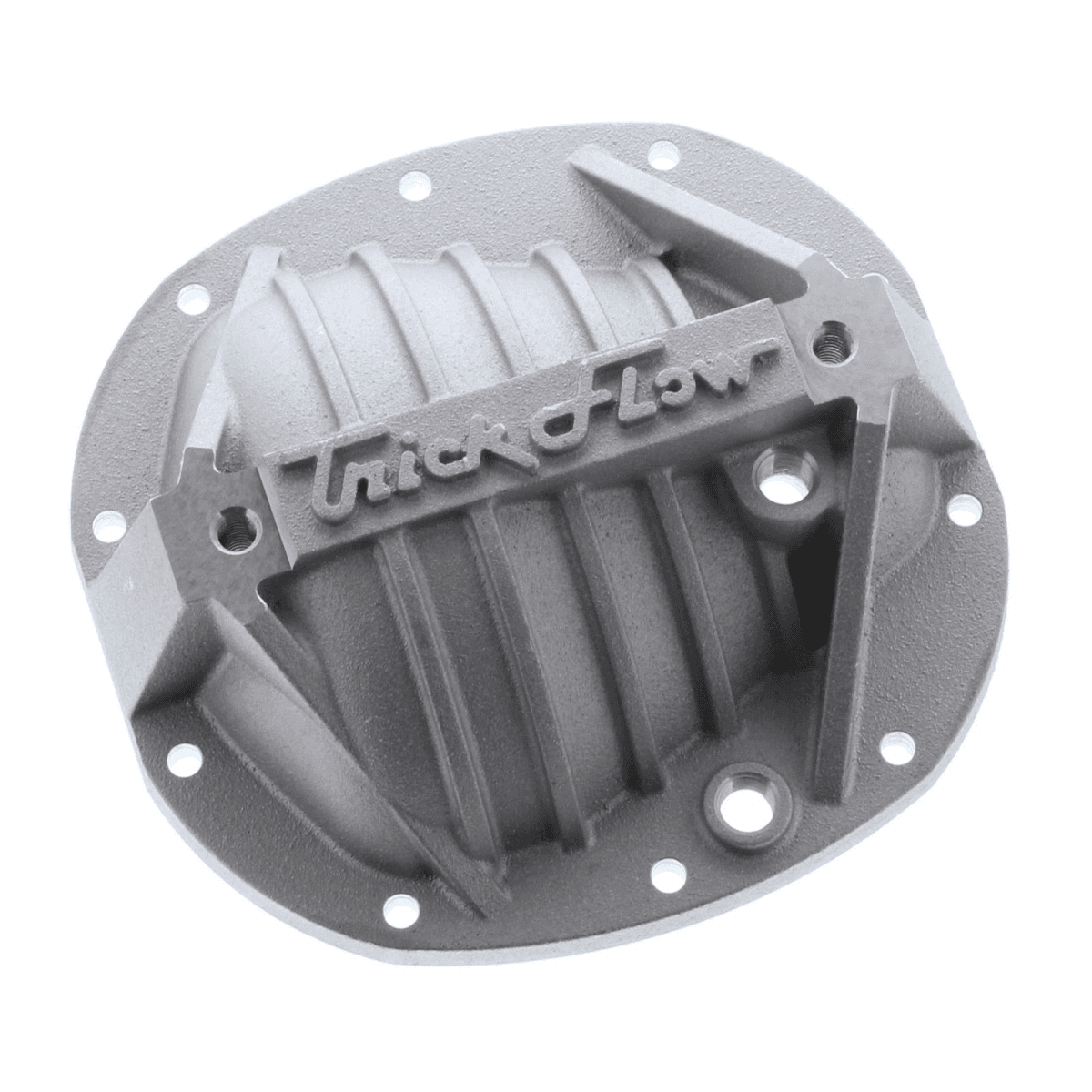

Differential Case Design Type: GM 7.5/7.625 in.
Cover Bolts: 10
Ring Gear Bolts: 10
Cover Material: Aluminum
Cover Color: Natural
Filler Plug Included: Yes
Drain Plug Included: Yes
Carrier Main Cap Support: Yes
Gaskets Included: Yes
Bolts/Studs Included: Yes
Quantity: Sold individually.
Notes: Includes two additional mounting bolts for the parking brake mounting brackets on 1982-2002 Chevrolet Camaro and Pontiac Firebird vehicles. The included mounting fasteners are 5/16 in.-18. If your housing uses metric 8mm x 1.25, those will need to be purchased separately.
