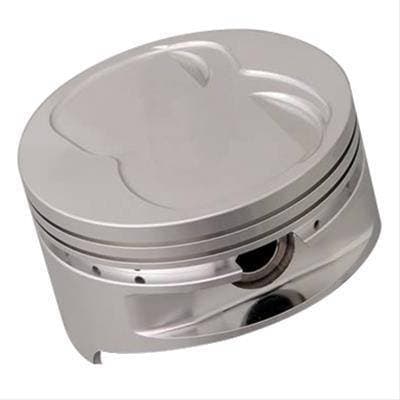

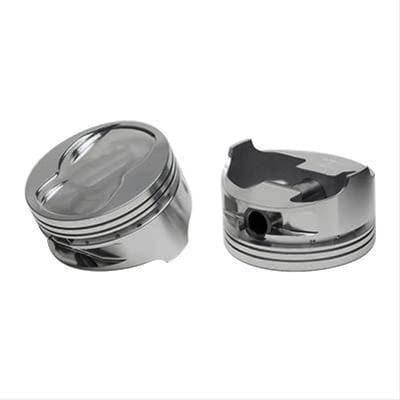

Trick Flow forged pistons are specifically designed to work with Trick Flow Twisted Wedge and Track Heat cylinder heads for Chevrolet and Ford engines. These fully skirted, lightweight pistons are precision-machined from premium 4032 aluminum alloy. They perfectly match the unique chamber and valve angles of the Twisted Wedge heads, making them ideal for more serious engine buildups.
Note: Specifically designed for the valve angles of the TFS Twisted Wedge SBF 514 head. Oil ring spacers are included.
Specs:
Part Number: TFS-51404111
Piston Rings Included: No
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Stroke: 3.400 in.
Engine Stroke Type: Stroked
Rod Length: 5.400 in.
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.090 in.
Piston Head Volume (cc): +7.50cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Set of 8.
