Part Number |
TFS-56417002-C00 |
|
Part Type |
Cylinder Heads |
|
Product Line |

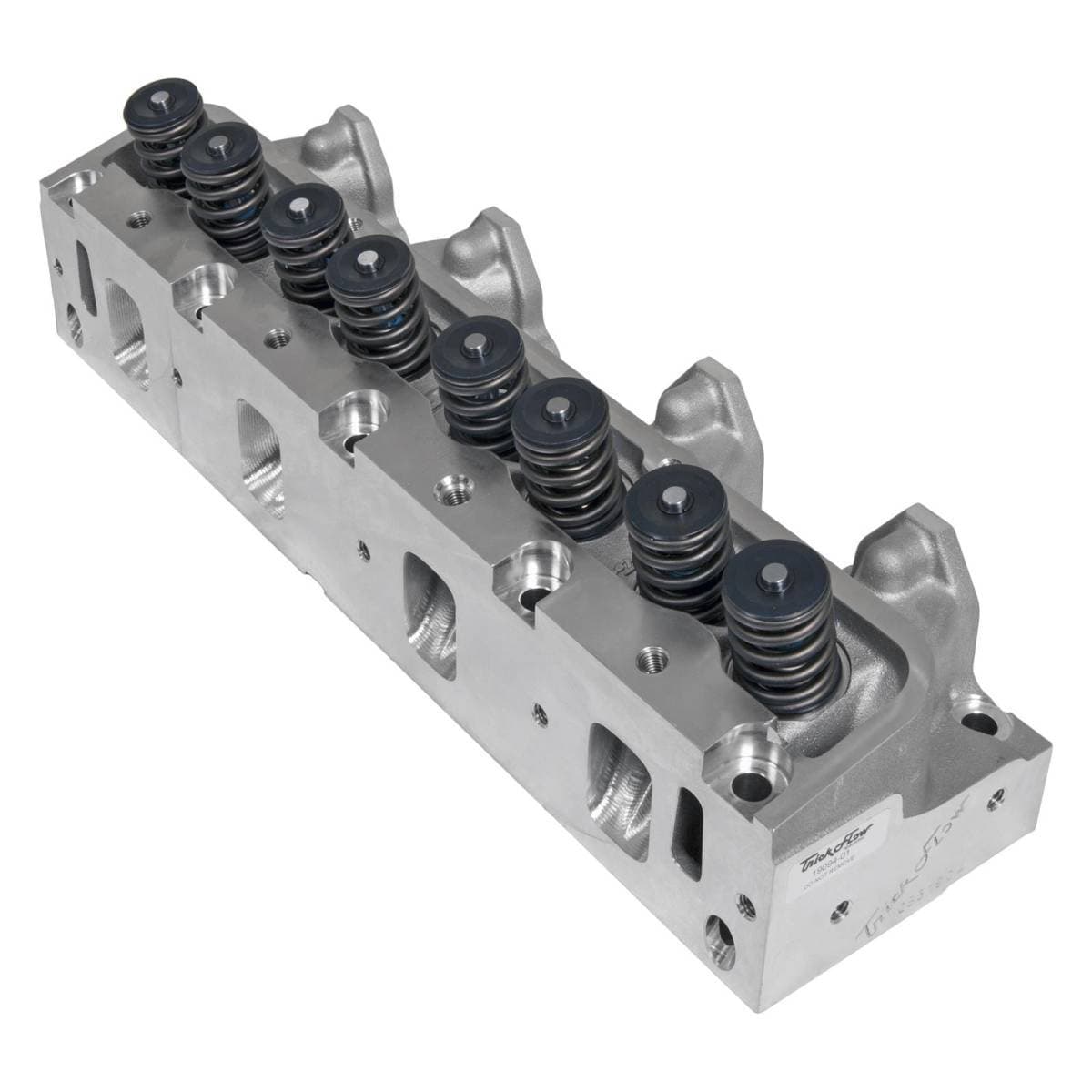

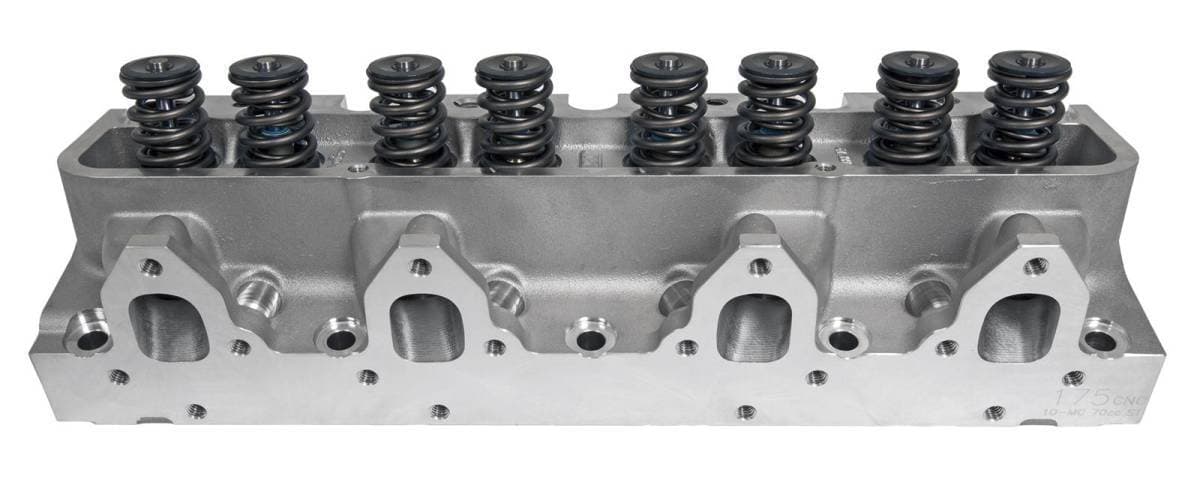

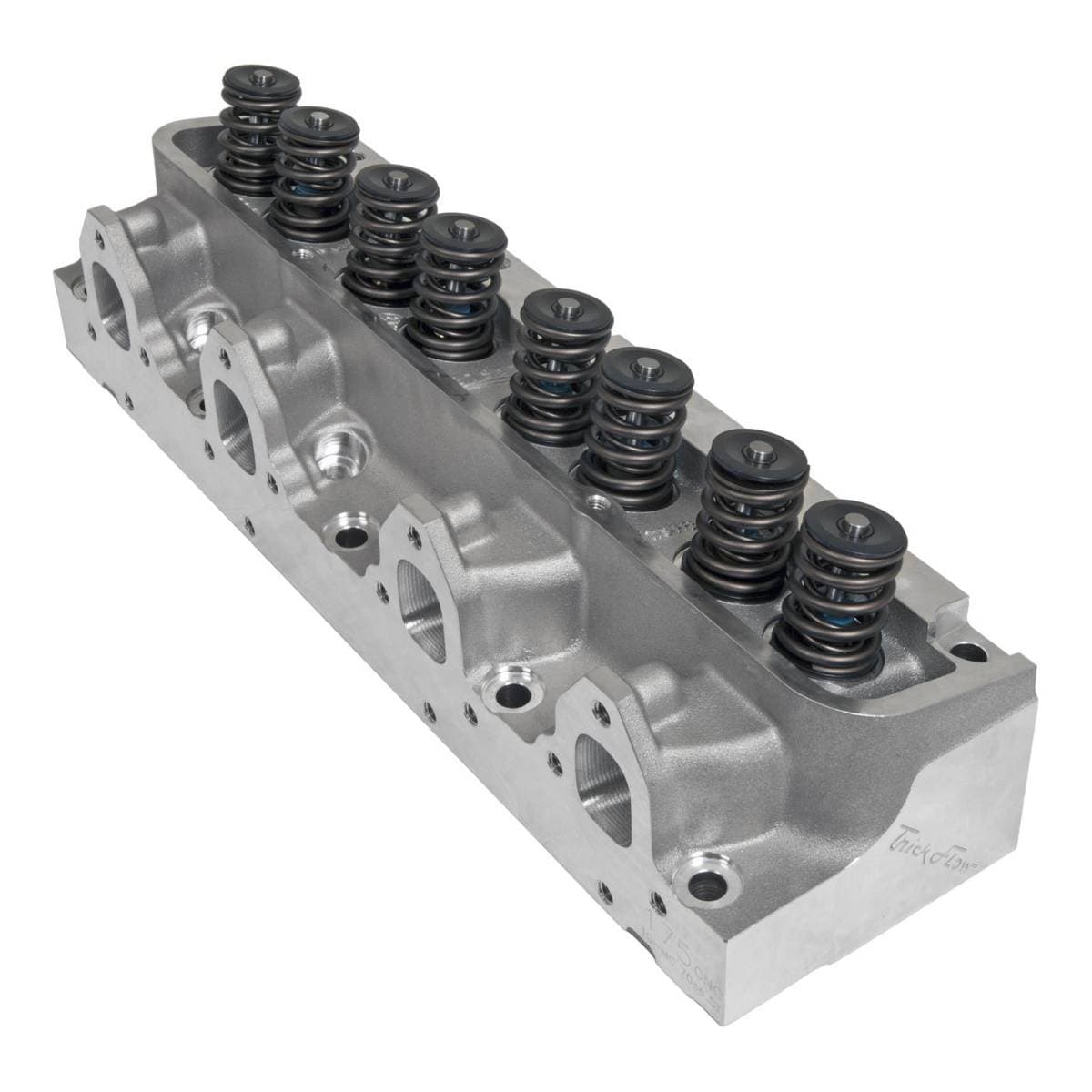

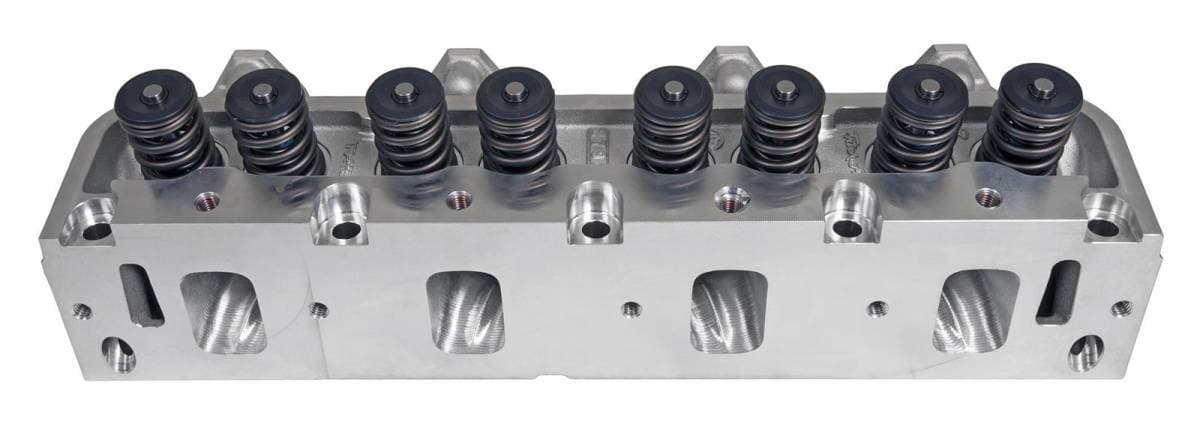

Trick Flow® PowerPort® 175 Cylinder Heads for Ford 390-428 |
|
Combustion Chamber Volume (cc) |
70 |
|
Intake Runner Volume (cc) |
175cc |
|
Exhaust Runner Volume (cc) |
113cc |
|
Cylinder Head Style |
Assembled |
|
Cylinder Head Material |
Aluminum |
|
Intake Port Shape |
Rectangular |
|
Intake Valve Diameter (in) |
2.190 in. |
|
Cylinder Head Finish |
Natural |
|
CNC-Machined Combustion Chamber |
Yes |
|
CNC-Machined Intake Runner |
Yes |
|
CNC-Machined Exhaust Runner |
Yes |
|

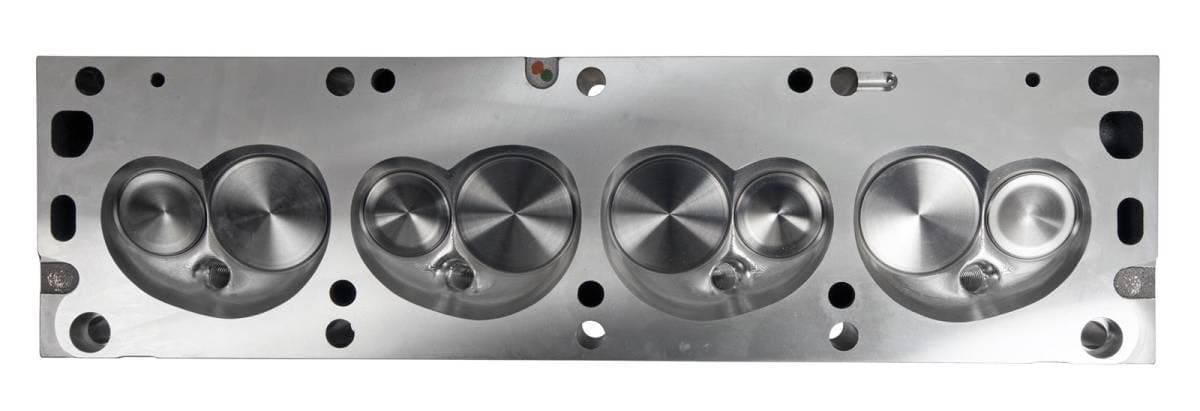

Combustion Chamber Style |
Heart |
|
Intake Port Location |
Standard |
|
Exhaust Port Shape |
D-port |
|
Exhaust Port Location |
Standard |
|
Spark Plug Style |
Angle |
|
Intake Valves Included |
Yes |
|
Exhaust Valves Included |
Yes |
|
Exhaust Valve Diameter (in) |
1.625 in. |
|
Valve Springs Included |
Yes |
|
Maximum Valve Lift (in) |
0.680 in. |
|
Camshaft Style |
Solid Roller / Large Hydraulic Roller |
|
Outside Diameter of Outer Spring (in) |
1.550 in. |
|
Damper Spring Included |
No |
|
Number of Springs Per Valve |
Dual |
|
Retainers Included |
Yes |
|
Retainer Material |
Steel |
|
Locks Included |
Yes |
|
Lock Style |
10 Degree |
|
Valve Stem Seals Included |
Yes |
| Minimum Bore Diamater | 4.050" |
|
Rocker Arm Studs Included |
No |
|
Rocker Arms Included |
No |
|
Rocker Arm Nuts Included |
No |
| Guideplates Included | No |
|
Valve Cover Mounting Style |
Perimeter bolt |
|
Accessory Bolt Holes Drilled |
Yes |
|
Intake Valve Angle |
13 |
|
Exhaust Valve Angle |
13 |
|
Valve Guides Included |
Yes |
|
Valve Guide Material |
Bronze |
|
Valve Seats Machined |
Yes |
|
Valve Seat Machine Style |
3-angle |
|
Valve Seat Material |
Ductile iron |
|
Steam Holes Drilled |
No |
|
Oiling Style |
Through head |
|
Machined for O-Ring |
No |
|
Heat Crossover |
No |
|
Quantity |
Sold individually. |
| Recommended Components | Head gasket: Fel Pro #1020, Fel Pro #8554PT Intake gasket: Fel Pro #1247 Exhaust gasket: Fel Pro #1442 Head bolts: ARP 155-3601 Head studs: ARP 155-4001 Rocker arms: Harland Sharp S4006NBK Rocker arm studs: TFS-56400613 Spark plugs: Autolite # 3924 |
