Part Number |
TFS-56417001-C00 |
|
Part Type |
Cylinder Heads |
|
Product Line |

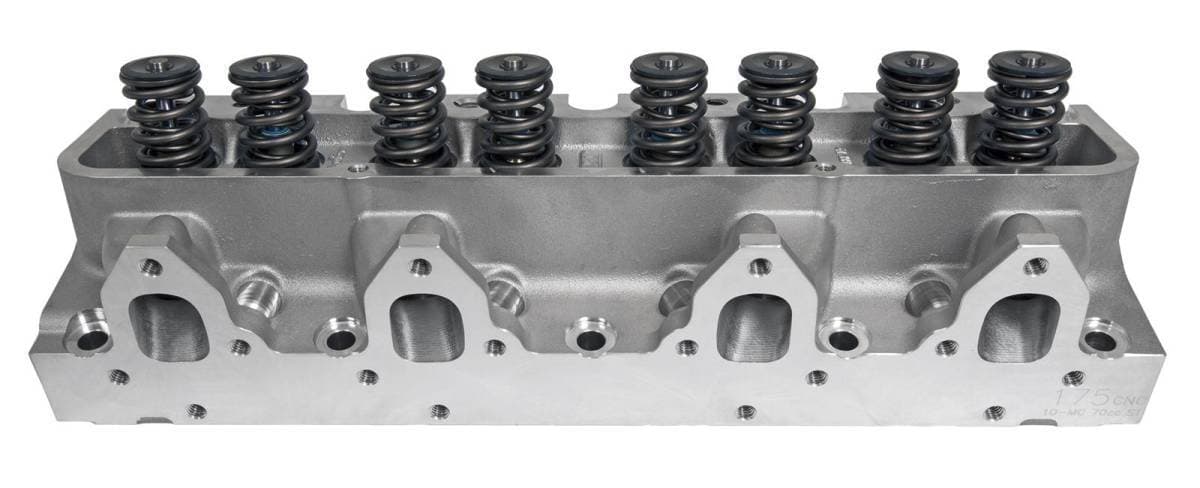

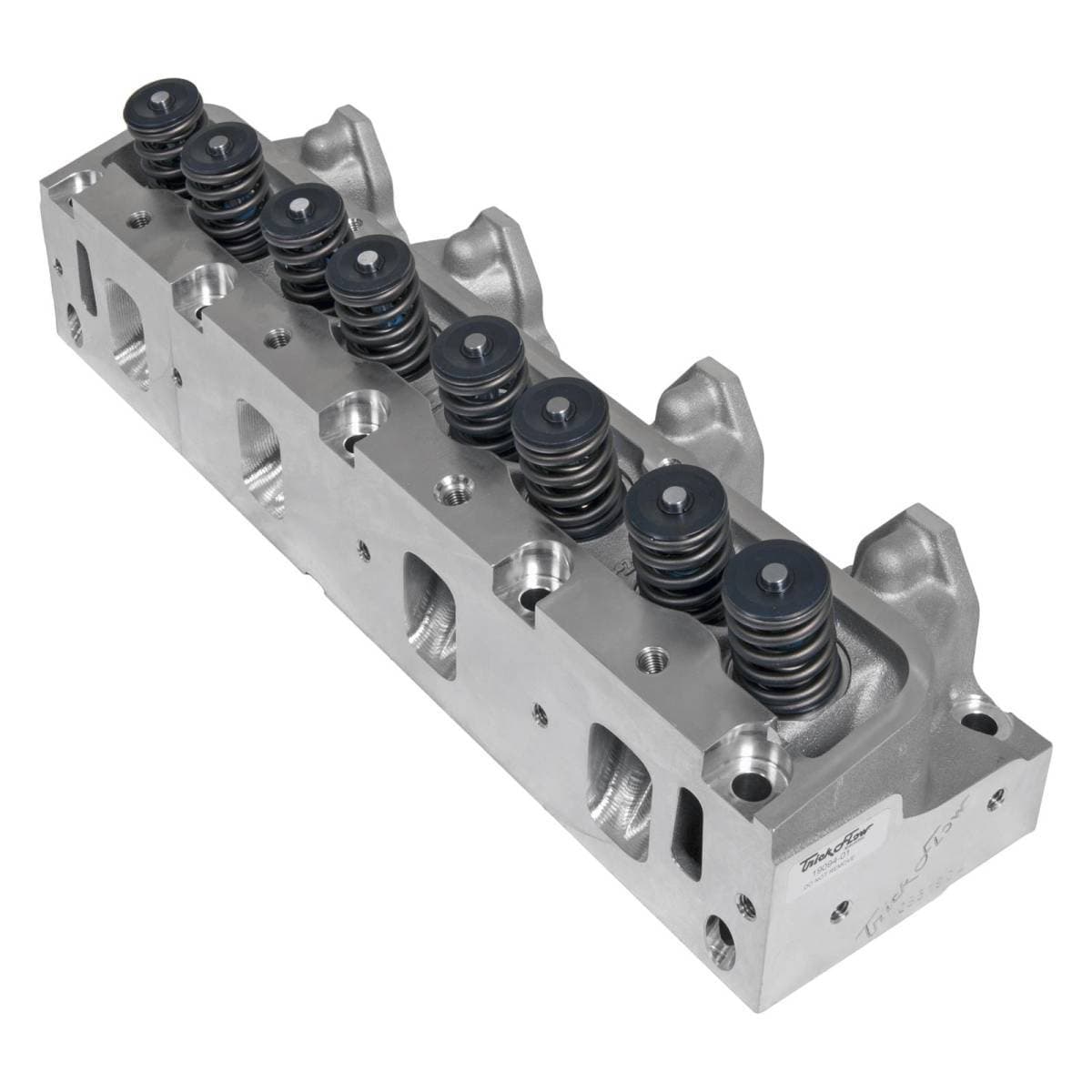

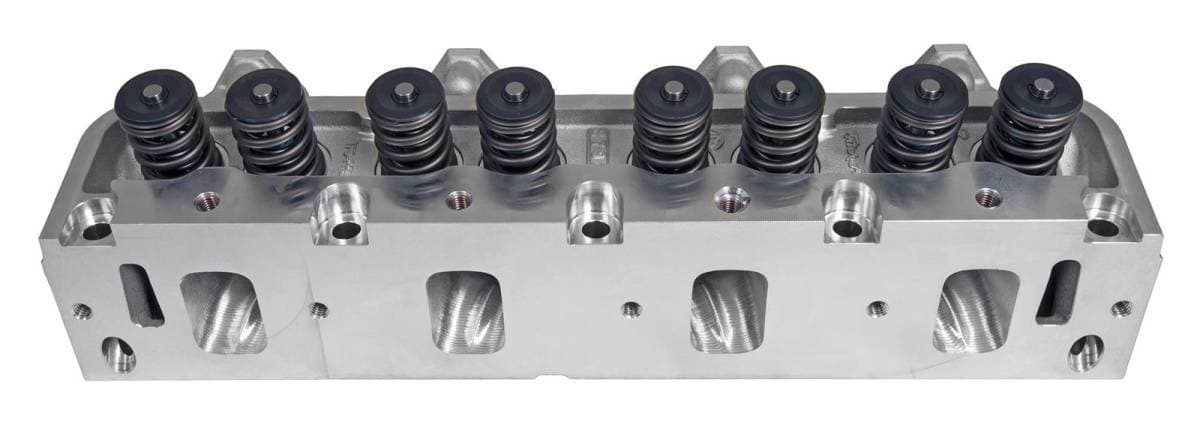

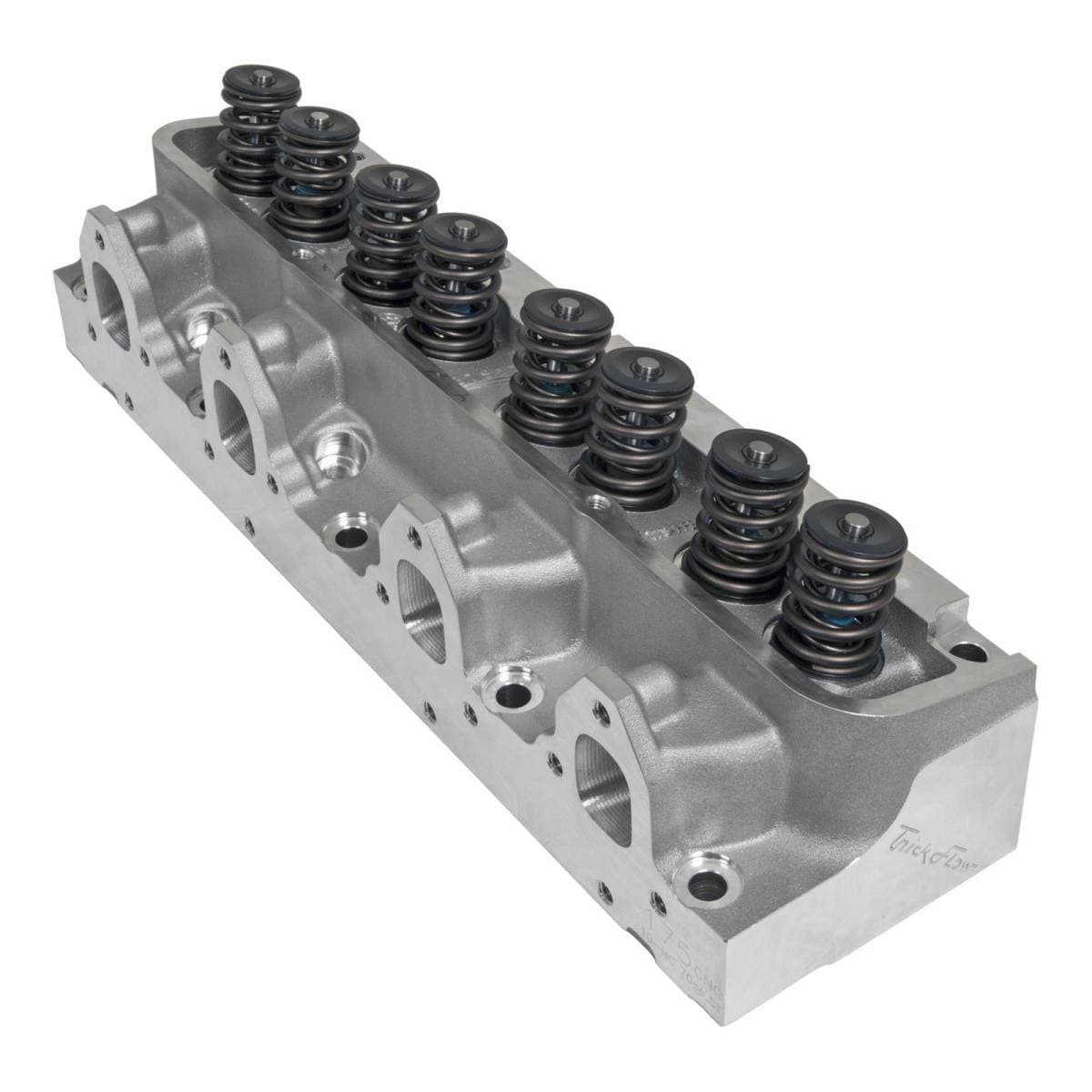

Trick Flow® PowerPort® 175 Cylinder Heads for Ford 360-390-428 |
|
UPC |
842645120480 |
|
Combustion Chamber Volume (cc) |
70 |
|
Intake Runner Volume (cc) |
175cc |
|
Exhaust Runner Volume (cc) |
113cc |
|
Cylinder Head Style |
Assembled |
|
Cylinder Head Material |
Aluminum |
|
Intake Port Shape |
Rectangular |
|
Intake Valve Diameter (in) |
2.190 in. |
|
Cylinder Head Finish |
Natural |
|
CNC-Machined Combustion Chamber |
Yes |
|
CNC-Machined Intake Runner |
Yes |
|
CNC-Machined Exhaust Runner |
Yes |
|

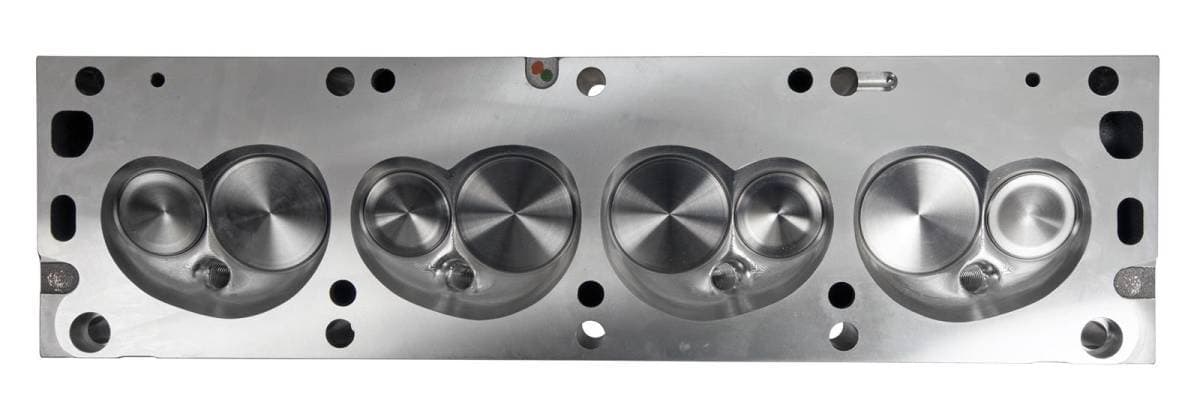

Combustion Chamber Style |
Heart |
|
Intake Port Location |
Standard |
|
Exhaust Port Shape |
D-port |
|
Exhaust Port Location |
Standard |
|
Spark Plug Style |
Angle |
|
Intake Valves Included |
Yes |
|
Exhaust Valves Included |
Yes |
|
Exhaust Valve Diameter (in) |
1.625 in. |
|
Valve Springs Included |
Yes |
|
Maximum Valve Lift (in) |
0.650 in. |
|
Outside Diameter of Outer Spring (in) |
1.460 in. |
|
Damper Spring Included |
No |
|
Number of Springs Per Valve |
Dual |
|
Retainers Included |
Yes |
|
Retainer Material |
Steel |
|
Locks Included |
Yes |
|
Lock Style |
7 degree |
|
Valve Stem Seals Included |
Yes |
|
Rocker Arm Studs Included |
No |
| Minimum Bore Diamater | 4.050" |
|
Rocker Arms Included |
No |
|
Rocker Arm Nuts Included |
No |
|
Guideplates Included |
No |
|
Valve Cover Mounting Style |
Perimeter bolt |
|
Accessory Bolt Holes Drilled |
Yes |
|
Intake Valve Angle |
13 |
|
Exhaust Valve Angle |
13 |
|
Valve Guides Included |
Yes |
|
Valve Guide Material |
Bronze |
|
Valve Seats Machined |
Yes |
|
Valve Seat Machine Style |
3-angle |
|
Valve Seat Material |
Ductile iron |
|
Steam Holes Drilled |
No |
|
Oiling Style |
Through head |
|
Machined for O-Ring |
No |
|
Heat Crossover |
No |
|
Quantity |
Sold individually. |
| Recommended Components |
Head gasket: Fel Pro #1020, Fel Pro #8554PT |
