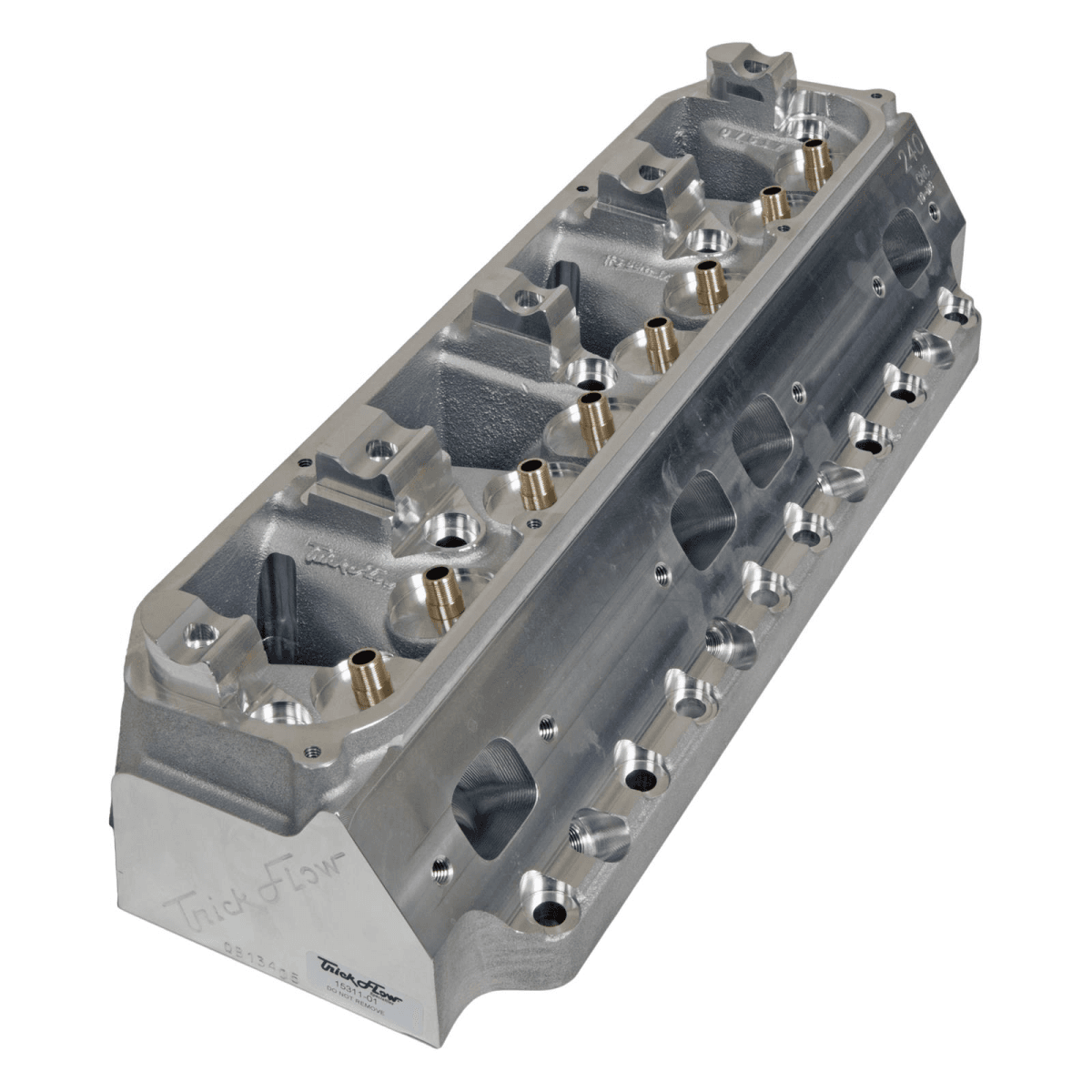

Trick Flow PowerPort® 240 heads for big block Mopar are superior to stock and other aftermarket aluminum heads for several reasons. PowerPort 240 heads are made from premium grade A356-T61 aluminum because it is very strong and weighs a lot less than cast iron. The rocker shaft and runner areas have been enhanced to increase strength, and the oil holes for the rocker shafts were relocated to improve oiling. The shape of the runners was optimized to increase flow velocity and add much needed strength to the shaft bosses. The combustion chambers and runners are fully CNC Street Ported to guarantee proper dimensional accuracy and balanced flow from runner-to-runner.
Other advantages of PowerPort 240 heads over stock heads include clearance for 3/8" pushrods, ductile iron valve seats, bronze alloy valve guides, and multi-angle valve seat machining performed on precision Serdi® equipment. Assembled cylinder heads come with premium 11/32" stainless steel valves, Trick Flow by PAC Racing valve springs, chromoly and titanium retainer options, and 7° or 10° steel valve stem locks.
Trick Flow designed the PowerPort 240 heads to use all factory-style big block Mopar pistons, roller rocker arms, intake manifolds, and headers. They are available fully assembled or as bare castings. Sold individually.
Notes:
Combustion Chamber Volume (cc): 78
Intake Runner Volume (cc): 240cc
Exhaust Runner Volume (cc): 74cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.190 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Oval
Exhaust Port Location: Standard
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.760 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 15
Exhaust Valve Angle: 15
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through head
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: Longer than stock pushrods may be required. Minimum bore size is 4.320 in.
