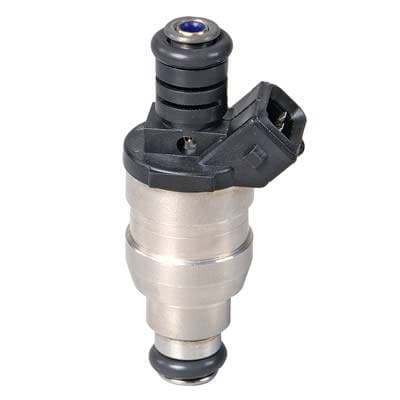

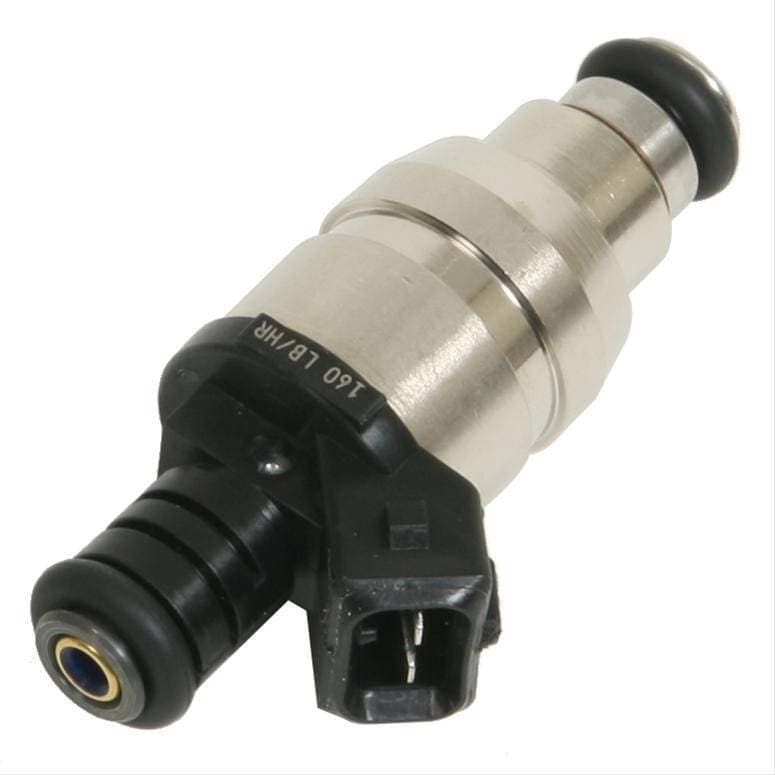

This is a set of 8 Trickflow Wide Body Bosch Style 160 lb/hr h. These have EV1 electrical connections. With electronically drilled and machined disc-type fuel control valves, plus improved nozzles and coil windings, Trick Flow TFX fuel injectors atomize fuel better, resist clogging, are quieter, and require less energy to operate than other aftermarket injectors.
Low magnetic stainless steel injector bodies prevent corrosion from underhood contaminates and seal the injectors from moisture contamination. OEM-style clip grooves secure the injectors to fuel rails and eliminate possible fuel leaks. Viton fluoroelastomer O-rings seal the injectors to the fuel rails and intake manifold to prevent fuel and air leaks under extreme operating conditions. High-quality, 1/2 micron filter screens keep foreign debris and contaminants from entering the injectors to ensure proper performance and a long life cycle. TFX fuel injectors are 100% duty cycle tested to ensure reliability and performance. All flow values are at 3 bar (43.5 psi).
Notes: Tuning required.
Included:

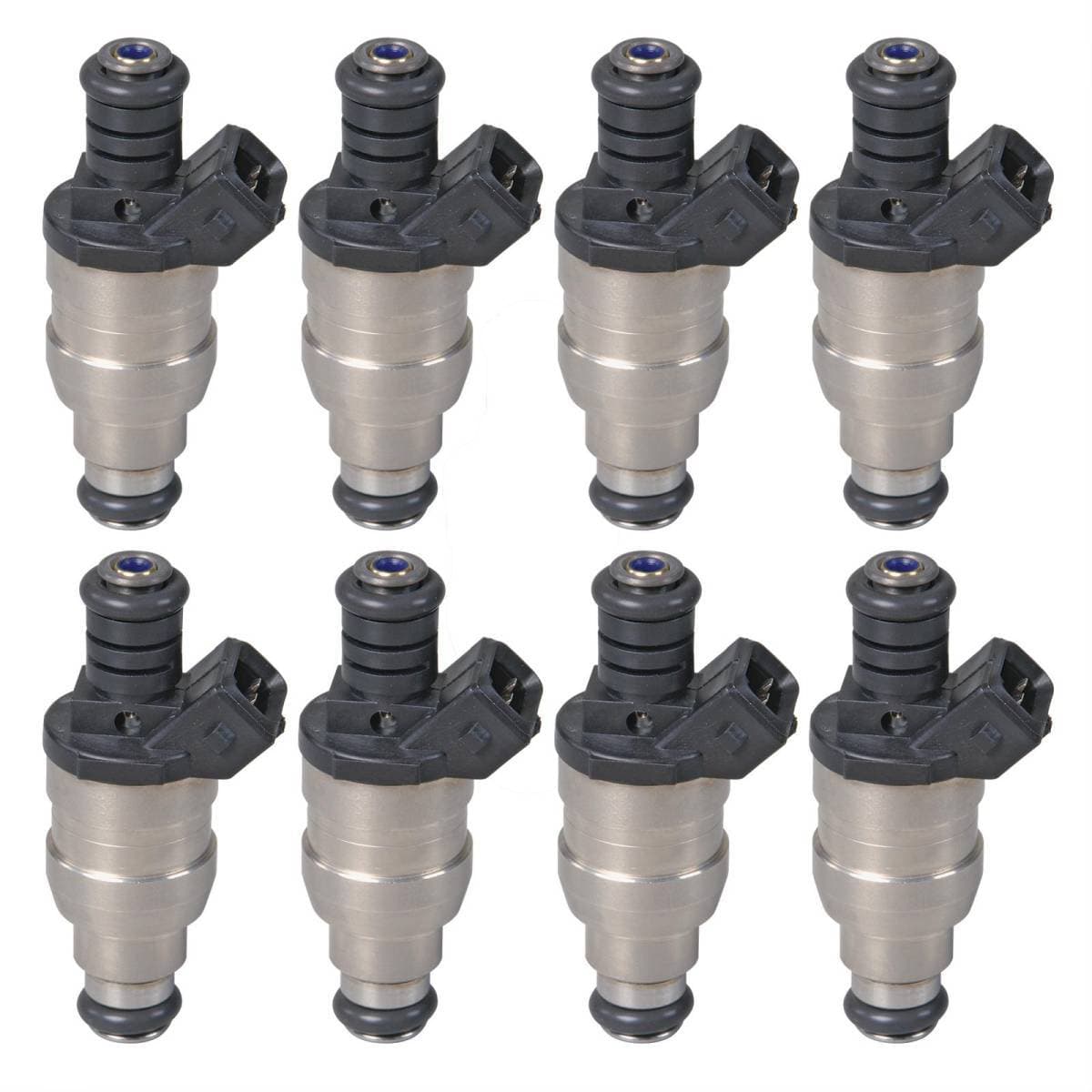

8 Wide Body Bosch style injectors. The photo is an example of a similar set.
Specs:
Part Number: TFS-89160
Injector Advertised Flow Rate (lbs./hr.): 160 lbs./hr.
Injector Advertised Flow Rate (cc/min.): 1,682.0cc/min.

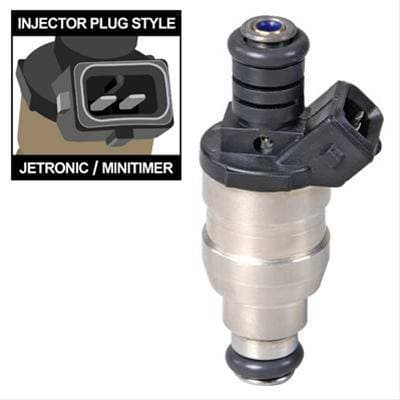

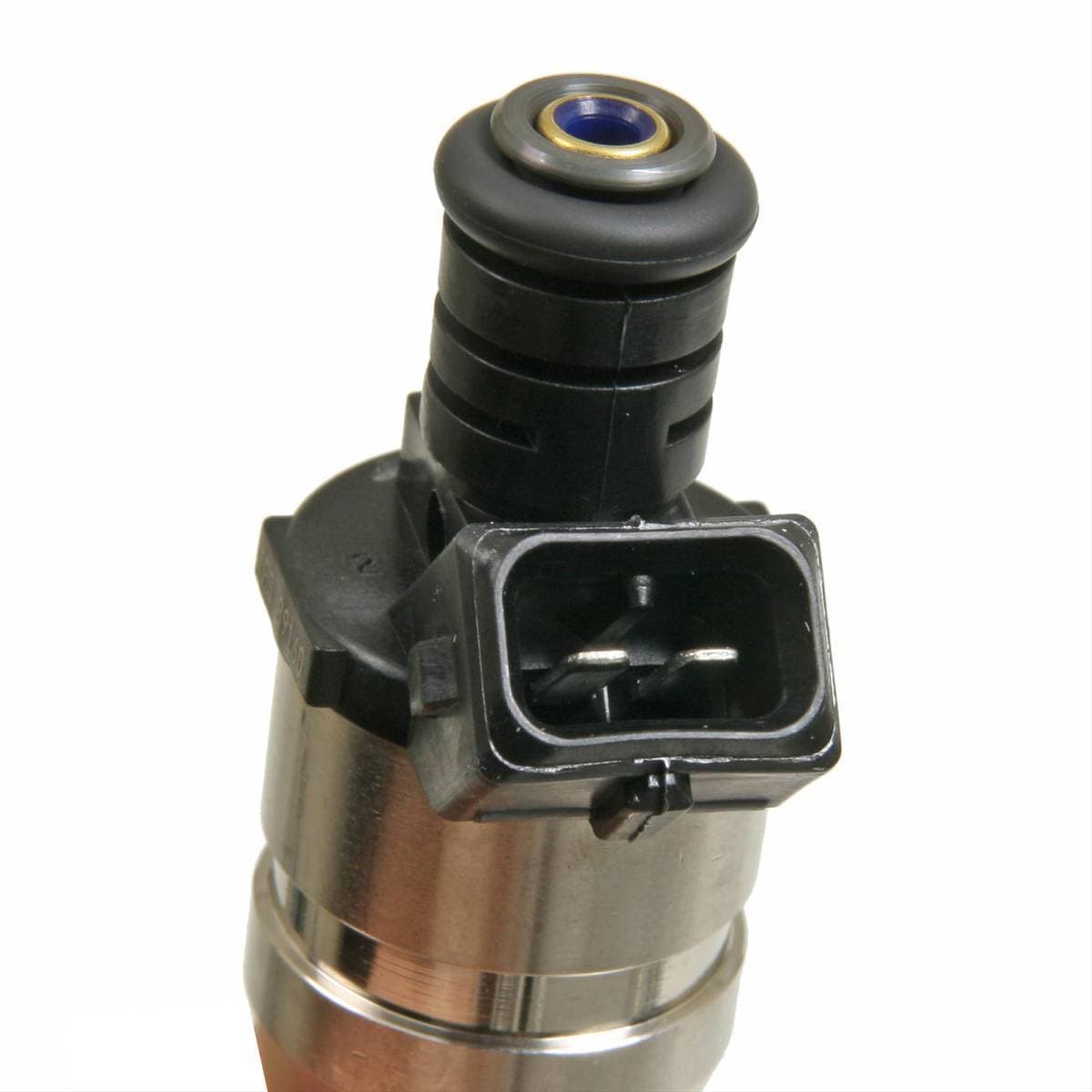

Injector Plug Style: Jetronic/Minitimer
Injector Body Style: EV1
Injector Impedance: 2.0 ohms
Driver Type: 4/1A peak and hold
Overall Height (in.): 2.27 in.
Seat to Seat Height (in.): 2.270 in.
Seat to Seat Height (in.): 2.272 in.
Manifold O-Ring Outside Diameter (in.): 0.550 in.
Fuel Rail O-Ring Outside Diameter (in.): 0.550 in.
Outside Diameter (in.): 0.945 in.
O-Rings Included: Yes
Quantity: Set of 8.
Notes: Tuning required.
