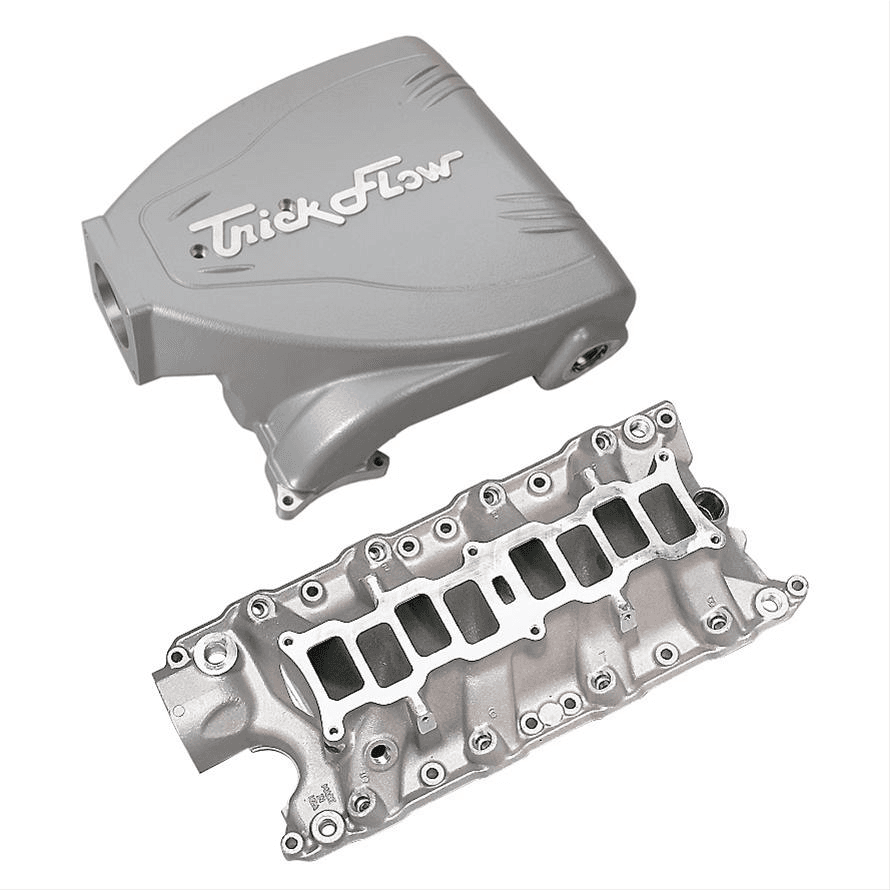

Trick Flow StreetBurner Intake Manifolds for Ford 5.0L Silver

Trickflow StreetBurner Intake Manifold For Ford 5.0L Engines - Silver Finish

Trick Flow’s StreetBurner EFI Intake Manifolds are computer-engineered to deliver ideal airflow distribution and velocity to increase low-end torque and provide superior high-rpm horsepower. The manifolds improve airflow velocity and performance from idle to 5,500 RPM.

Note: This intake manifold is 50-state legal, CARB EO# D-369-3

Features:
Part Number: TFS-51500001
Cylinder Head Configuration: Stock
Fuel Injection Style: Multi-port
Basic Operating RPM Range: Idle-5,500
Intake Section Included: Complete
Throttle Body Bore Size: 75mm
Engine Block Deck Height: Standard deck
Injectors Included: No
Multi-Port Fuel Rails Included: No
EGR: Yes
Aftermarket Fuel Rail Required: No
Throttle Body Included: No
Supplemental Bosses Cast-In: No
Supplemental Bosses Machined: No
Runners Included: No
Runners Removable: No
Plenum Material: Aluminum
Plenum Finish: Silver powdercoated
Base Material: Aluminum
Base Color: Natural
CARB EO Number(s): D-369-3
Emissions: California EO Approved

Additional features include:
Small cross-section with 12.200 in. runners
Overall height to the upper manifold flange is 10.200 in.
Overall height to the lower manifold flange is 4.625 in.
2.000 in. x 1.200 in. port size at head
2.000 in. x 1.200 in. port size at mating flange
