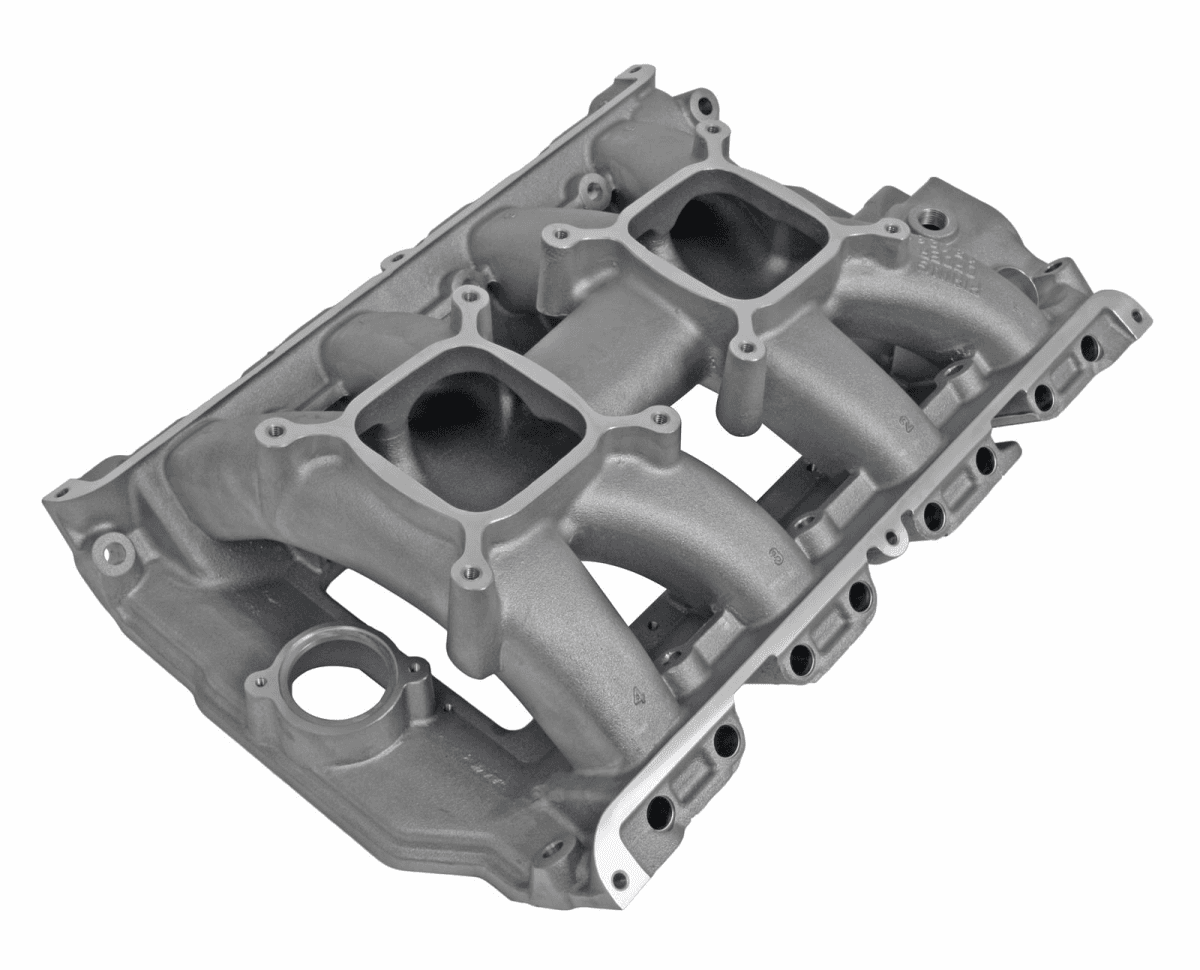

Ford FE fans know that when it comes to building a Ford FE engine, nostalgia and horsepower go hand-in-hand. One classic manifold that has never gone out of style is the rare Tunnel Wedge intake. It was a landmark design 50 years ago, but Trick Flow knew that with some modern ingenuity and manufacturing know-how they could make it even better. So Trick Flow’s high performance engineers went to work and the R-Series Tunnel Wedge Intake Manifold for Ford 390-428 was born.

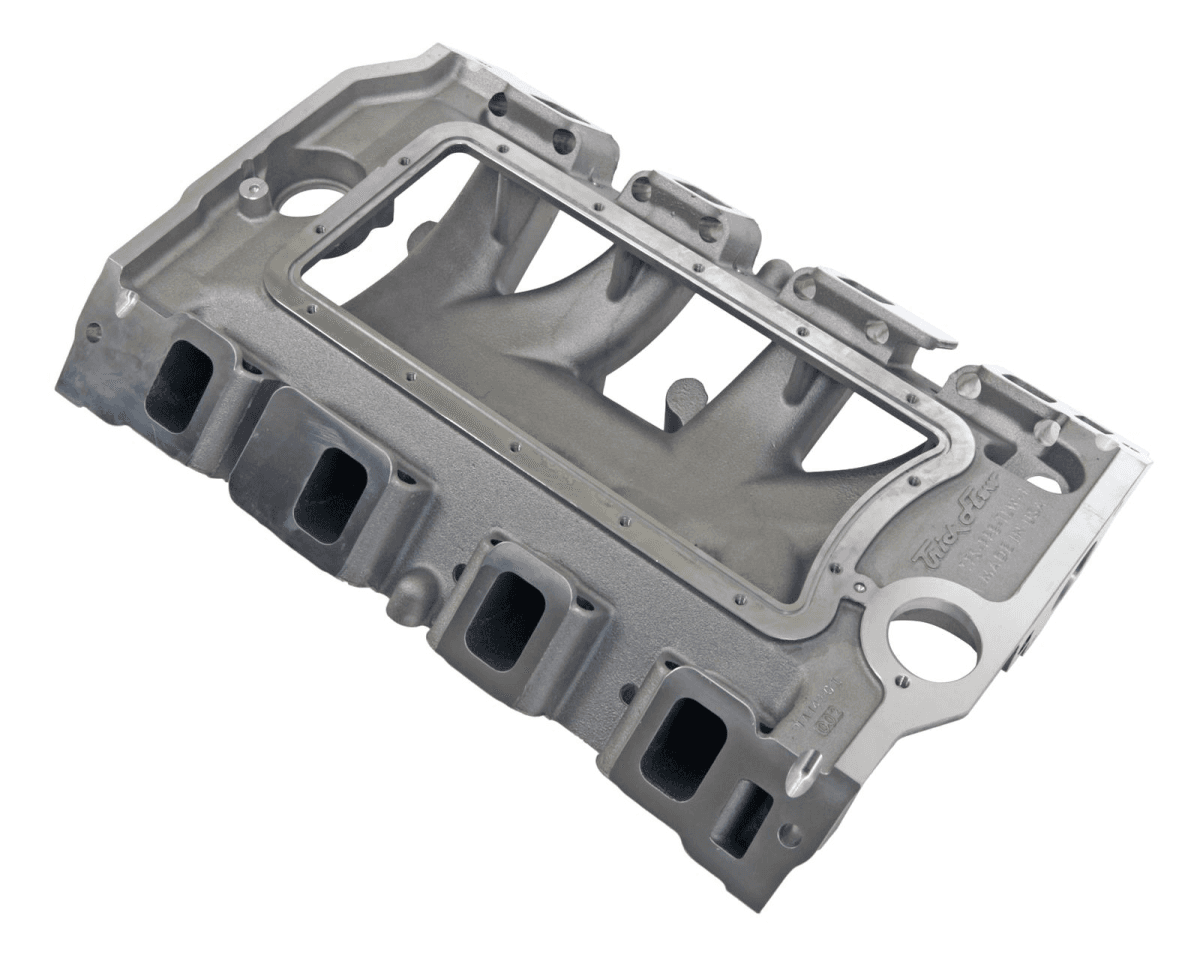

Part of the original Tunnel Wedge’s cool factor was its appearance, so Trick Flow took special care to match the looks of the legendary OEM version while maintaining the original carburetor locations. On the inside, Trick Flow made noticeable improvements to the port design while also incorporating a much-needed O-ringed sealed bottom plate. Cast in premium grade A319 aluminum, the manifold is topped with carb flanges machined for original Ford FE Tunnel Wedge-type square bore carburetors. Mounting hardware is included.
Specs:
Part Number: TFS-56400114
Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Carburetor Quantity: Two
Intake Style: Single plane
Basic Operating RPM Range: 4,000-7,500
Intake Manifold Height: 6.600 in.
Intake Color: Natural
Intake Material: Aluminum
EGR: No
Notes: This medium rise manifold is designed to use the original style Ford FE dual carburetor and throttle linkage. Please refer to page 3 in the instructions for additional information.

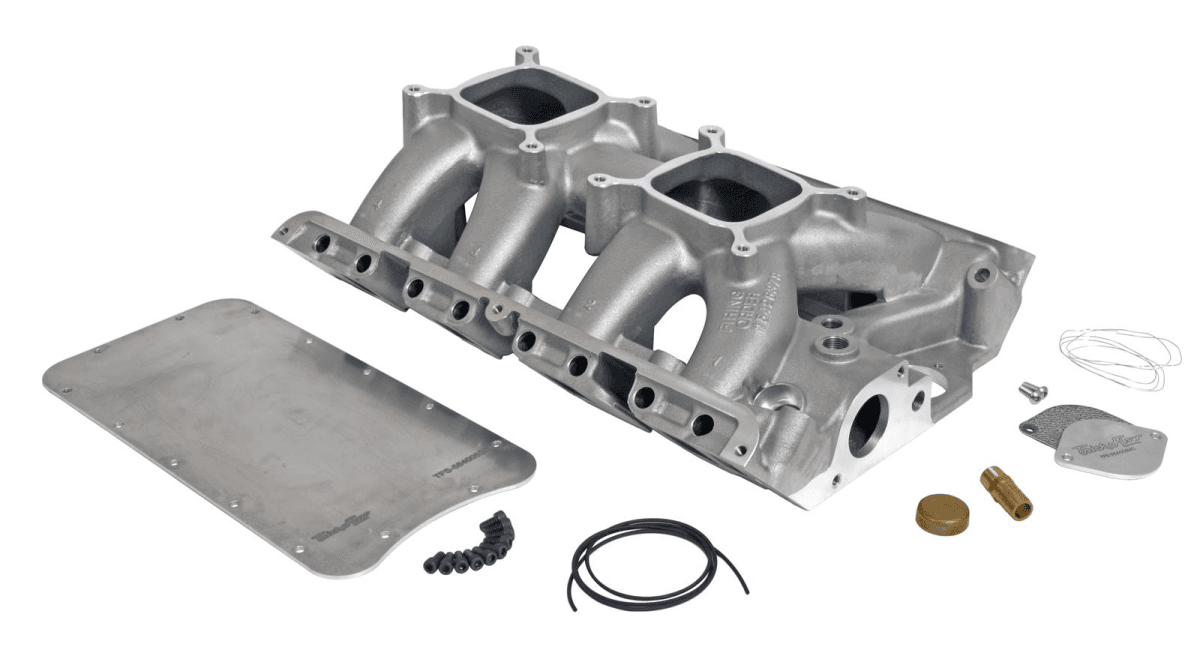

What Comes In The Box?:
1) Trick Flow R-Series Tunnel Wedge Intake
1) Tunnel Wedge Intake Valley Plate Kit
1) Tunnel Wedge Intake Breather Cover Kit
1) Brass Expansion Plug
1) 3/8” NPT x 5/8” Barbed Fitting
