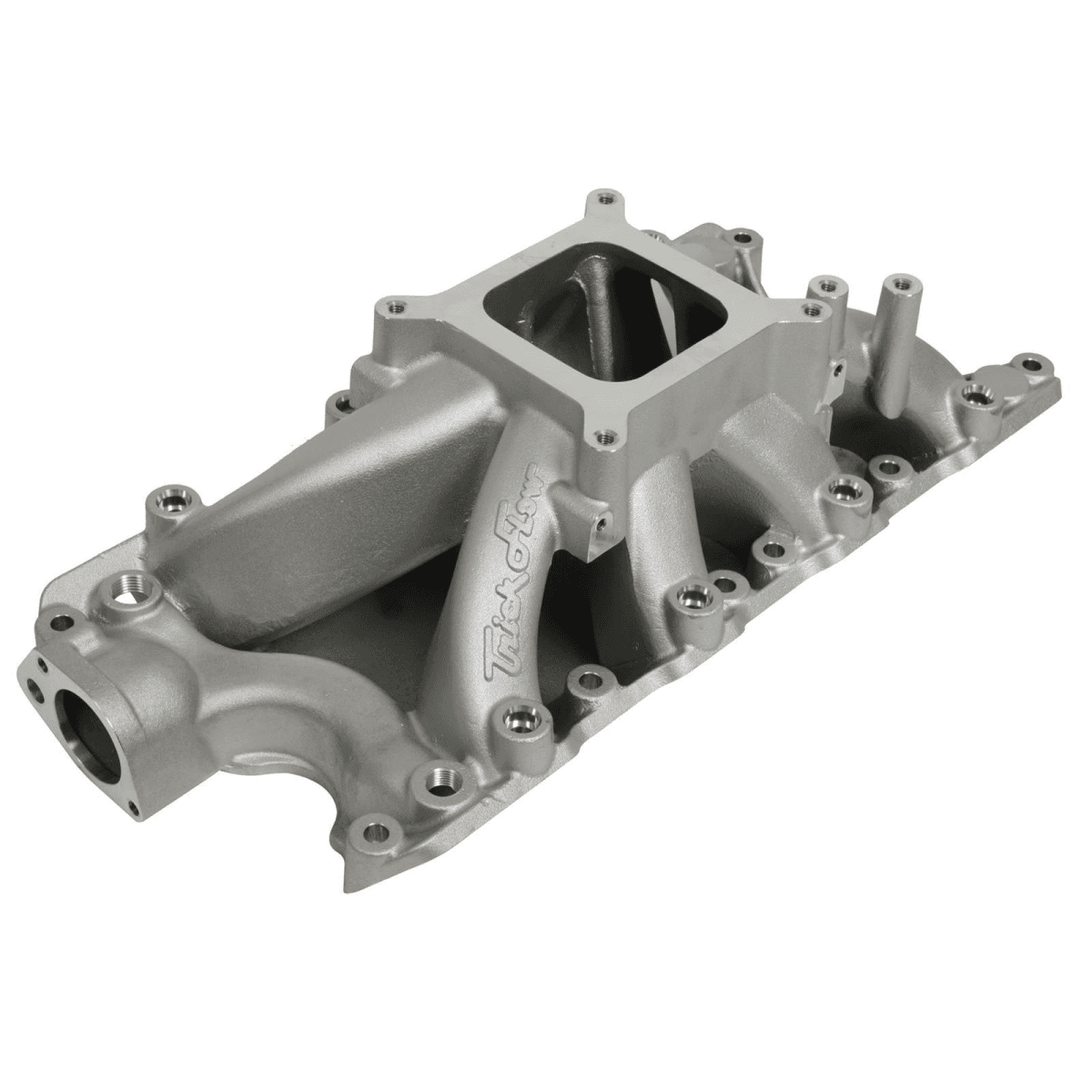

Take the guesswork—along with meticulous work necessary for accurate port matching—out of dialing in your big cube engine build for huge power numbers with Trick Flow's R-Series 11R 227 port-matched intake manifold.

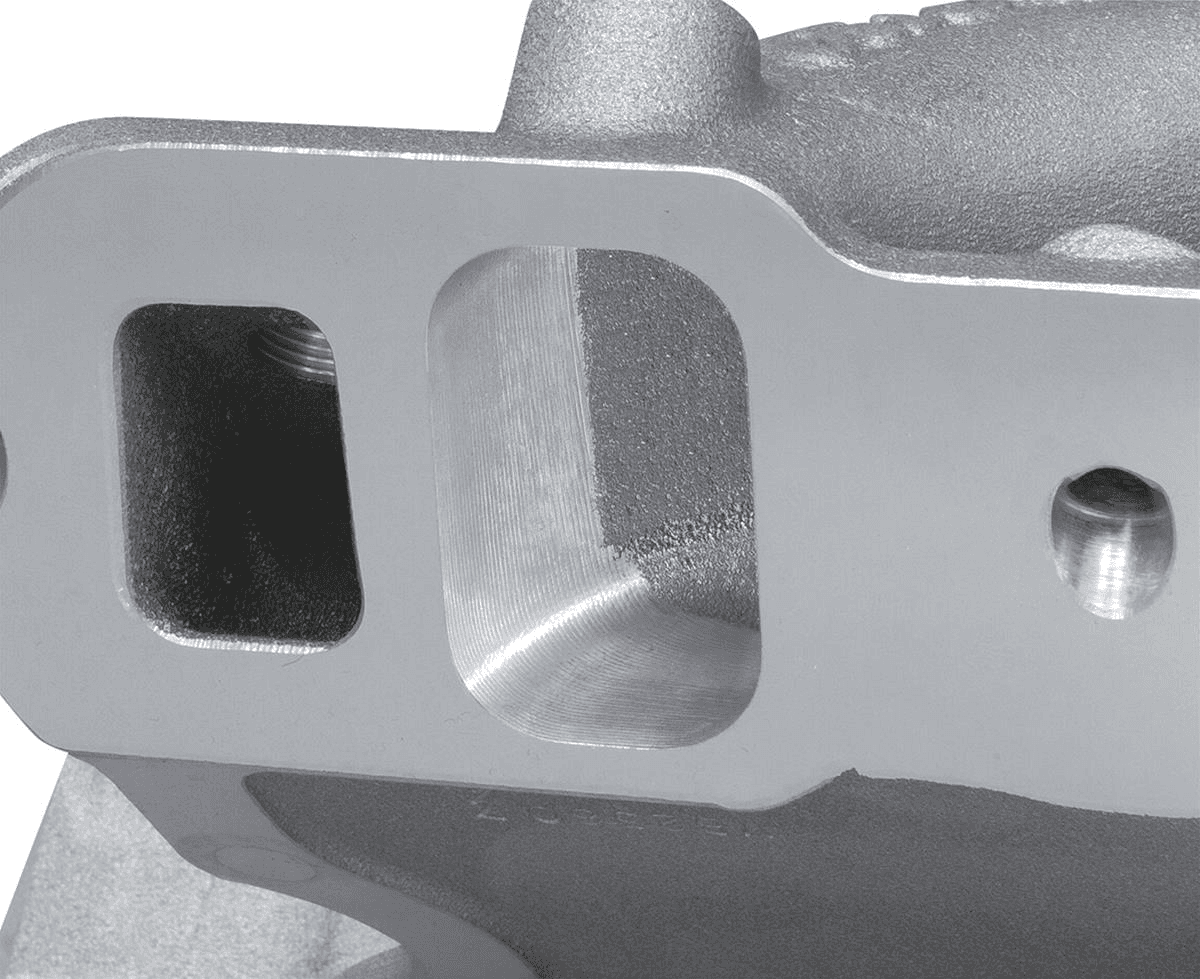

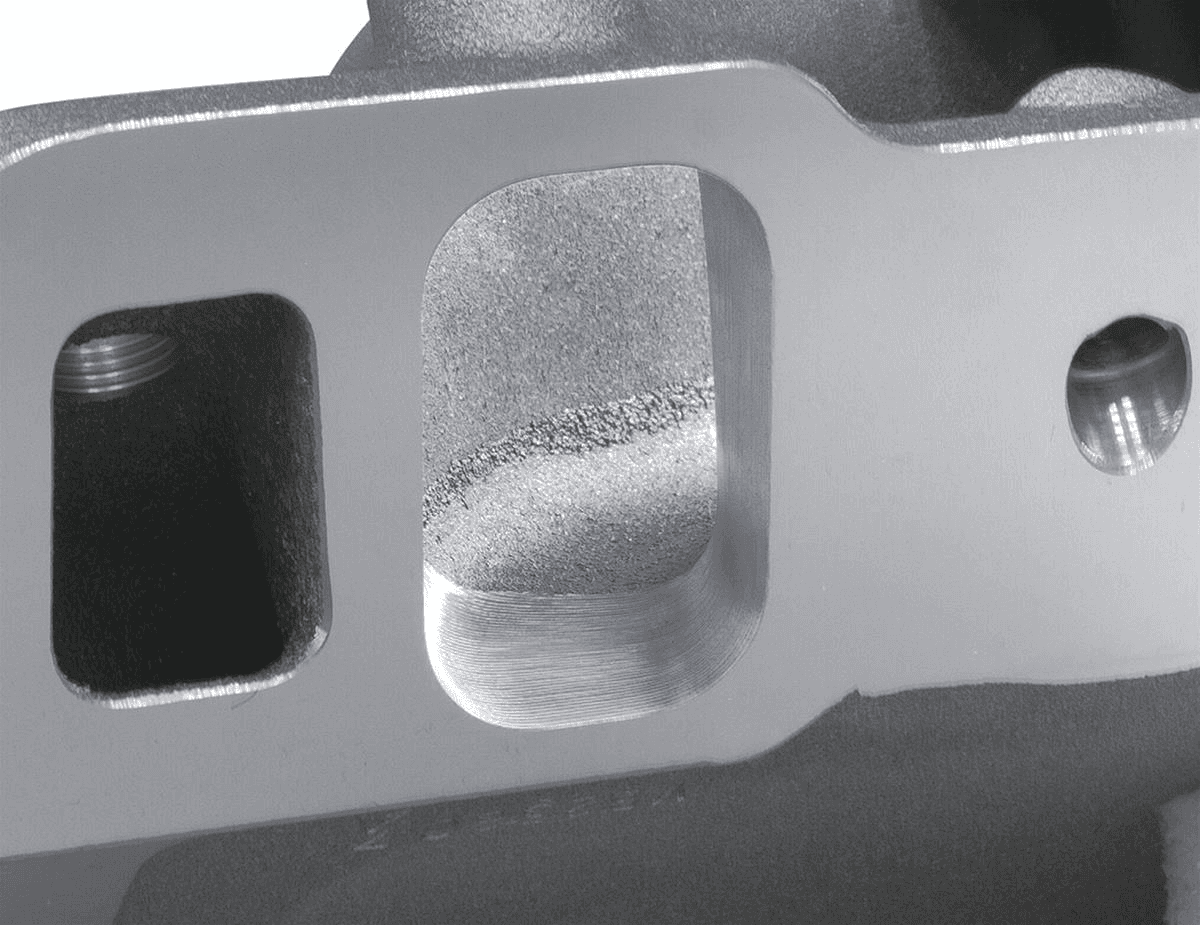

The A319 aluminum manifold's CNC Competition Ported runner treatment has been specially designed and machined with perfect port alignment on Twisted Wedge® 11R 227 cylinder heads. The high-flow, one-piece spider-type single plane design with raised plenum floor puts the powerband in the 3,500-7,500-plus RPM range. Integral bosses allow adding nitrous nozzles. Accepts Holley 4150-style square bore carburetors.
Note: This intake manifold is port matched to Trickflow's 11R 227cc Heads PN: TFS-5261T561-C04 or TFS-5261T661-C04
Intake Manifold Specs:
Intake Section Included: Complete
Engine Block Deck Height: Standard 8.2" deck 302
Intake Style: Single plane
Basic Operating RPM Range: 3,500-7,500
Intake Manifold Height: 6.225 in.
Intake Finish: Natural
Intake Material: Aluminum
EGR: No
*Does not include fuel rails.
