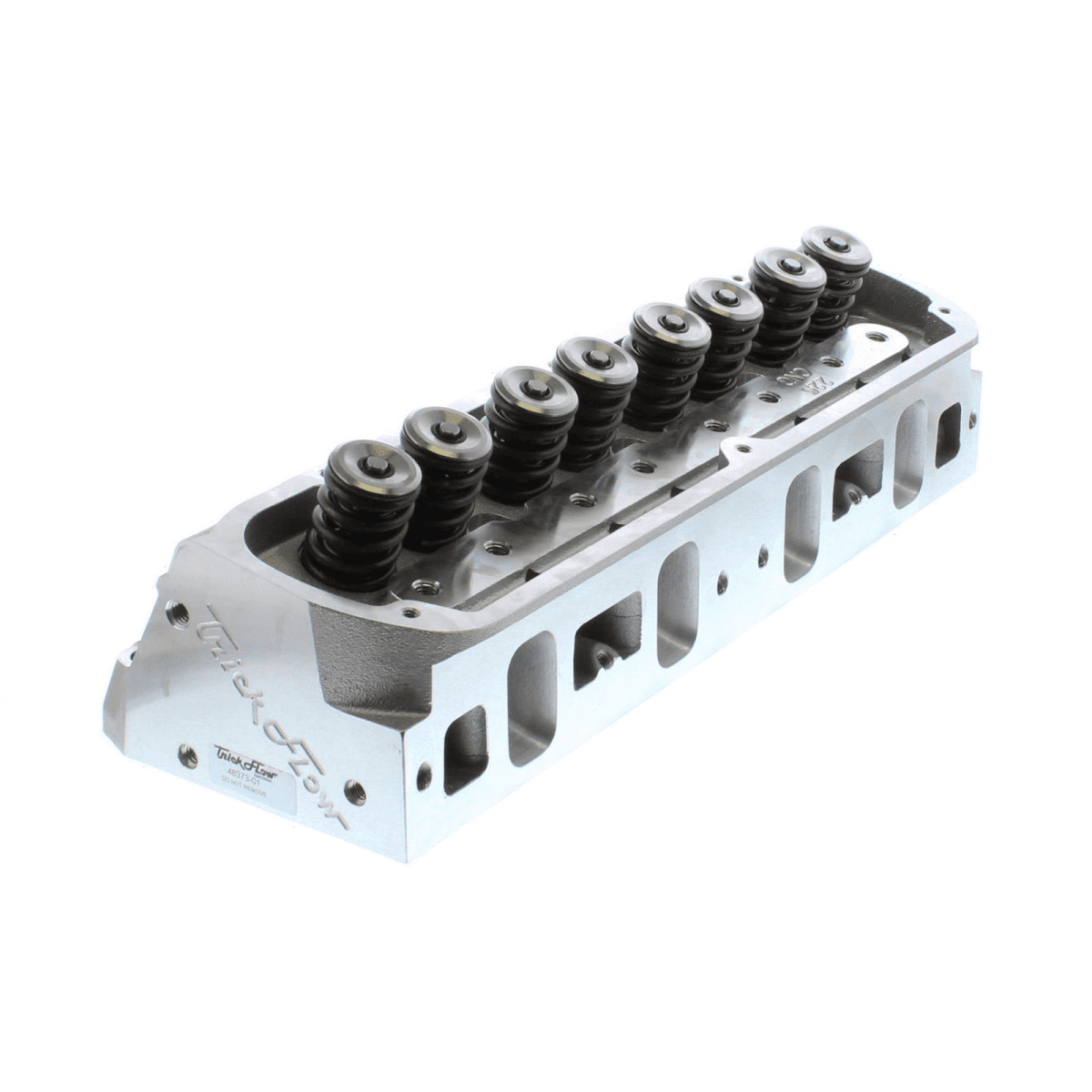

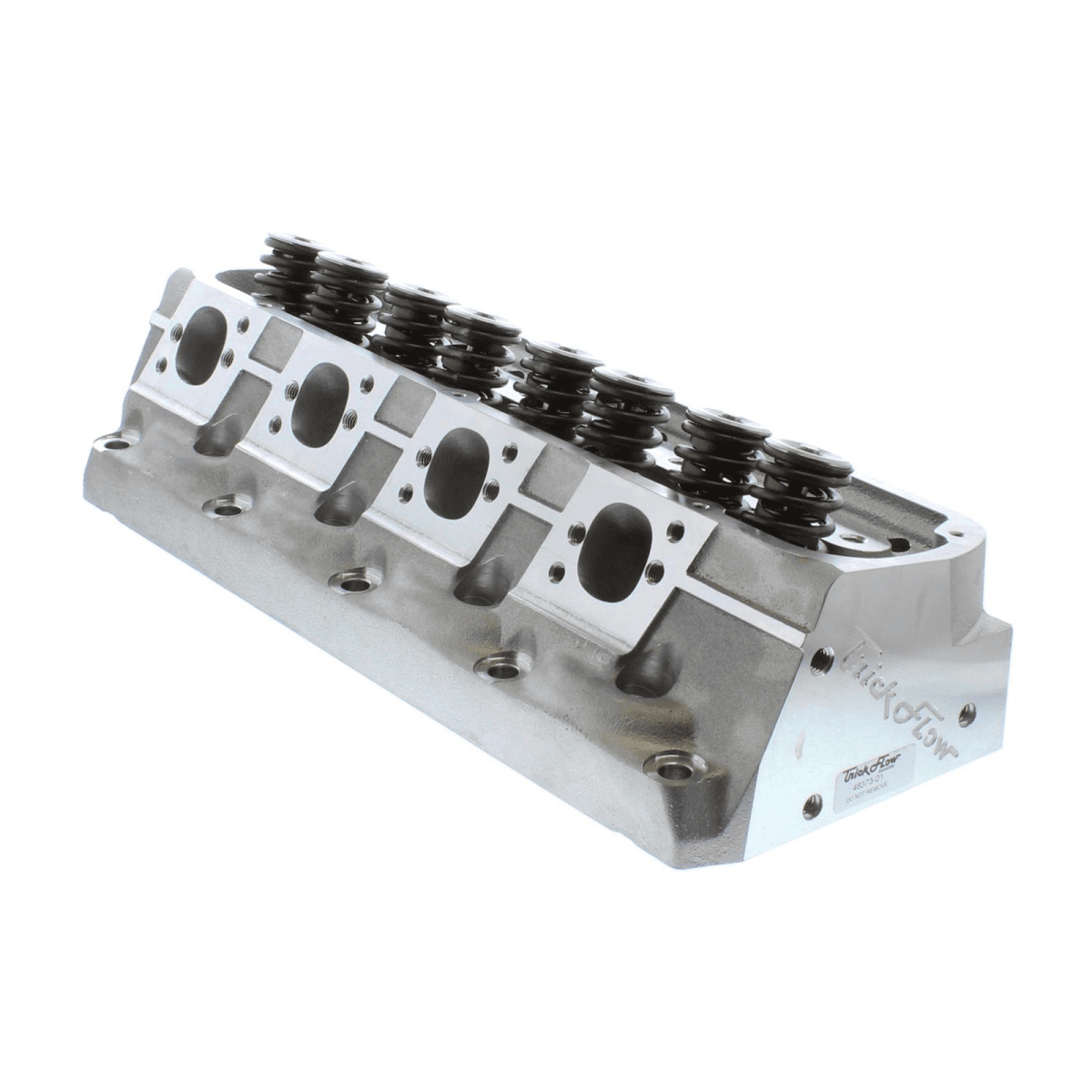

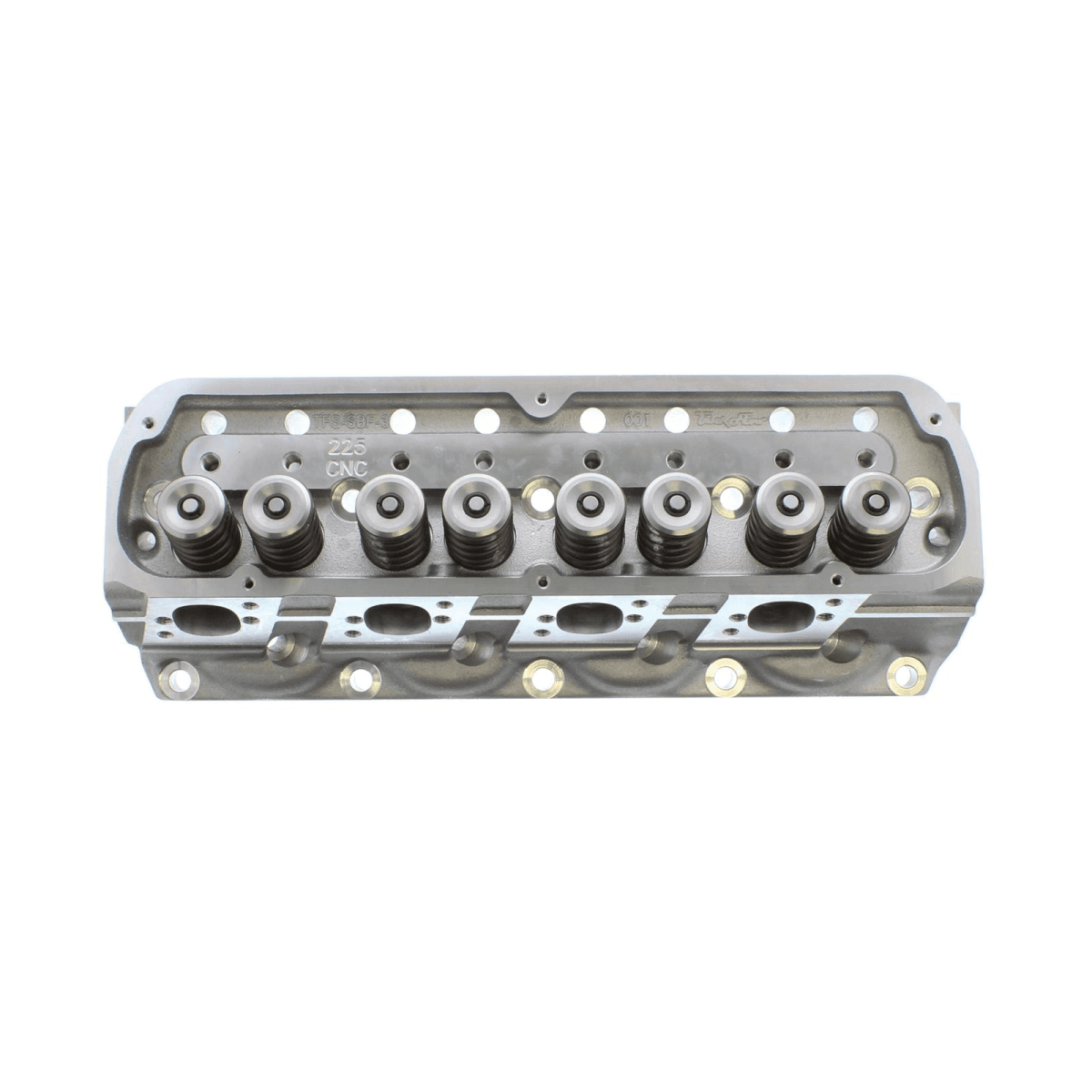

Trick Flow High Port SBF 225cc CNC Ported Cylinder Head 58cc, Assembled - .700 lift Solid Roller

Trick Flow High Port 225 cylinder head for small block Ford are specifically designed for large cubic inch, large power adder, big shot nitrous oxide, and other mega-power combinations. These heads share many of the same exclusive features of High Port 192 “Fast As Cast” heads—unique valve spacing, raised exhaust runners, extra strong castings, thick decks, superior cooling, reshaped intake runner entries, extra material for porting, raised valve cover rails, and excellent airflow—plus top-of-the-line CNC Competition Ported runners with a high resolution surface finish for maximum airflow and power over the entire rpm range.

Note: Sold individually add 2 to cart for a complete set.

Summit Racing Part Number: TFS-5171T010-C01
Combustion Chamber Volume (cc): 58
Intake Runner Volume (cc): 225cc
Exhaust Runner Volume (cc): 95cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Camshaft Style: Solid roller

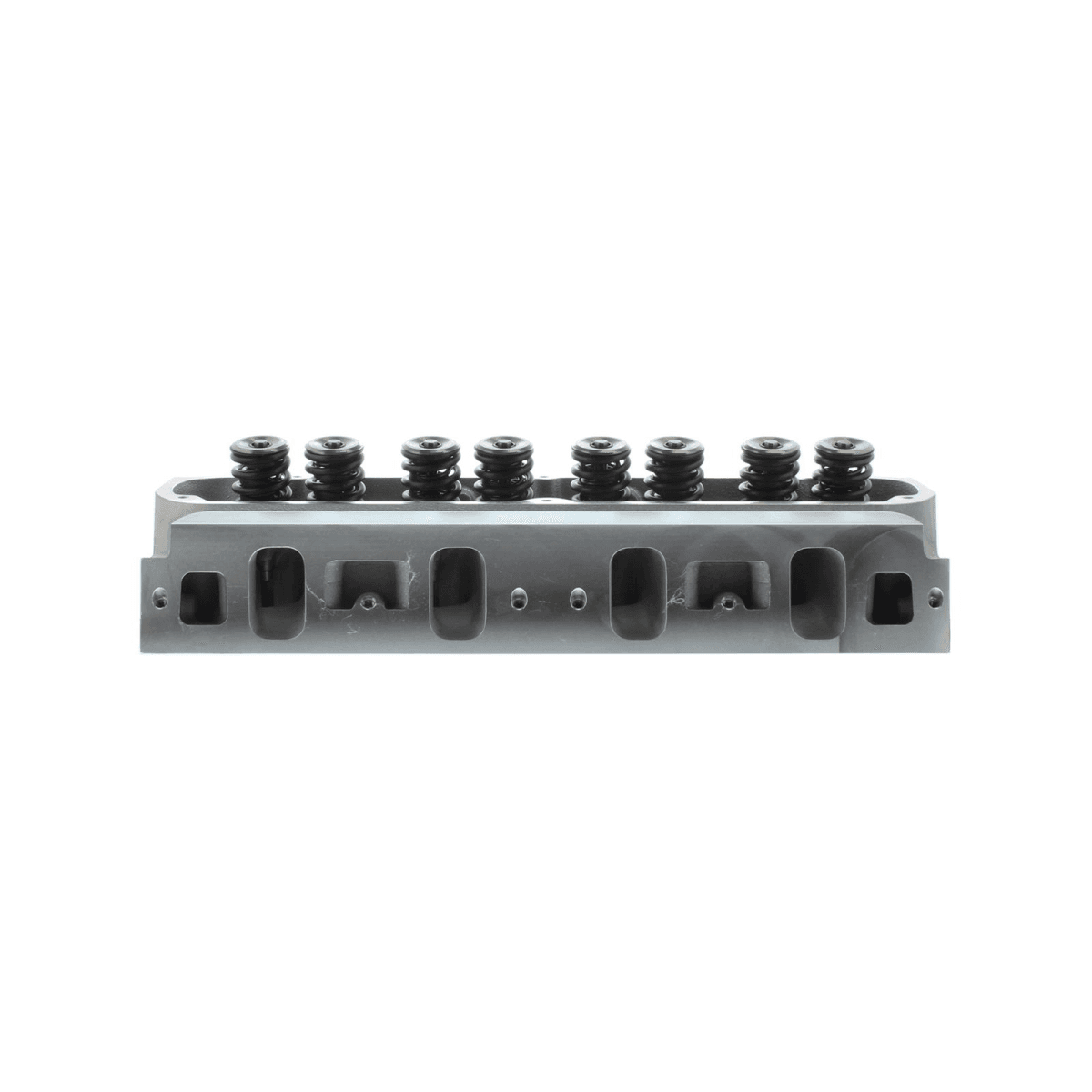

Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.080 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes

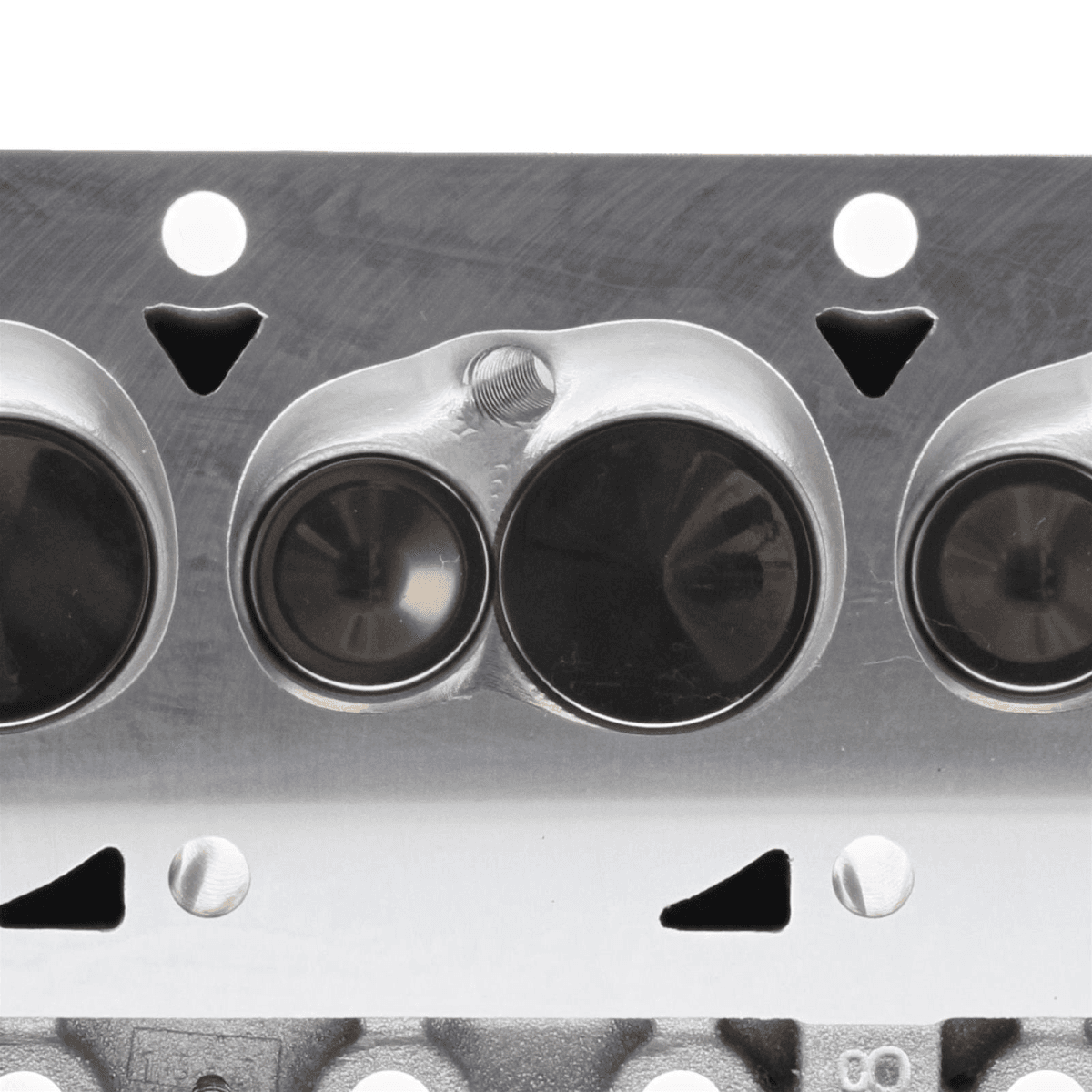

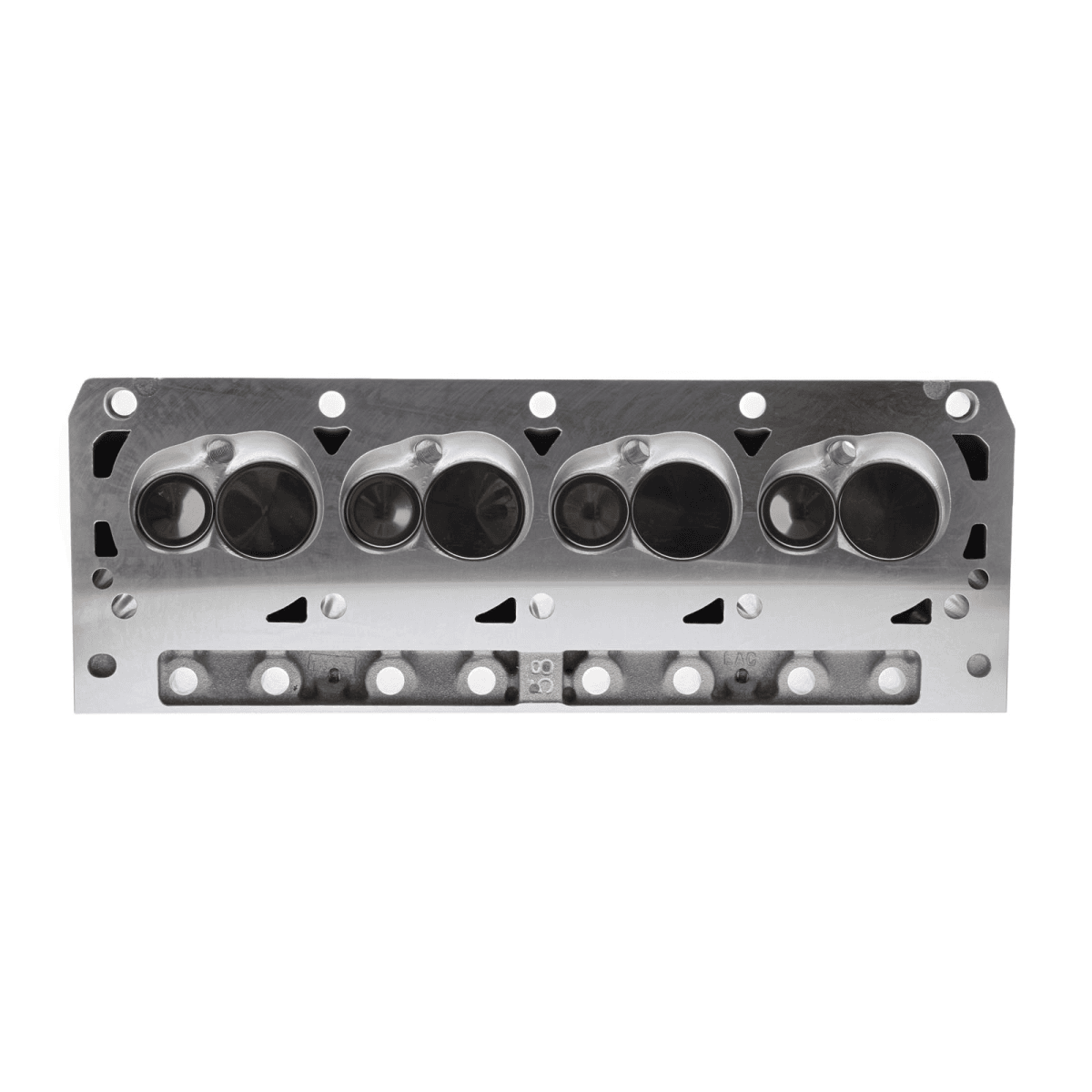

Combustion Chamber Style: Heart
Intake Port Location: Standard

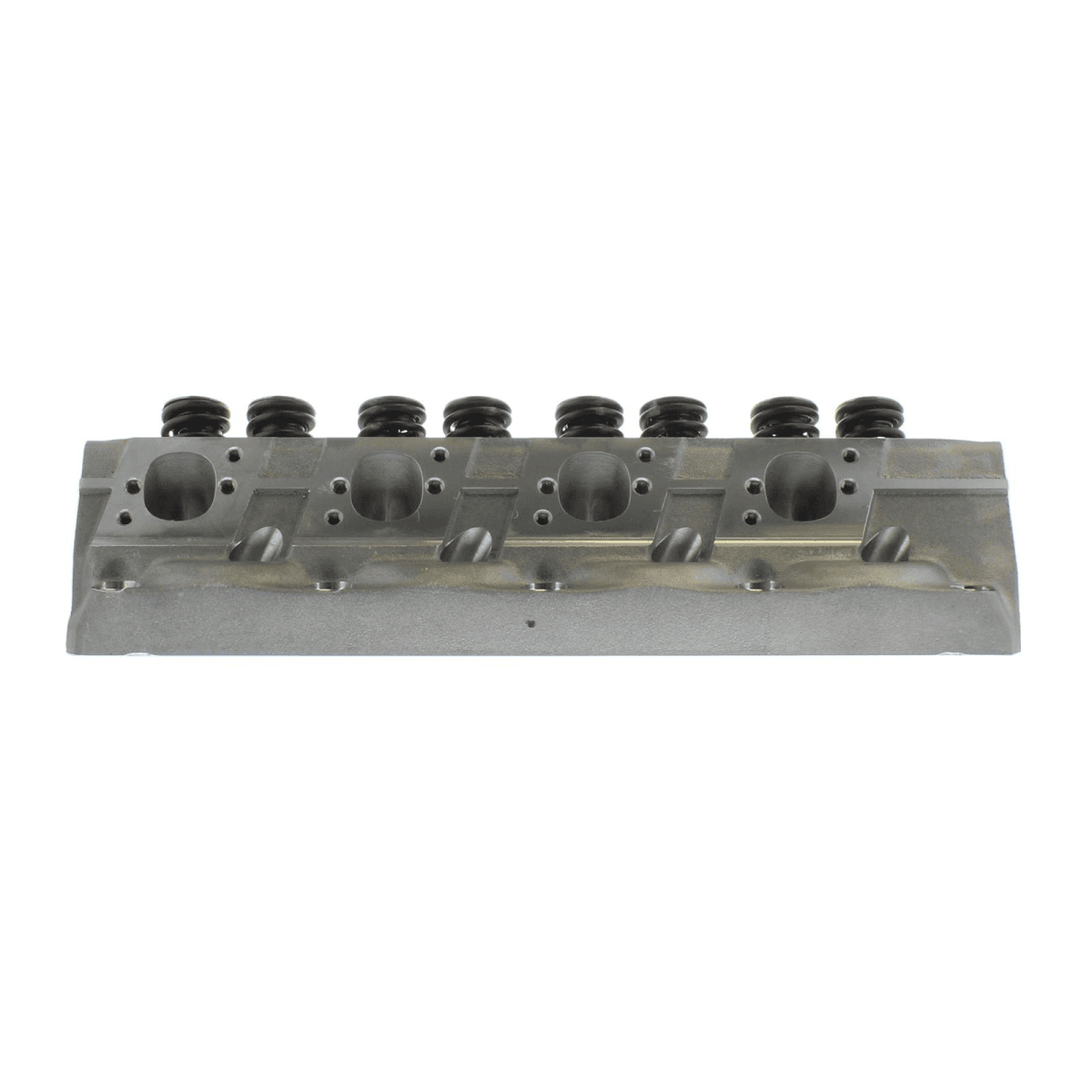

Exhaust Port Shape: Square
Exhaust Port Location: Raised
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.700 in.
Outside Diameter of Outer Spring (in.): 1.560 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Titanium
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16 in.-20
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 5/16 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 20
Exhaust Valve Angle: 20
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold individually.
Notes: Designed for solid roller cams. Exhaust port is raised 0.750 in. over stock location. Valve cover rail is raised .350 in. over stock. Must use inline valve style piston or High Port specific pistons.
