The heads that started it all.

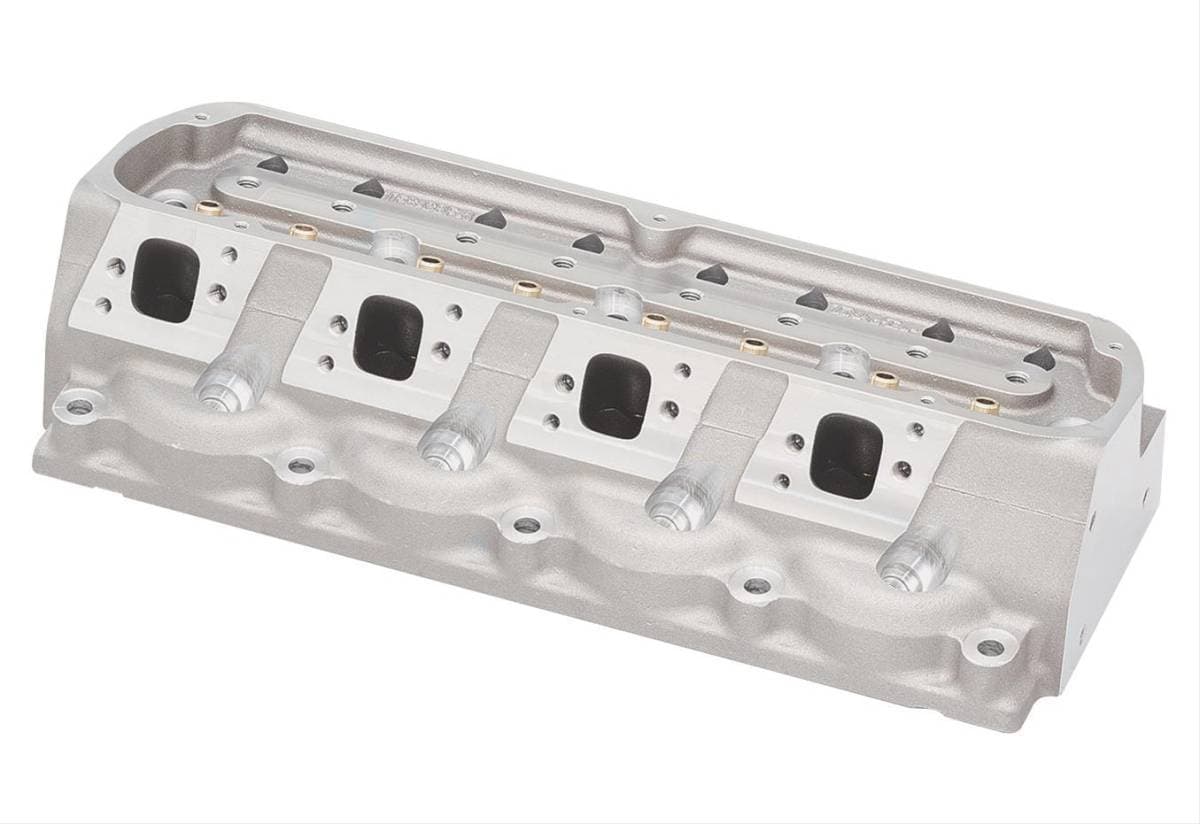

Trick Flow High Port® 192 cylinder heads are among the most dominant aftermarket small block Ford heads in racing. They feature unique valve spacing, .750" raised exhaust runners, extra strong castings and thick decks for additional rigidity and gasket integrity, superior cooling characteristics, and most importantly, excellent airflow. The large Fast As Cast® runners duplicate the profiles of CNC-ported heads to create ultra-high flowing heads without costly CNC-porting. The entry into the intake runner has been reshaped to help seal the area along the port roof and thicker port walls increase strength and provide more material for porting. Plus, interlocking ductile iron seats are used to handle the stresses of high heat, high horsepower applications. Other features include fully CNC-profiled combustion chambers with port-to-valve seat blending (bowl blending) and raised valve cover rails. Trick Flow High Port 192 cylinder heads are available fully assembled or as bare castings.
Cylinder Head Style: Bare
Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural
Combustion Chamber Volume (cc): 64
CNC-Machined Combustion Chamber: No
Intake Runner Volume (cc): 192cc
Exhaust Runner Volume (cc): 87cc
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Raised
Intake Valves Included: No
Intake Valve Diameter (in): 2.020 in.
Exhaust Valves Included: No
Exhaust Valve Diameter (in): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 20
Exhaust Valve Angle: 20
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: No
Valve Seat Machine Style: Un-machined seat
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold individually.
Notes: Exhaust port is raised 0.750 in. over stock location, must use headers designed for this cylinder head. Valve cover rail is raised 0.400 in. over stock.
