Trick Flow Header Builder Kit Stainless Steel Long Tube Headers 1 7/8" x 3 1/2" For Trickflow SBF High Port Heads

Trick Flow® header build kits contain high-quality 304 stainless steel components with a natural finish for long-lasting good looks and unbeatable performance. These kits are not prefabricated weld-up parts like many others on the market; they're for automotive enthusiasts who want to build their own stainless steel headers. Only the header flanges and collectors are prefab, leaving the creativity in the hands of the builder. Each kit includes laser-cut flanges, J-bends, collectors, and filler diamonds to connect the tubes together. The construction possibilities are endless with a Trick Flow® header build kit.

Note: Does not include hardware or gaskets, Click on the blue product options button to include Exhaust Gaskets, See Below For Vehicle Fitment

Product features on this system includes:
These products do NOT meet CARB compliance
Modification required for proper installation, 308L SS welding rod recommended.

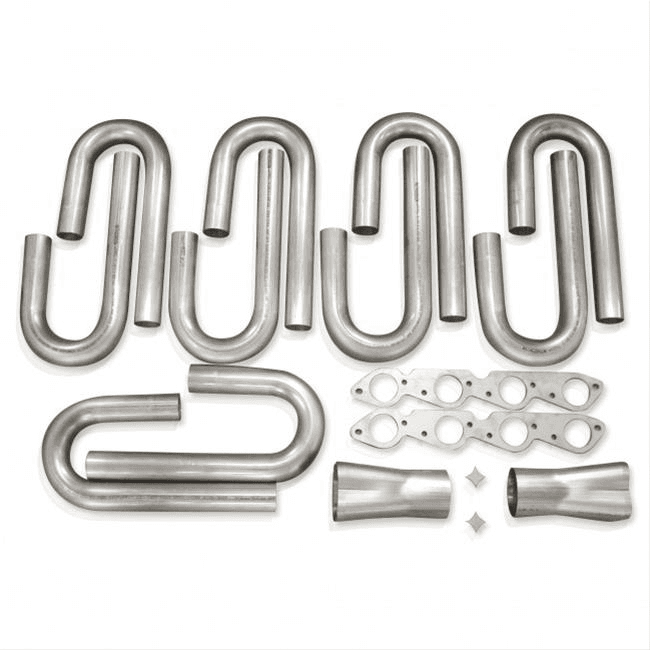

What Comes Inside The Box:
(2) 3/8 in. thick laser cut flanges for Trick Flow High Port cylinder heads with standard exhaust port design
(12) J-bends (one 6 in. long leg and one 12 in. long leg)
(2) 3.500 in, diameter outlet formed collectors
(2) filler diamonds to connect the tubes together.

Specs:
Header Material: 304 stainless steel
Primary Tube Outside Diameter (in.): 1 7/8 in.
Header Color: Natural
Flange Style: Standard
Weld-Up: Yes
Collector Attachment: Weld-on
Collector Diameter (in.): 3 1/2 in.
Collector Reducers Included: No
Tuned: No
Flange Thickness (in.): 0.38 in.
Bolts/Studs Included: No
Gaskets Included: No
Crossover Pipe Included: No
Catalytic Converter(s) Included: No
Motor Mounts Included: No
Transmission Mount Included: No
Quantity: Sold as a kit.
