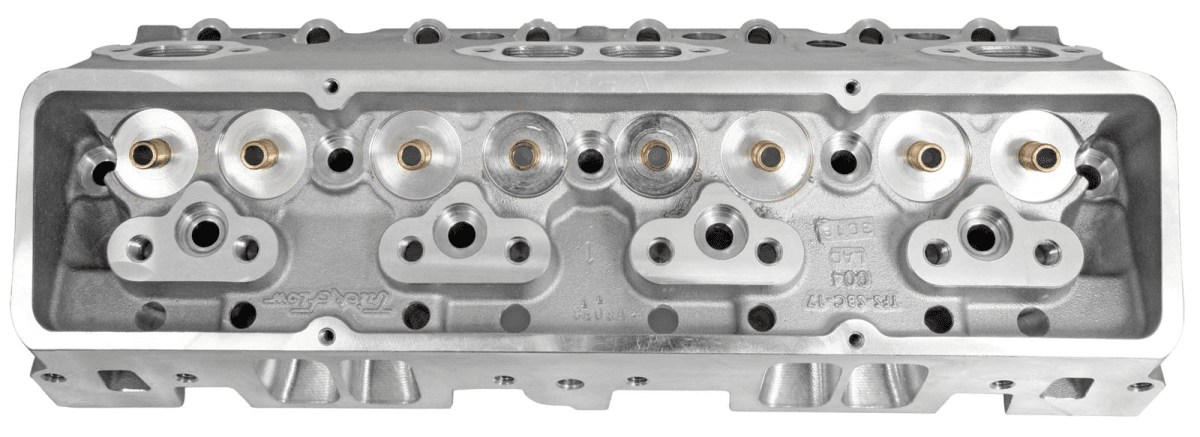

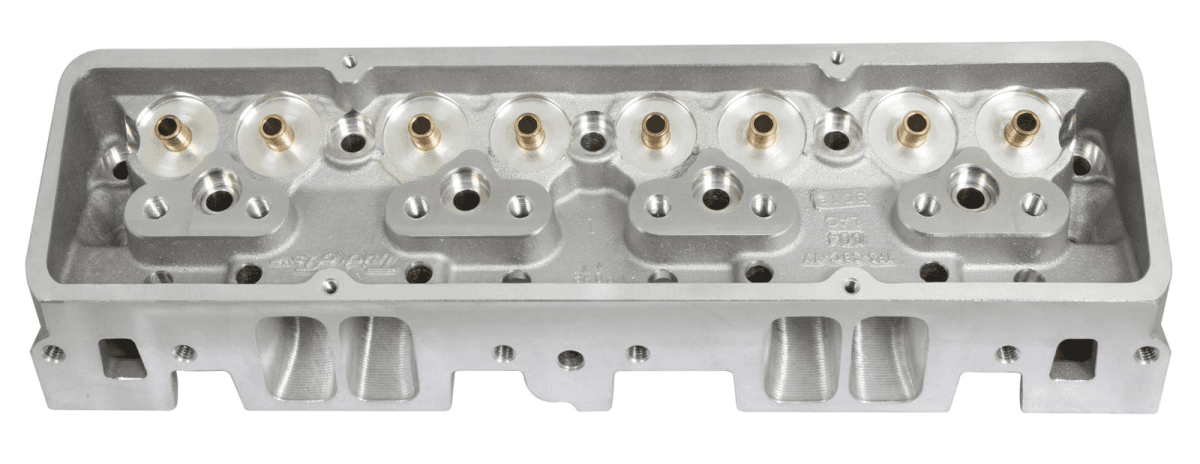

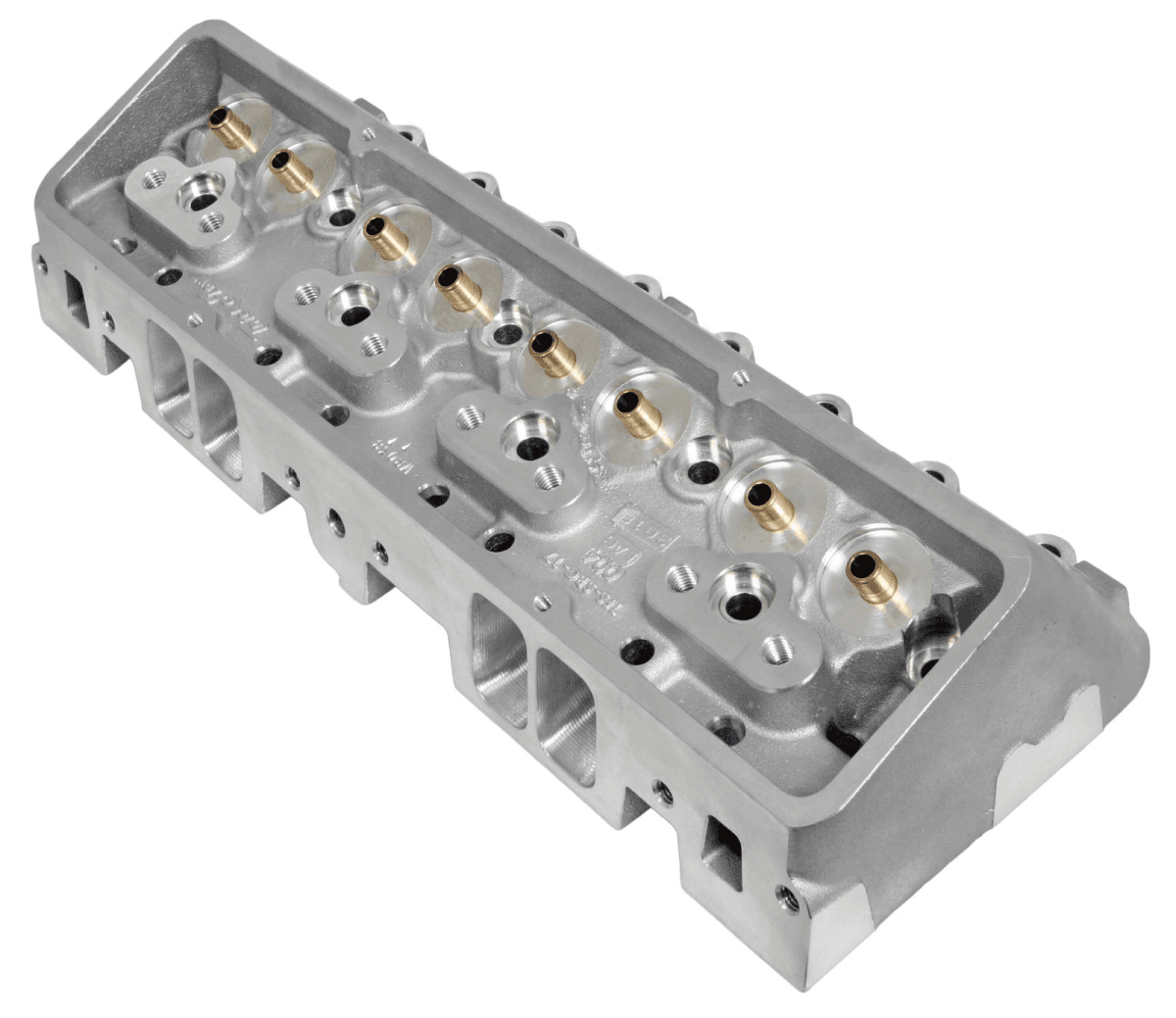

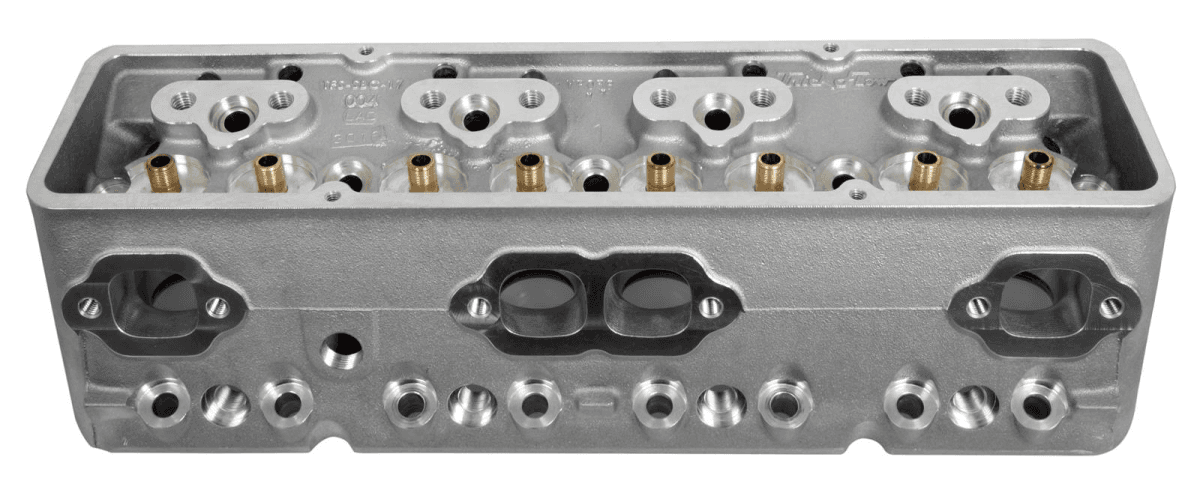

Bare Cylinder Head, DHC 200, Fast As Cast, Assembled, 1.460 in. Springs, Without Accessory Bolt Holes, Small Chevy, Each
Specs:

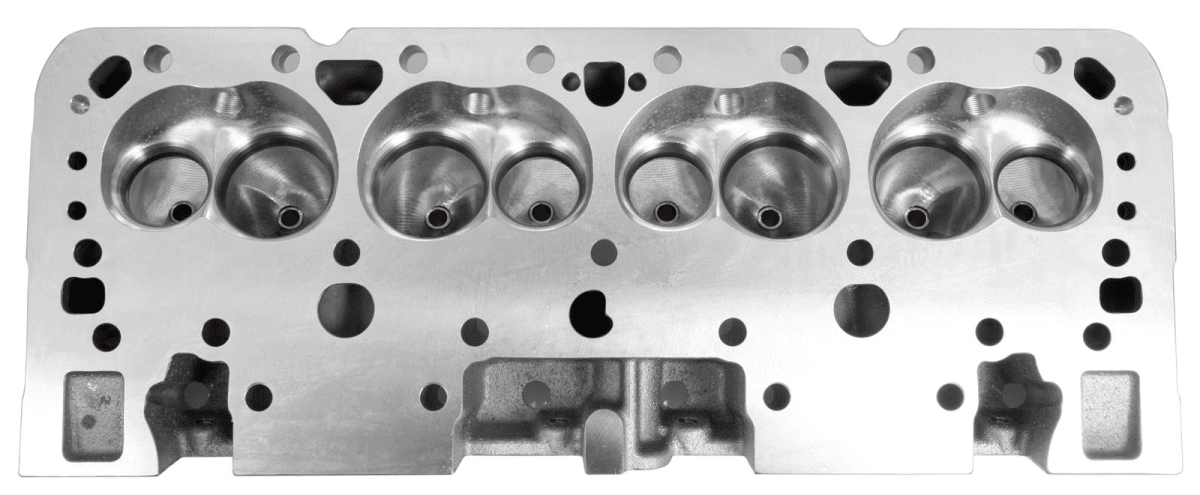

Combustion Chamber Volume (cc): 64
Intake Runner Volume (cc): 200cc
Exhaust Runner Volume (cc): 74cc
Cylinder Head Style: Bare
Cylinder Head Material: Aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.055 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: D-port
Exhaust Port Location: Standard
Spark Plug Style: Straight
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: No
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: For use with a minimum bore diameter of 4.000 in.
