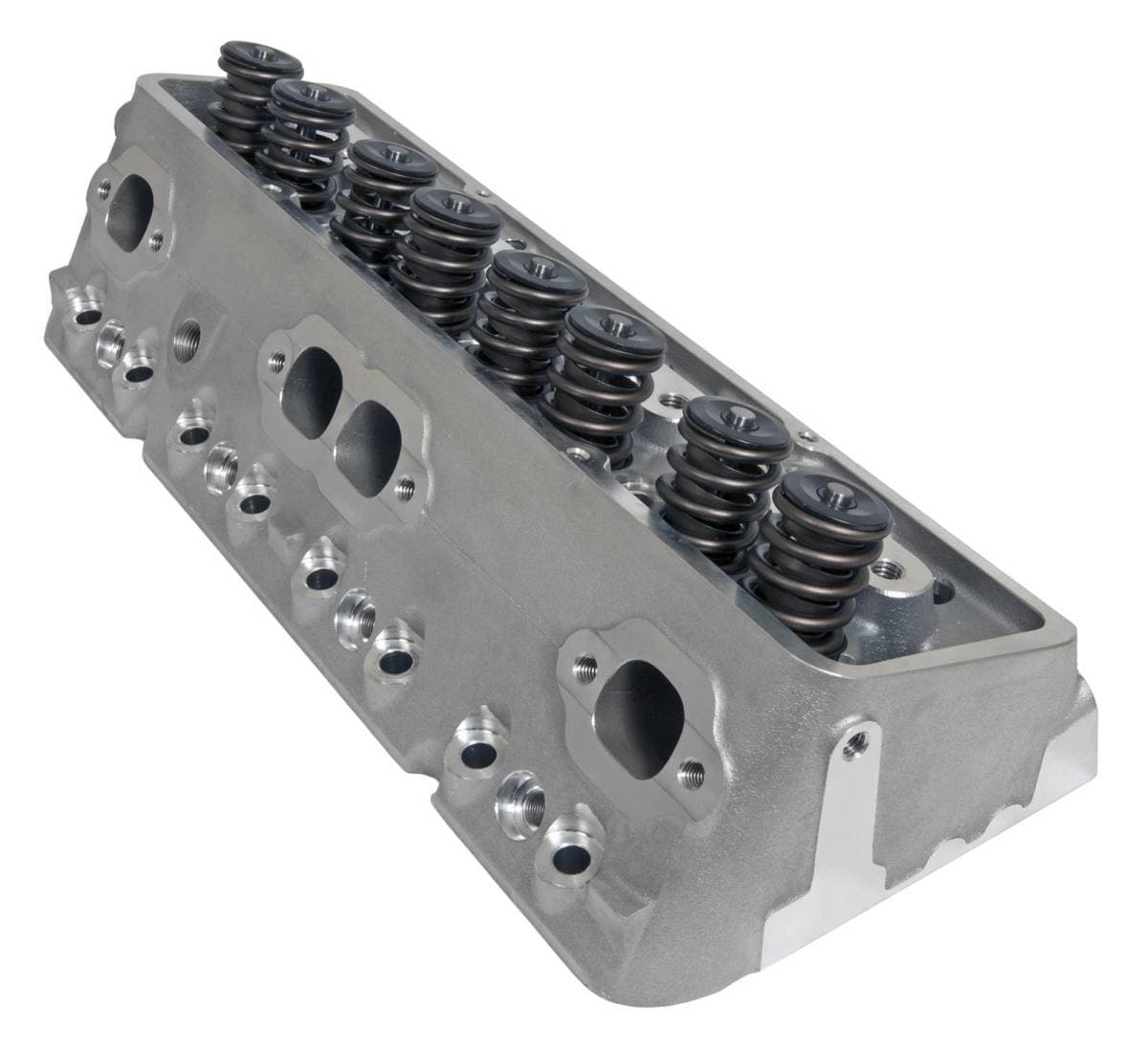

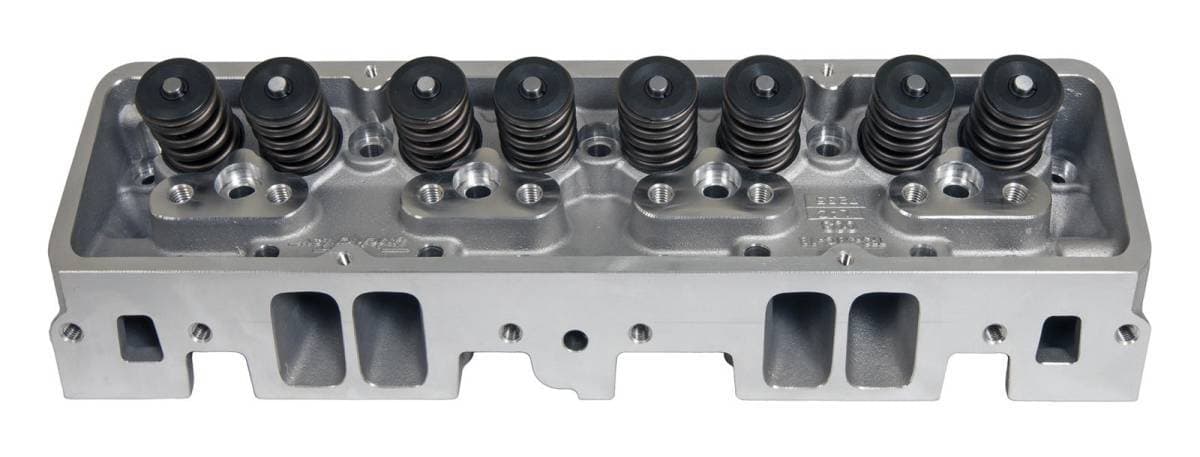

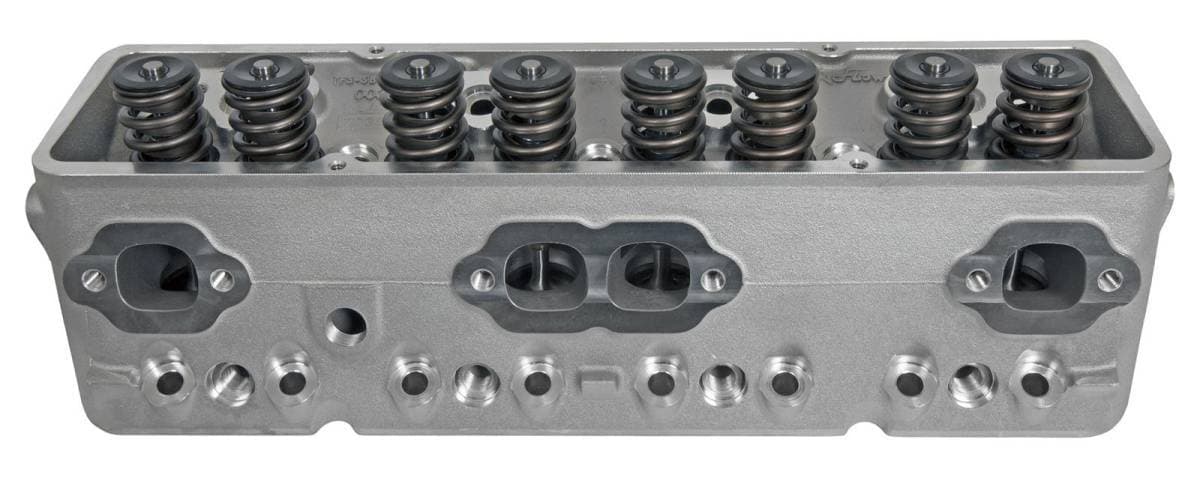

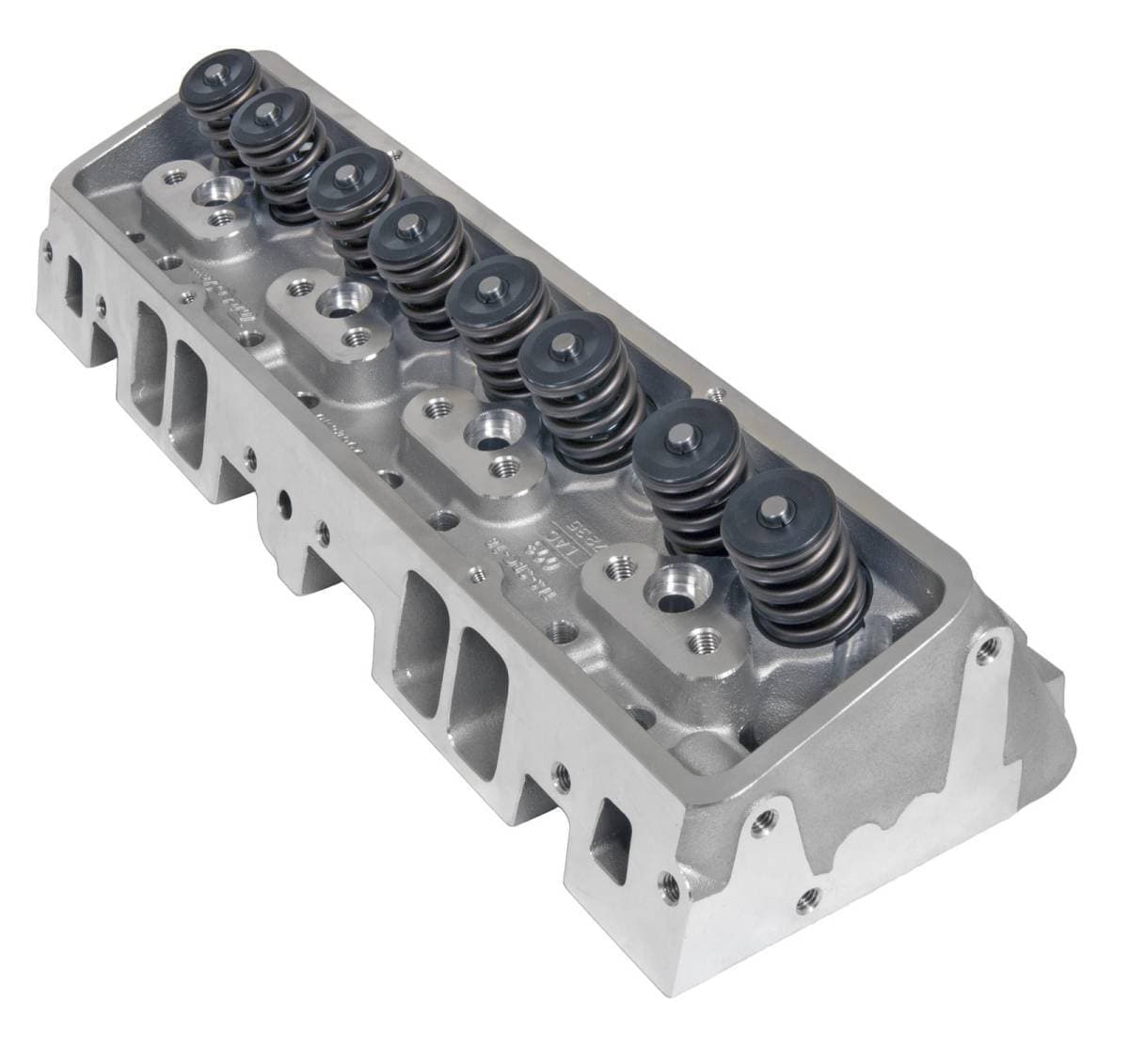

Cylinder Head, DHC 175, Fast As Cast, Assembled, 1.470 in. Springs, Accessory Bolt Holes, Small Chevy, Each
Brand: TFS - Trick Flow Specialties
Manufacturer's Part Number: TFS-30210006
Combustion Chamber Volume (cc): 60
Intake Runner Volume (cc): 175cc
Exhaust Runner Volume (cc): 74cc
Cylinder Head Style: Assembled
Cylinder Head Material: Aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in): 2.020 in.
Cylinder Head Finish: Natural
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: D-port
Exhaust Port Location: Standard
Spark Plug Style: Straight
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in): 1.600 in.
Valve Springs Included: Yes
Maximum Valve Lift (in): 0.540 in. hydraulic flat tappet
Outside Diameter of Outer Spring (in): 1.470 in.
Damper Spring Included: No
Number of Springs Per Valve: Single
Retainers Included: Yes
Retainer Material: Chromoly steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16-20 in.
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 5/16 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: Yes
Quantity: Sold individually.
Notes: For use with a minimum bore diameter of 4.000 in.
