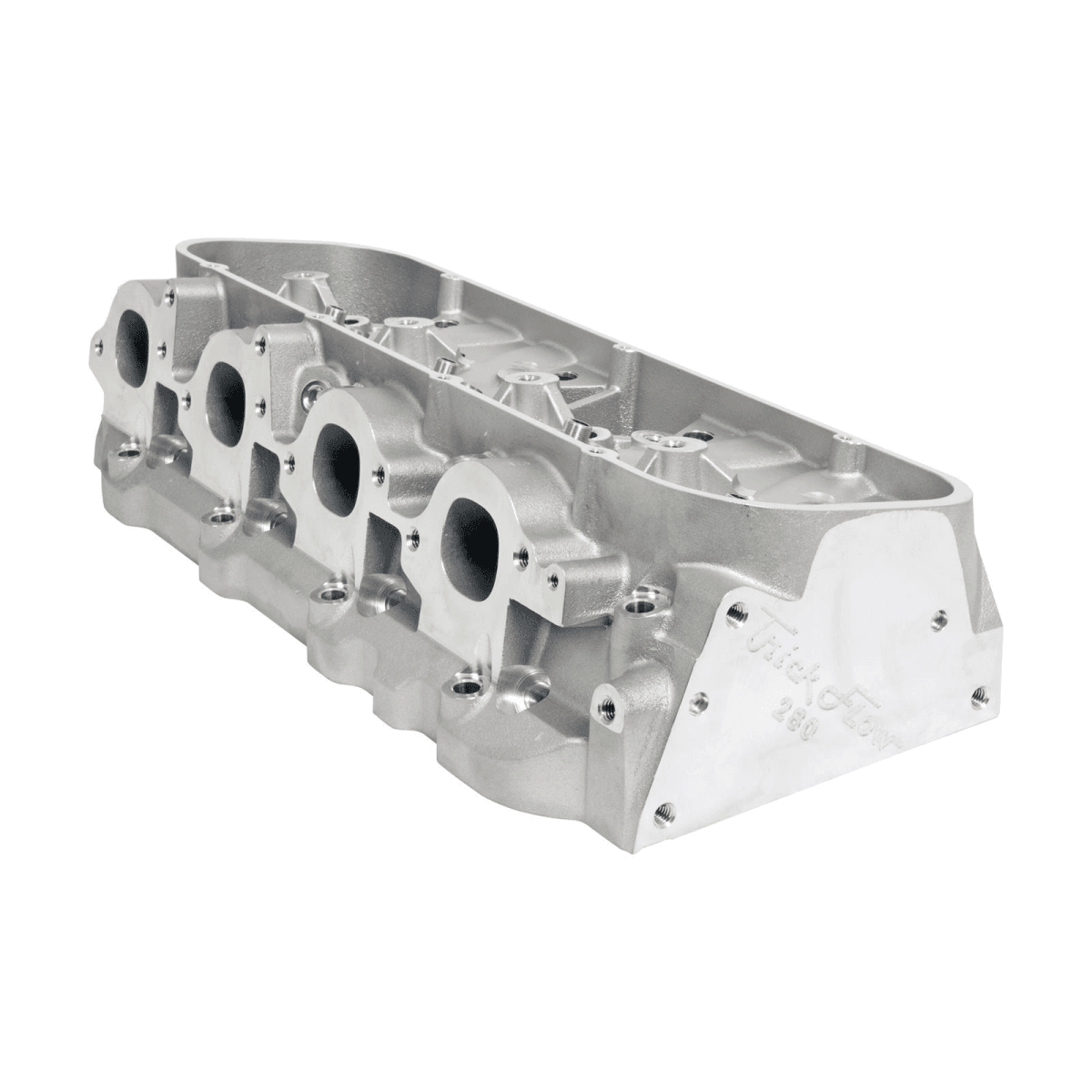

Trick Flow BBC 280cc PowerOval Bare Cylinder Head Casting, Big Block Chevy, Hydraulic Roller, 113cc Chamber

Trick Flow PowerOval® 280 cylinder heads for big block Chevy are an ideal upgrade from factory cast iron heads for street/strip and marine applications. They feature an oval intake port design that produces excellent low and midrange torque and horsepower, plus more efficient heart-shaped, CNC-profiled combustion chambers, .300" raised exhaust ports, extra-thick decks and walls for porting, and Fast As Cast® runners for near- CNC-ported performance at standard cast head prices. CNC bowl blended valve seat transitions promote high velocity and huge airflow volume and 24 degree valve angles with 4 degree side cants further increase airflow.

Cylinder heads are available fully assembled or as bare castings. Sold individually.

Combustion Chamber Volume (cc): 113
Intake Runner Volume (cc): 280cc
Exhaust Runner Volume (cc): 129cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Oval
Intake Valve Diameter (in.): 2.190 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: D-port
Exhaust Port Location: Raised
Spark Plug Style: Angle
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.880 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 24/4
Exhaust Valve Angle: 15/4
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: Exhaust port is raised 0.300 in. over stock.
