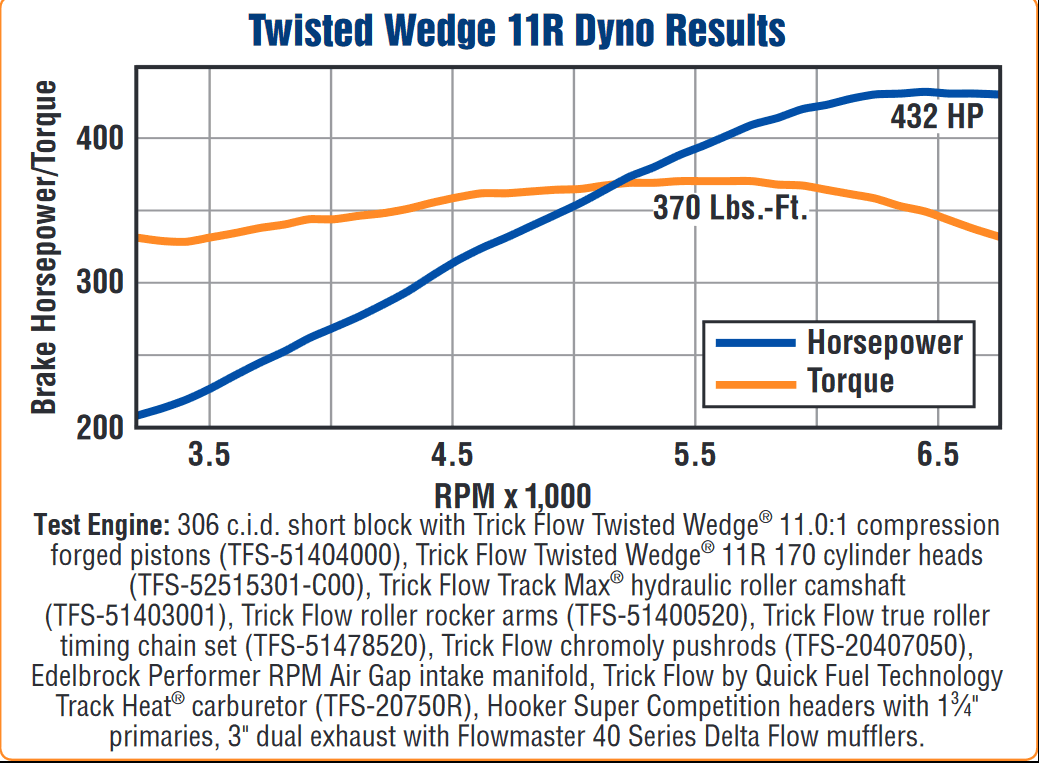

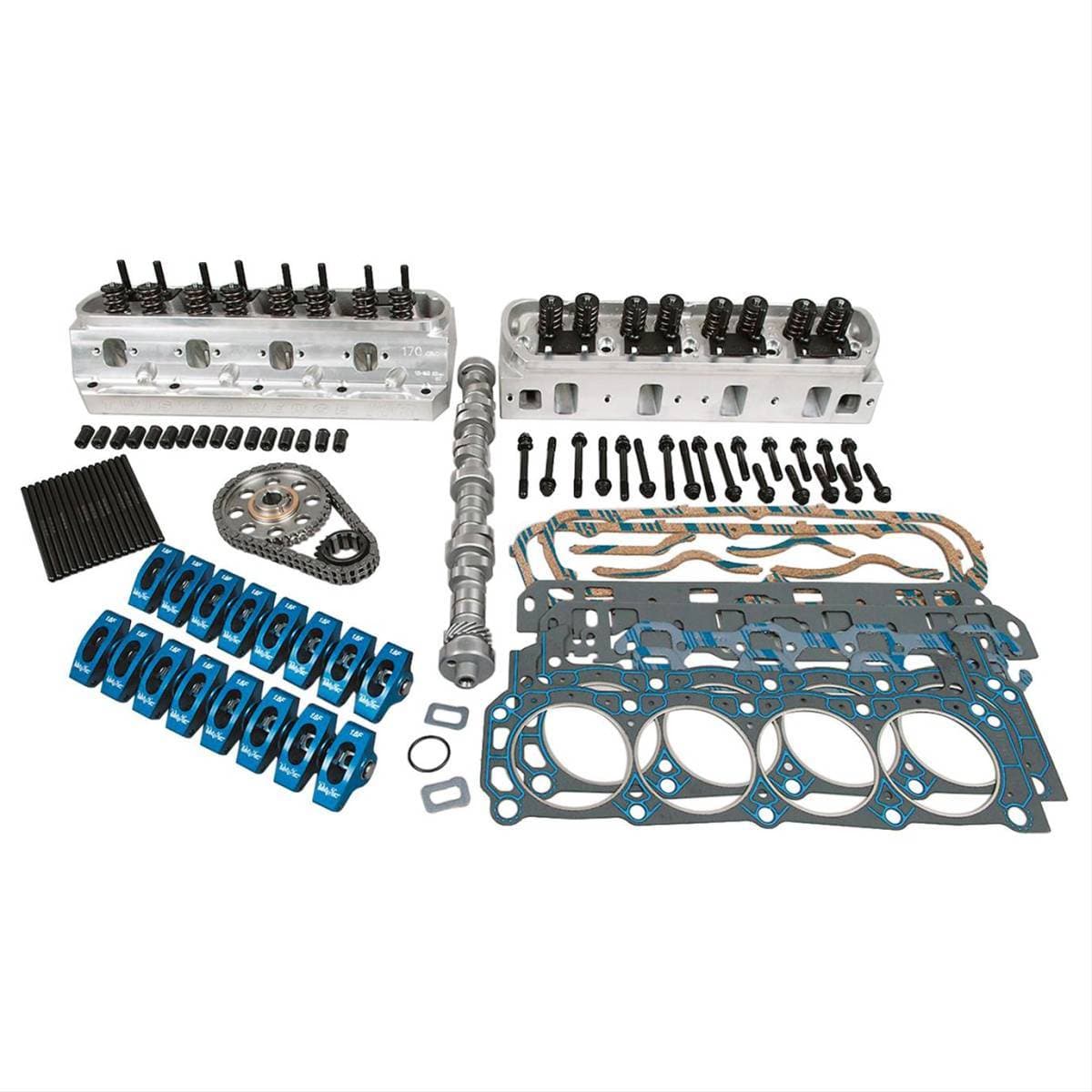

Tuned by Trick Flow® engineers to deliver optimum horsepower and torque on a small block Ford, these kits will save you cash and take the guesswork out of building a winning engine combination. The Trick Flow Twisted Wedge 11R top-end engine kits are built around a set of dyno-proven Twisted Wedge 11R 170 cylinder heads (TFS-52515301-C00). Also included is a Track Max® hydraulic roller camshaft (TFS-51403001), 1.6 ratio roller rocker arms (TFS-51400520), true roller timing chain set (TFS-51478520), chromoly pushrod set (TFS-21407050), cylinder head bolt kit (ARP 154-3601), and a complete engine gasket set (TFS-51400904). The test engine with these parts installed made 432 horsepower and 370 lbs.-ft. of torque on Trick Flow's engine dyno! Fits 289/302 blocks only, pushrods and head bolts are different for 351w.
All factory 289/302 blocks require head bolt reducer bushings which TFS does not include in this kit, add TFS-51400419 to your cart if needed.
KIT/COMBO CONTENTS:

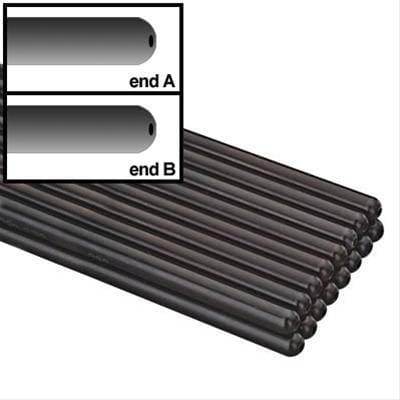

TFS-21407050 - Trick Flow Pushrods, 5/16 in. Diameter, 7.050 in. Long, 4130 Chromoly, 0.080 in. Wall, For Guideplates, Set of 16

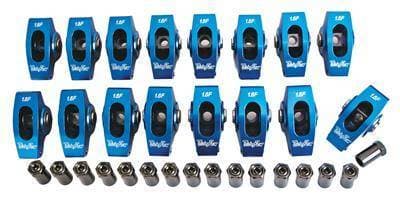

TFS-51400520 - Trick Flow Rocker Arms, 1.6 Ratio, 7/16 in. Stud, Full Roller Design, Aluminum, Small Ford and 351W, Set of 16

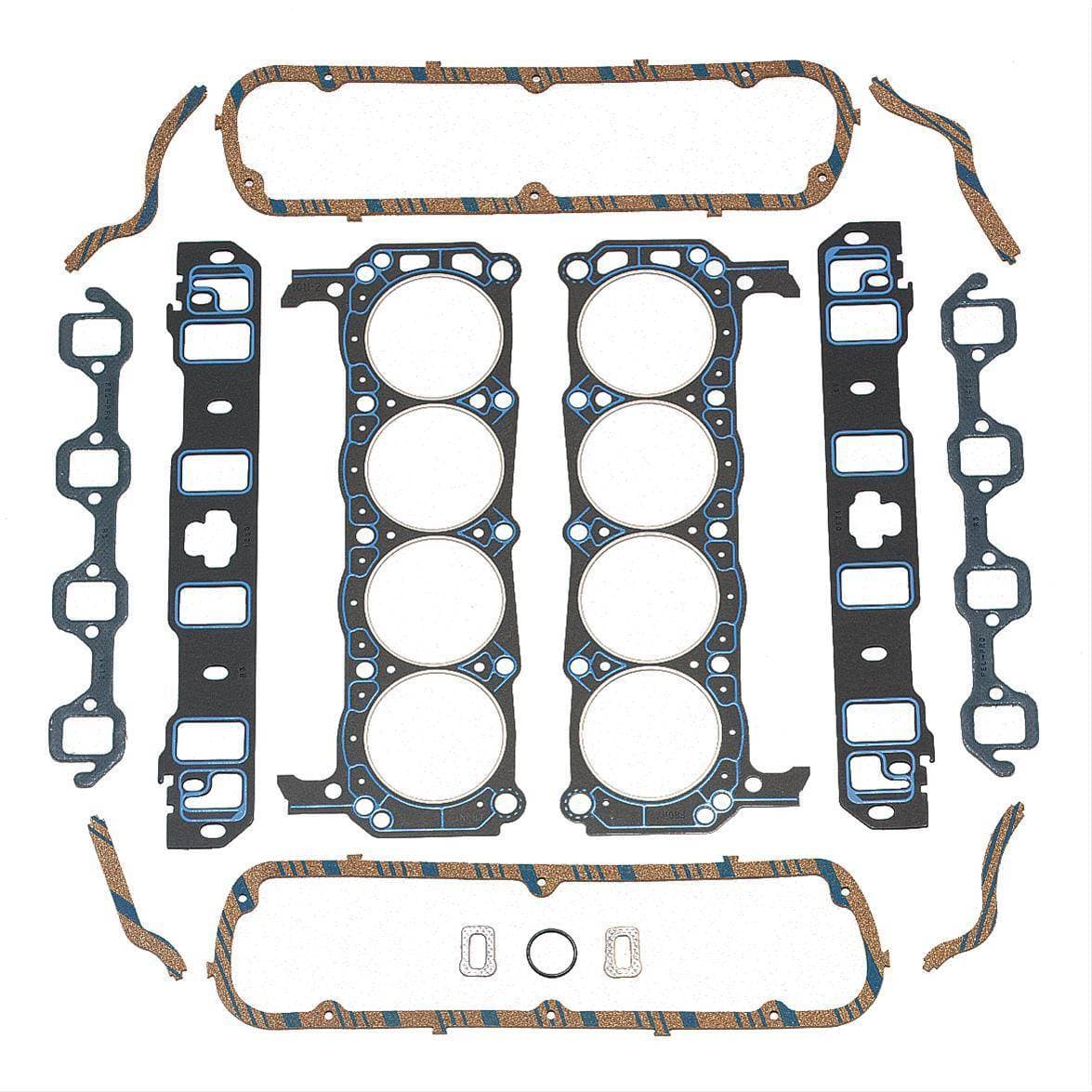

TFS-51400904 - Trick Flow Gaskets, Complete Head Gasket Set, Premium, For Use with Twisted Wedge® Heads, Small Ford, Set
TFS-52578520 - Trick Flow Timing Chain and Gear Set, True Roller, Double Roller, Billet Steel Sprockets, Ford, Small Block, Set

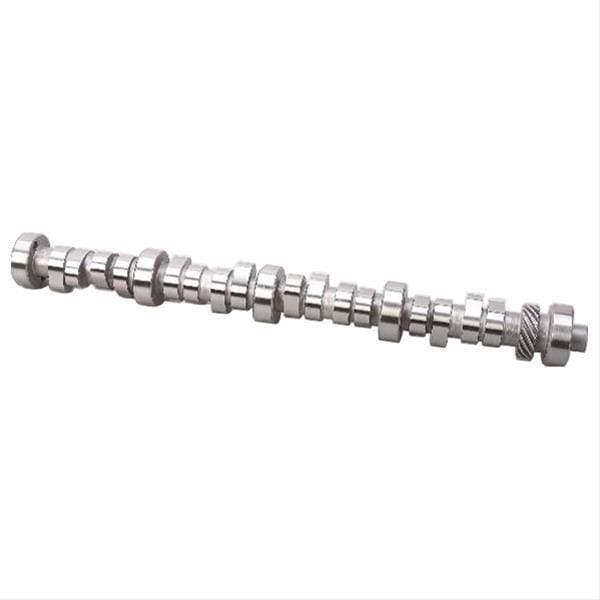

TFS-51403001 - Trick Flow Camshaft, Hydraulic Roller, Advertised Duration 275/279, Lift .499/.510, Lobe Sep. 112, Small Ford, 5.0L, Each

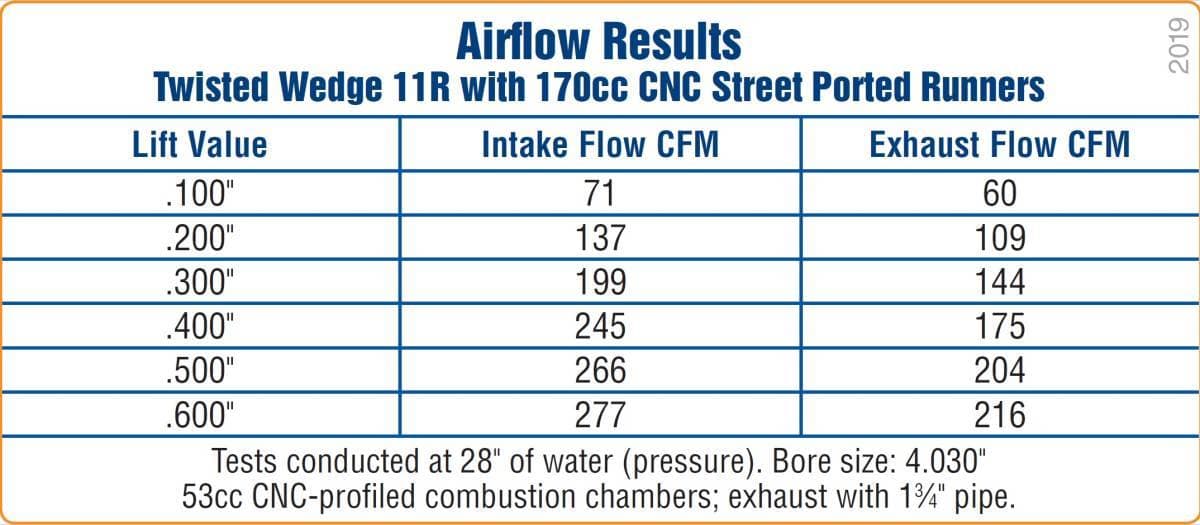

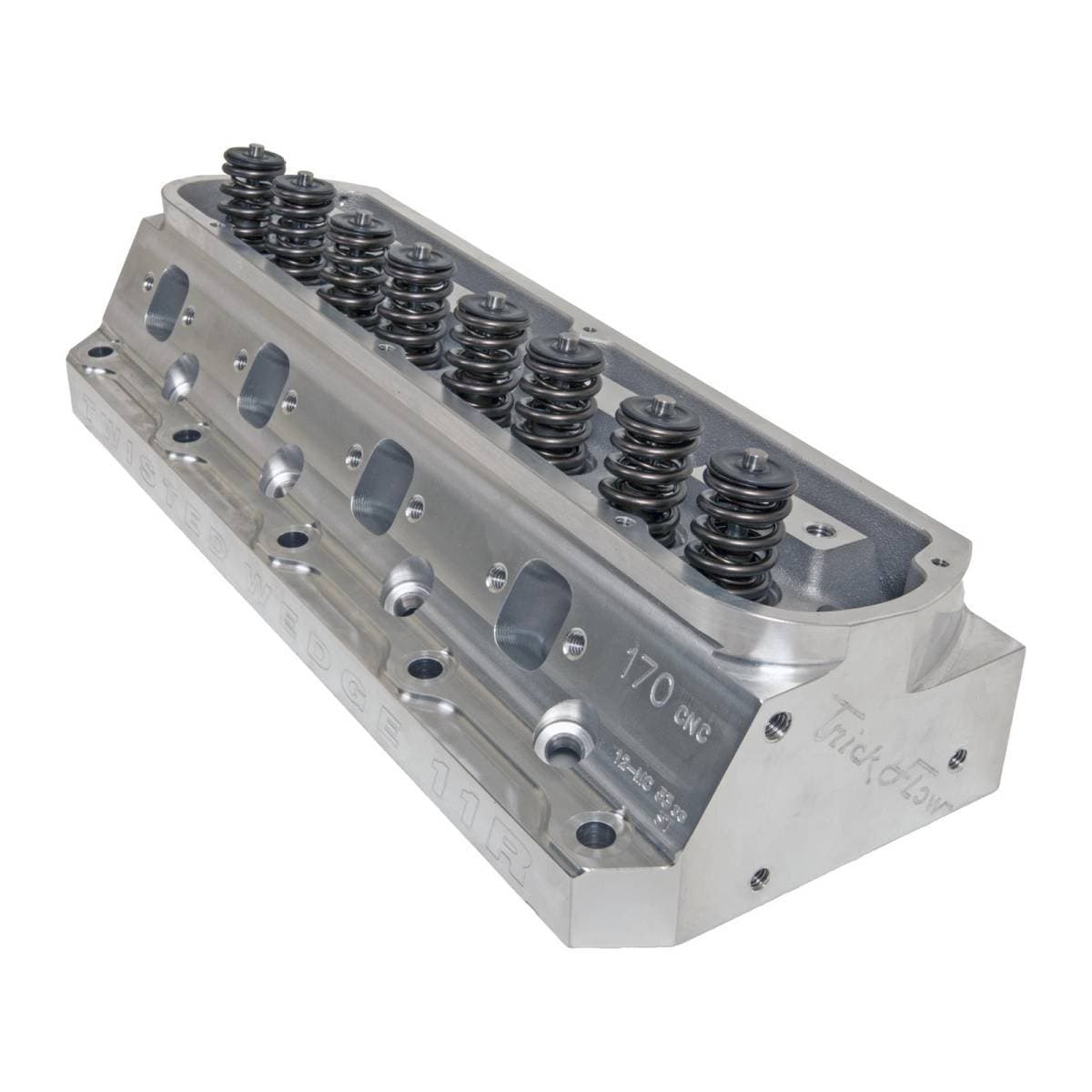

TFS-52515301-C00 x2 - Trick Flow Cylinder Head, Twisted Wedge® 11R 170, CNC Street Ported, Assembled, 53cc CNC Chambers, Small Ford, Each
ARP 154-3601 - ARP Head Bolt Kit, Hex Head, Chromoly Steel, Black Oxide Finish, Ford 289/302, Each
