This is a set of 6 TREperformance Side Feed 550 cc/min Nissan / Infiniti style High Resistance, saturated fuel injectors. These have EV1 electrical connections and an upgraded single fuel delivery nozzle for superior fuel atomization. All TREperformance injectors are tested at our Southern California warehouse on a brand new ASNU flow bench to confirm the flow rates, and typically the system balance is between 1.0% - 2.0%. These injectors are made by TREperformance and come with a 1 year warranty, and are compatible with E85, Ethanol, Methanol and Alcohol based fuels.
Typical Flow Rate in CC per minute: 550 CC/min @ 43.5 PSI
Typical Flow Rate in LB per hour: 52 LBS/HR @ 43.5 PSI
Actual flow rate of your injectors may vary, but will be matched together

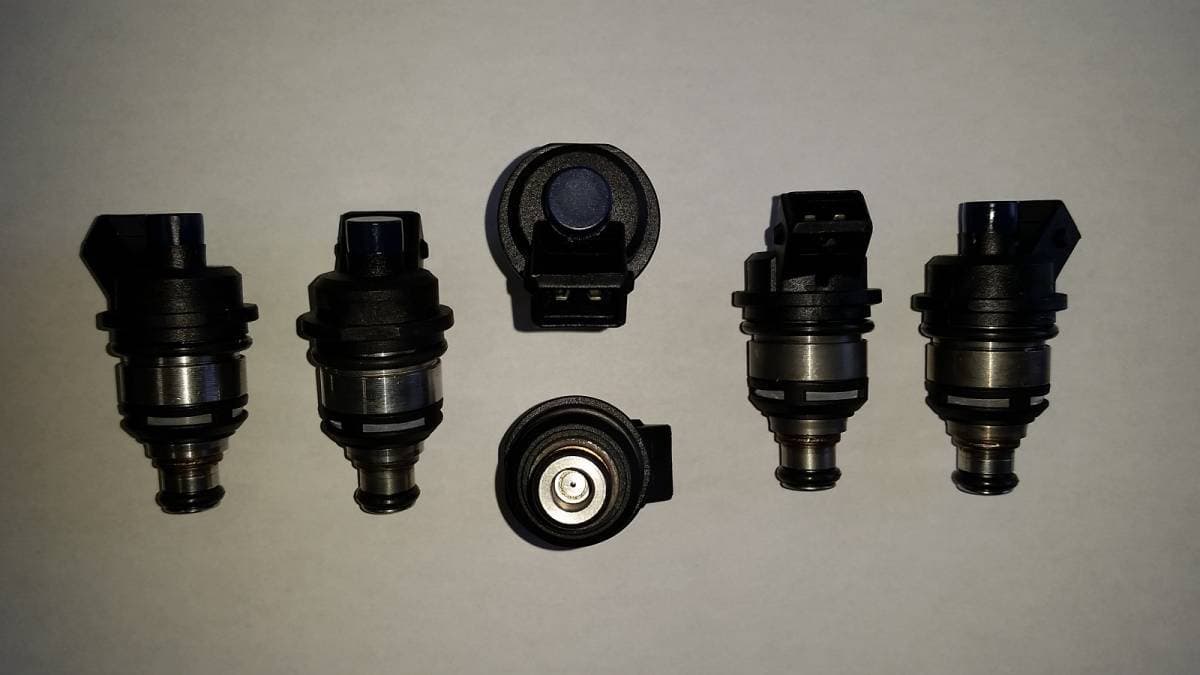

Included: 6 Side Feed style injectors. The photo is an example of a similar set.
See this video of us testing some TRE injectors on our ASNU flow bench:
TRE Fuel Injector ASNU Flow Testing
These High Resistance(Approx. 11.5 OHMS) Saturated fuel injectors will fit many applications, including, but not limited to:
Nissan 300zx with VG30 Engines
Nissan Maxima / Infiniti I30 with VQ30 Engines
Nissan Skyline with RB Engines
These are Side Feed style injectors which work on most side feed Nissan or Infiniti fuel injected vehicles.
Email us if you have questions regarding fitment.
Note:
Injector clips REQUIRED on most models, research your install as these take OBD1 Bosch EV1 center notch style injector clips. If your vehicle needs to convert to OBD1 style injector clips/plugs, please select them from the drop down menu above - additional $29.95.
Specifications
Condition: 100% BRAND NEW
Typical Flow Rate in CC per minute: 550 CC/min @ 43.5 PSI
Typical Flow Rate in LB per hour: 52 LBS/HR @ 43.5 PSI
Actual flow rate of your injectors may vary, but will be matched together
Resistance: 11.5 ohms (High Impedance, High Resistance)
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min 30 PSIG / Max 100 PSIG
Spacers/O-rings Included: YES, on the injectors
Fuel Delivery: Upgraded single fuel delivery nozzle for superior fuel atomization
Electrical connector type: EV1 (Minitimer, Jetronic)
Overall Length: 2 3/8 inches, 60 mm
O-ring to O-ring Length: 1 1/4 inches, 32 mm
Top Lip Diameter: 28 mm
Inner Body Diameter: 22 mm
Top Oring: 25 mm
Bottom Oring: 12 mm
Warranty: 1 Year Warranty!
TREperformance Fuel Injector Guarantee:
TREperformance warranties all of our fuel injectors for 1 year from the purchase date. If you have any problems with your injectors we will test them and replace any defective injectors free of charge. Buy with confidence though, in years of selling these injectors we have seen virtually no injectors fail! If you feel any of your injectors may be defective just contact us via email to receive an RMA number and we will reply back with all the return instructions. No returns are accepted without an RMA number. All of our TRE Fuel Injectors are manufactured according to strict guidelines in order to maintain ISO 9002 and ISO/TS 16949 quality system certifications.
TREperformance manufactures these fuel injectors and has each injector tested before shipment. These brand new, recently developed fuel injectors are always in stock and will often ship the day of payment. Save some money and try our TRE Fuel Injectors. We back them with a 1 year warranty! Thank you for considering TREperformance Fuel Injectors!
