This is a set of 10 TREperformance Tall Thin Body EV6 Bosch Style 60 lb/hr High Resistance, saturated fuel injectors. These are the newer style skinny injectors, with EV6 electrical connections and an upgraded single fuel delivery nozzle for superior fuel atomization. All TREperformance injectors are tested and flow matched at our Southern California warehouse on a brand new ASNU flow bench to confirm the flow rates, and typically the system balance is between 1.0% - 3.0% which means you know that you are getting accurate injectors.
Typical Flow Rate in CC per minute: 630 CC/min @ 43.5 PSI
Typical Flow Rate in LB per hour: 60 LBS/HR @ 43.5 PSI
Actual flow rate of your injectors may vary, but will be matched together

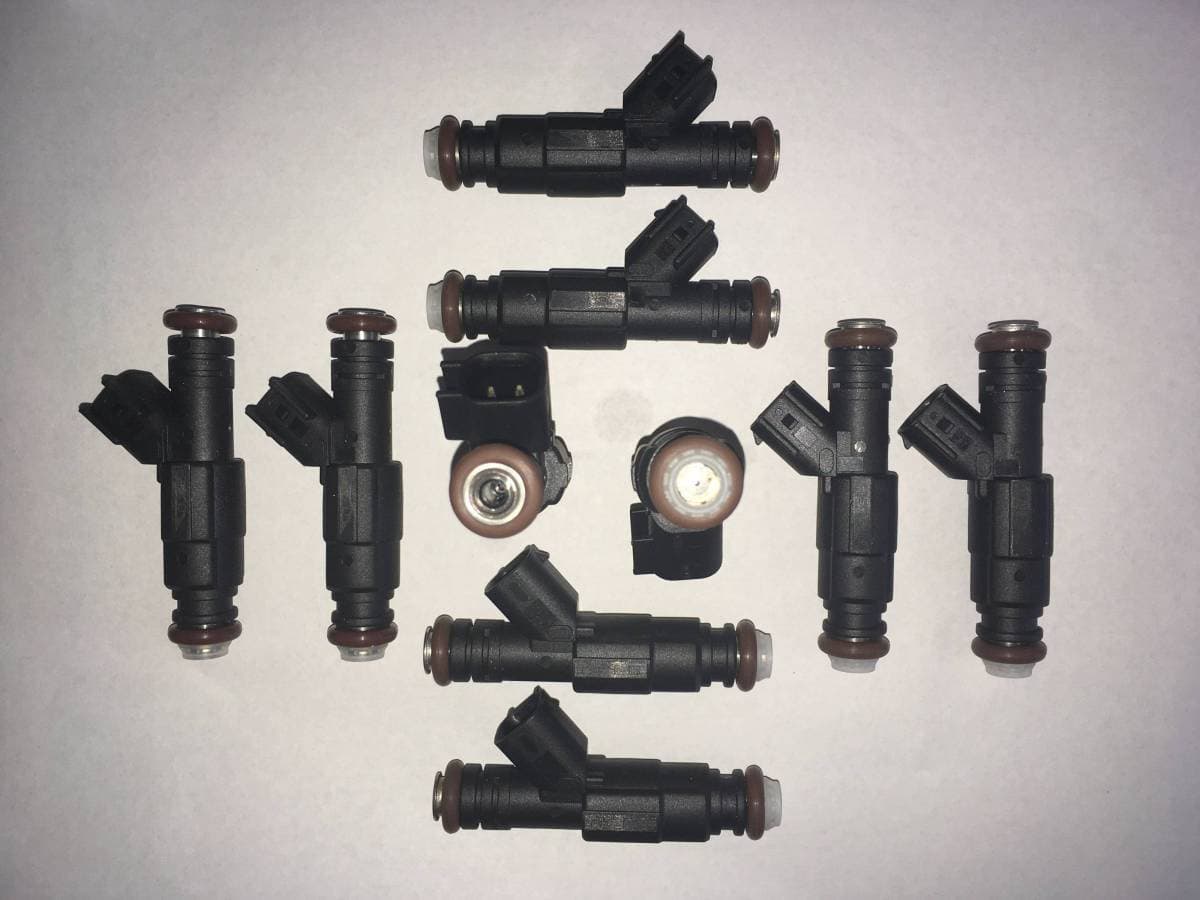

Included: 10 TRE 60lb tall thin body EV6 injectors. The photo is an example of a similar set.
See this video of us testing some TRE injectors on our ASNU flow bench:
TRE Fuel Injector ASNU Flow Testing
These High Resistance(Approx. 12.5 OHMS) Saturated fuel injectors will fit many applications.
Note:
If your vehicle needs EV6 style injector clips/plugs, please select them from the drop down menu above.
Specifications
Typical Flow Rate in CC per minute: 630 CC/min @ 43.5 PSI
Typical Flow Rate in LB per hour: 60 LBS/HR @ 43.5 PSI
Actual flow rate of your injectors may vary, but will be matched together
Resistance: 12.5 ohms (High Impedance, High Resistance)
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: 10.0 Amps
Pressure: Min 30 PSIG / Max 100 PSIG
Spacers/O-rings Included: YES, on the injectors
Fuel Delivery: Upgraded single fuel delivery nozzle for superior fuel atomization
Spray Pattern: 30 Degree Spray Cone
Electrical connector type: EV6 Oval Plug
Body Design: Compact, composite plastic
E85 Compatible: Yes
Offset: 0.065ms
Turn on time @ 14VDC: 1.3ms
Turn off time: 0.7ms @ 600KPa
Series: DEKA 4 ( DEKA IV )
Overall Length: 2 7/8 inches, 74 mm
O-ring to O-ring Length: 2 1/2 inches, 63 mm
Diameter: 16 mm
Orings: Top and bottom 14.5 mm
Warranty: 1 Year Warranty!
These TRE fuel injectors flow 60 lbs/hr at 43.5 PSI ( 3 BAR ) and up to 80 lbs/hr at 80 PSI! Despite the high flow rate these units are high-impedance, plus they are linear and controllable at low pulse widths and have been used in ULEV applications! This allows you to use a larger injector than normally possible without hurting idle and low speed drive-ability. Adding to the flexibility of application, these units are high-impedance; making them compatible with most ECUs, while delivering the most flow available in a High-Impedance injector.
These injectors are able to function at high fuel pressures and don’t exhibit the high fuel pressure handling problems found with many other high flow high-impedance injectors. This makes these injectors very well suited to turbocharged and supercharged applications that see high fuel system pressures.
TREperformance Fuel Injector Guarantee:
TREperformance warranties all of our fuel injectors for 1 year from the purchase date. If you have any problems with your injectors we will test them and replace any defective injectors free of charge. Buy with confidence though, in years of selling these injectors we have seen virtually no injectors fail! If you feel any of your injectors may be defective just contact us via email to receive an RMA number and we will reply back with all the return instructions. No returns are accepted without an RMA number. All of our TRE Fuel Injectors are manufactured according to strict guidelines in order to maintain ISO 9002 and ISO/TS 16949 quality system certifications.
TREperformance manufactures these fuel injectors and has each injector tested before shipment. These brand new, recently developed fuel injectors are always in stock and will often ship the day of payment. Save some money and try our TRE Fuel Injectors. We back them with a 1 year warranty! Thank you for considering TREperformance Fuel Injectors!
