Set of 2 TREperformance 370 cc/min Honda / Denso style, High Impedance, High Resistance fuel injectors. These have EV1 electrical connections and a 4-hole fuel delivery nozzle for superior fuel atomization and a cone shaped spray pattern.
Flow Rate in CC per minute: 370 CC/min @ 43.5 PSI
Flow Rate in LB per hour: 36 LBS/HR @ 43.5 PSI

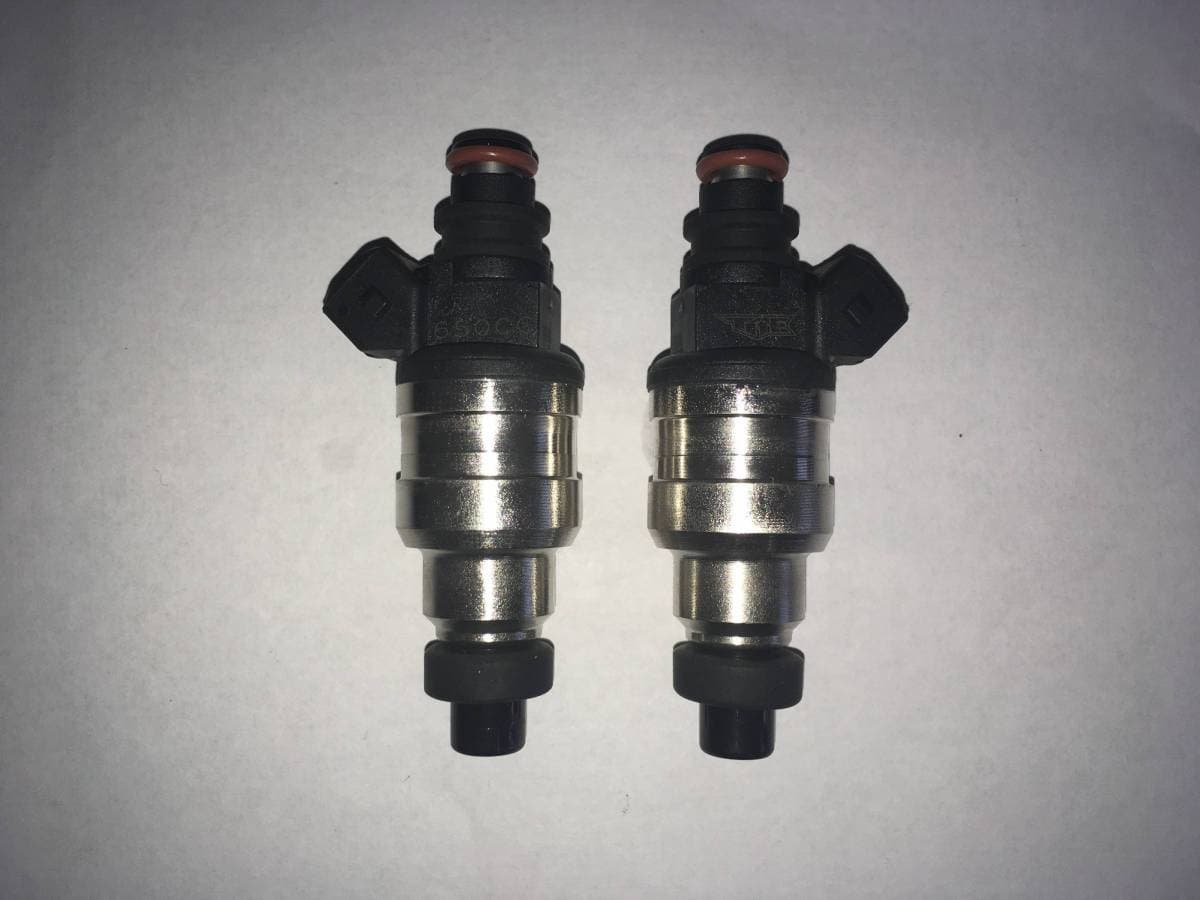

Included: 2 Honda / Denso style injectors. The photo is an example of a similar set.
These High Resistance(Approx. 10.5 OHMS) Saturated fuel injectors will fit many applications, including, but not limited to:
1989-1992 Mazda Rx-7 Turbo (REQUIRED Clips are an extra $14.95)
Late 1987-1988 Mazda Rx-7 ALL Models (Injector clips MAY be required if you have offset notches on the stock injector clips - extra $14.95)
1986-Early 1987 Mazda Rx-7 ALL Models
2004-2011 Mazda RX-8 ALL Models (REQUIRED Clips are an extra $14.95)
The Mazda RX-8 has a very unique fuel system, consisting of 6 total fuel injectors at varying capacities.
Each of the two rotors function with 3 dedicated fuel injectors, two primary (designated P1 and P2) and one secondary injector (designated S). Both secondary factory injectors (S) flow 380cc/min. The P1 factory injectors flow 290cc, and the P2 injectors flow 380cc. Most RX8 owners interested in getting more fuel into their rotary engine replace both secondary injectors with high performance injectors and run the stock 380cc secondary and stock 380cc P2 injectors in the P1 and P2 ports.
TREperformance fuel injectors are only compatible with the two secondary injector ports on the RX-8.
Email us if you have questions regarding fitment.
You can always run these high resistance injectors, even in a low resistance setup.
Note:
These have OBD1 EV1 Square plug center notch electrical connections. If your vehicle needs to convert to OBD1 style injector clips/plugs, please select them from the drop down menu above - additional $14.95.
Specifications
Condition: 100% BRAND NEW
Typical Flow Rate in CC per minute: 370 CC/min @ 43.5 PSI
Typical Flow Rate in LB per hour: 36 LBS/HR @ 43.5 PSI
Actual flow rate of your injectors may vary, but will be matched together
Resistance: 10.5 ohms (High Impedance, High Resistance)
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min 30 PSIG / Max 100 PSIG
Spacers/O-rings Included: YES, on the injectors
Fuel Delivery: Upgraded Four-hole disc fuel delivery nozzle for superior fuel atomization
Spray Pattern: 4-hole Nozzle With Cone Shape Spray Pattern
Electrical connector type: EV1 (Minitimer, Jetronic)
Overall Length: 3 inches, 76 mm
Top O-ring: 11 mm
Warranty: 1 Year Warranty!
TREperformance Fuel Injector Guarantee:
TREperformance Inc. warranties all of our fuel injectors for 1 year from the purchase date. If you have any problems with your injectors we will test them and replace any defective injectors free of charge. Buy with confidence though, in years of selling these injectors we have seen virtually no injectors fail! If you feel any of your injectors may be defective just contact us via email to receive an RMA number and we will reply back with all the return instructions. No returns are accepted without an RMA number. All of our TRE Fuel Injectors are manufactured according to strict guidelines in order to maintain ISO 9002 and ISO/TS 16949 quality system certifications.
TREperformance Inc. manufactures these fuel injectors and has each injector tested before shipment. These brand new, recently developed fuel injectors are always in stock and will often ship the day of payment. Save some money and try our TRE Fuel Injectors. We back them with a 1 year warranty!
Thank you for considering TREperformance Fuel Injectors!
