This is a set of 4 TREperformance Wide Body 2000 cc/min Low Resistance, peak and hold fuel injectors. These have EV1 electrical connections and a single nozzle cone shape fuel delivery.
Flow Rate in LB per hour: 190 LBS/HR @ 58 PSI
Flow Rate in CC per minute: 2000 CC/min @ 58 PSI

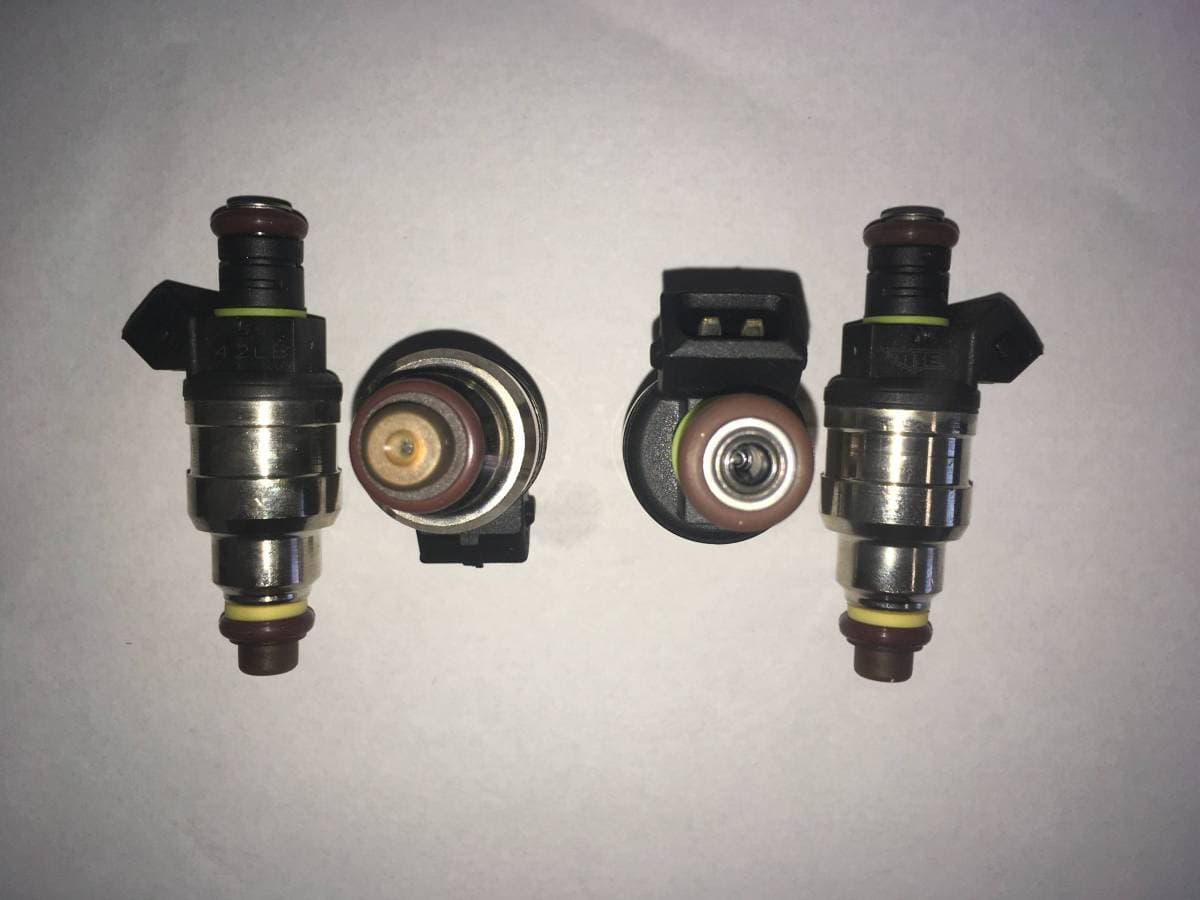

Included: 4 Wide Body Bosch style injectors. The photo is an example of a similar set.
These Low Resistance(Approx. 3.0 OHMS) Peak and Hold fuel injectors will fit many applications, including, but not limited to:
Any Ford 2.3 or 2.3T Engine, 1984-1993
Any Ford 4 Cylinder Engine with Bosch EV1 or EV6 style injectors
Any BMW 4 Cylinder Engine with Bosch EV1 or EV6 style injectors
Audi A4 S4 TT 1.8L 1.8T
VW Golf, Passat, Jetta IV 1.8 T
Any Lancia Delta Model including:
HF, 4WD, Turbo, 8V, 16V, Evo, Evo1, Evo2, HF4WD
Note: If your vehicle needs OBD1 style injector clips/plugs, please select them from the drop down menu above - additional $19.95.
Specifications
Condition: 100% BRAND NEW
Typical Flow Rate in CC per minute: 2000 CC/min @ 58 PSI (4 BAR)
Typical Flow Rate in LB per hour: 190 LBS/HR @ 58 PSI (4 BAR)
Typical Flow Rate in CC per minute: 1780 CC/min @ 43.5 PSI (3 BAR)
Typical Flow Rate in LB per hour: 170 LBS/HR @ 43.5 PSI (3 BAR)
Actual flow rate of your injectors may vary, but will be matched together
Resistance: 3.0 ohms (Low Impedance, Low Resistance)
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: Peak 2.5 Amps/ Hold 1.0 Amps
Pressure: Min 30 PSIG / Max 100 PSIG
Spacers/O-rings Included: YES, on the injectors
Fuel Delivery: Upgraded single fuel delivery nozzle for superior fuel atomization
Spray Pattern: Single Nozzle With Cone Shape Spray Pattern
Electrical connector type: EV1 (Minitimer, Jetronic)
Overall Length: 3 inches, 74 mm
Orings: Top and bottom, 14.5 mm
Warranty: 1 Year Warranty!
TREperformance Fuel Injector Guarantee:
TREperformance warranties all of our fuel injectors for 1 year from the purchase date. If you have any problems with your injectors we will test them and replace any defective injectors free of charge. Buy with confidence though, in years of selling these injectors we have seen virtually no injectors fail! If you feel any of your injectors may be defective just contact us via email to receive an RMA number and we will reply back with all the return instructions. No returns are accepted without an RMA number. All of our TRE Fuel Injectors are manufactured according to strict guidelines in order to maintain ISO 9002 and ISO/TS 16949 quality system certifications.
TREperformance manufactures these fuel injectors and has each injector tested before shipment. These brand new, recently developed fuel injectors are always in stock and will often ship the day of payment. Save some money and try our TRE Fuel Injectors. We back them with a 1 year warranty!
Thank you for considering TREperformance Fuel Injectors!
