There are many options available for Magnuson kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.
These supercharger kits are the most complete available, including everything needed for installation. This includes all mounting brackets for the blower, pullies, belts, intercooler, all the tubing, piping, fittings and clamps and even oil for the self contained lubricating system. You do not need to make any major modifications or purchase special tools or other parts. Many customers install in their garage or driveway over a weekend.

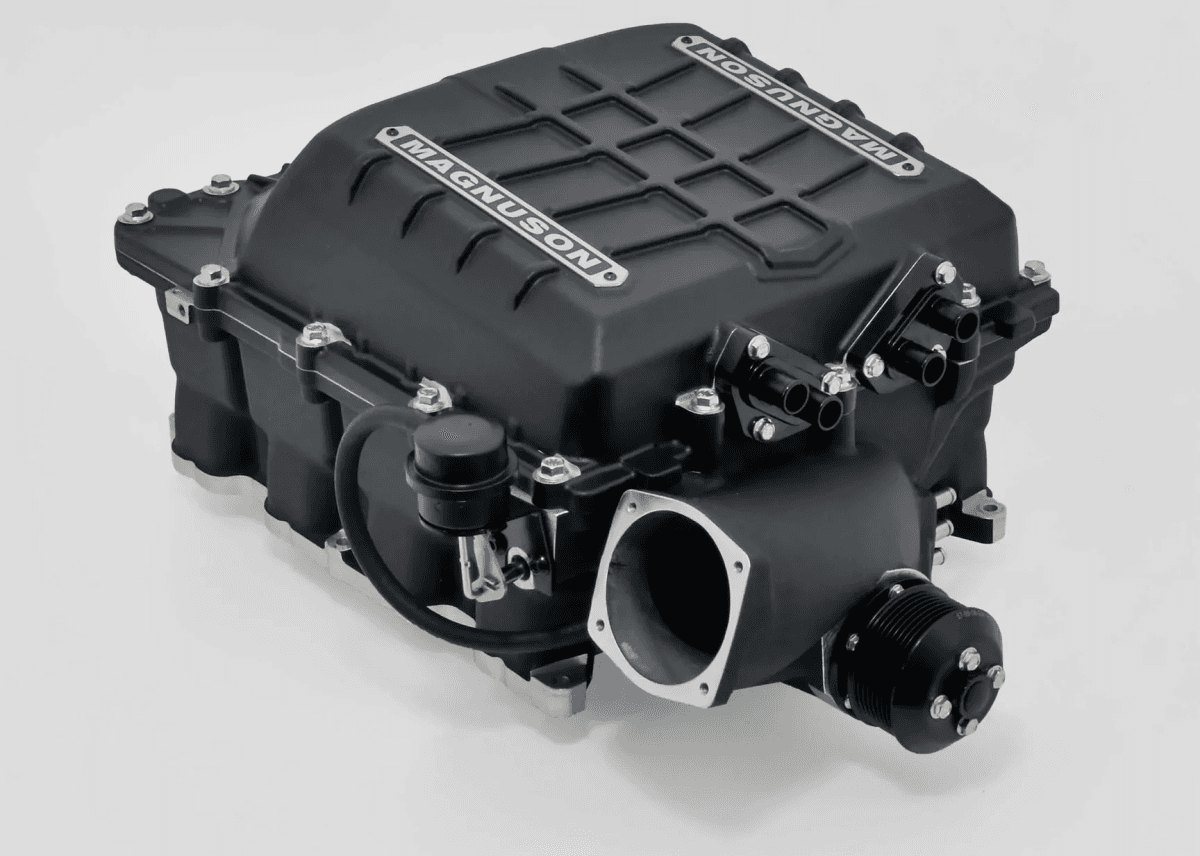

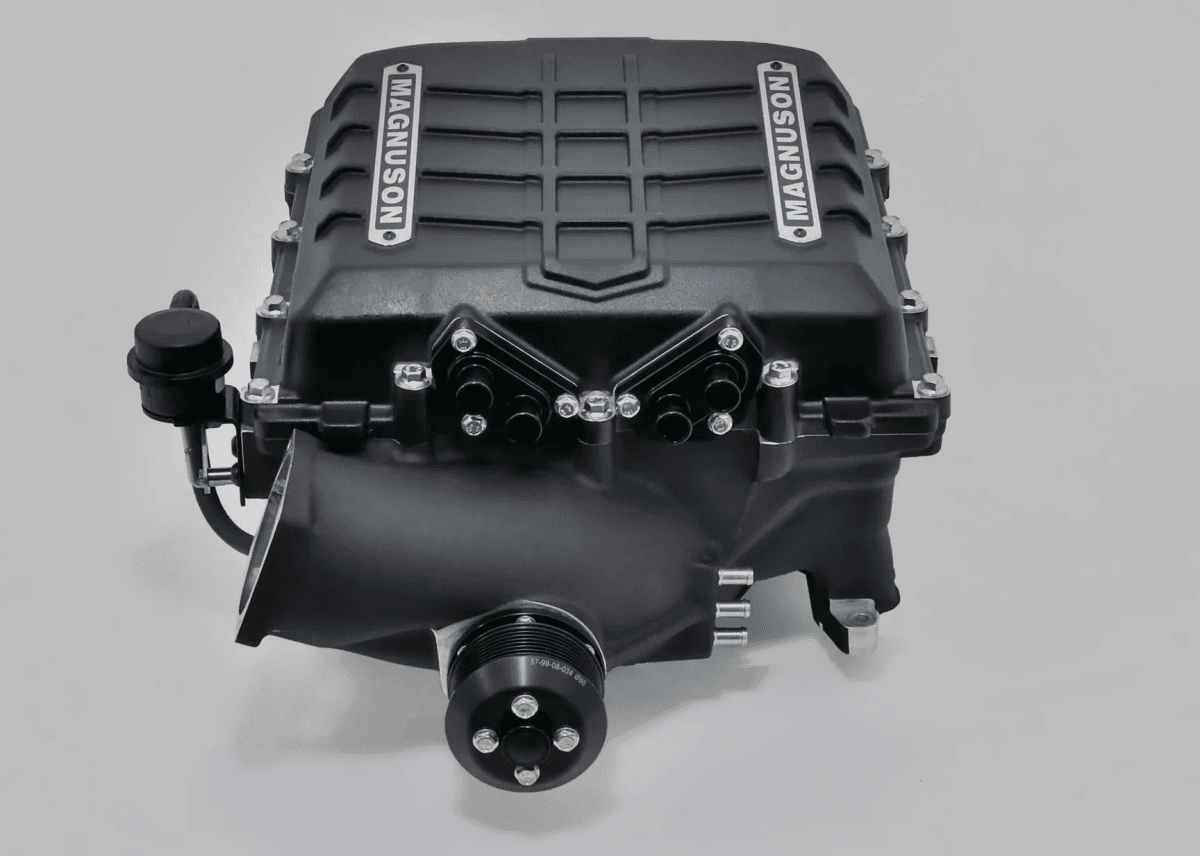

At the heart of the Magnuson Supercharger System is Eaton’s latest Twin Vortices Series (TVS) supercharger unit, the TVS2650. The supercharger system is a positive displacement, roots style pump, utilizing Eaton’s lightweight, four-lobe 160 degree twisted rotors. Cast and assembled as a single, OEM-style-manifold and rotating group housing, the unit is quiet, compact, attractive, easy to install, and requires little to no extra maintenance to the unit itself.
The positive displacement supercharger offers power instantly as the throttle is pressed. Boost pressure builds with no perceived lag commonly associated with other types of forced induction, and provides a large increase in torque across the entire power band. Throttle control is linear and predictable and makes for an excellent driving experience both in daily driving and wide-open acceleration.
DETAILS:
Horsepower: +543 hp
Eaton TVS2650 supercharger head unit, 7-8 psi
Highly effective air-to-water intercooler
SC Drive System: Stock 6-Rib
Fuel Pump Supplied: High Flow Fuel Pump Supplied
Fuel Injectors Supplied: High Flow Fuel Injectors Supplied
Computer/Ignition Mods.: OBDII Flash Device Supplied
O-rings on all interfaces (leak-free install)
Unrestricted rotor discharge port (maximizes flow, minimizes loss)
Large plenum (equalizes flow to all ports)
Long port “runners” for improved fueling (minimizes cross-fire)
Supercharger specific Spark Plugs
Maintains all OE sensors
High Flow Air Filter
Injection molded Lower Air-box
Injection molded Upper Air-box
Injection molded intake Coupling
Utilizes OE throttle body
Easiest and quickest installation
System is 100% complete with OEM quality and appearance
CARB EO D-488-58
TREperformance is an Authorized Priority Dealer of Magnuson.
Standard 3 Year / 36K Miles warranty direct from Magnuson.
Custom made and shipped direct from Magnuson in 5-10 business days!

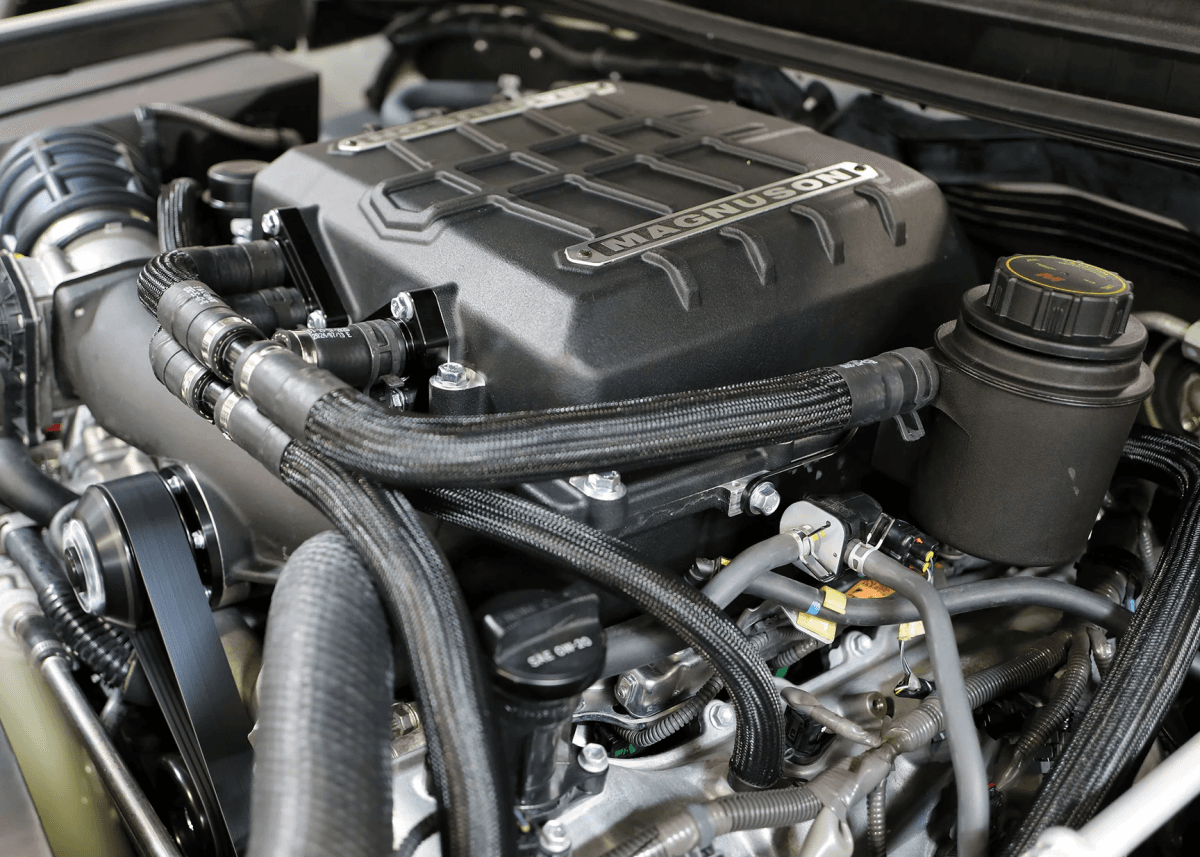

Magnuson Toyota Land Cruiser / Lexus LX570 5.7L V8 TVS2650 Supercharger System
Designed for the 2008-2021 Toyota Land Cruiser/Sequoia and Lexus LX570 5.7L V8, the all-new Magnuson TVS2650 sets a new standard for performance. Engineered with no compromises, this supercharger system is built for maximum airflow, efficient cooling, and big horsepower gains across all engine speeds.
At its core is the Eaton TVS2650 high-helix rotor group, capable of delivering well over 1,000 rear-wheel horsepower. This system’s advanced design, featuring optimized inlet porting and a large custom intercooler, ensures ultra-efficient post-supercharger air cooling. With dual coolant ports and a high-flow intercooler, the TVS2650 keeps intake air temperatures low, delivering consistent power under any conditions.

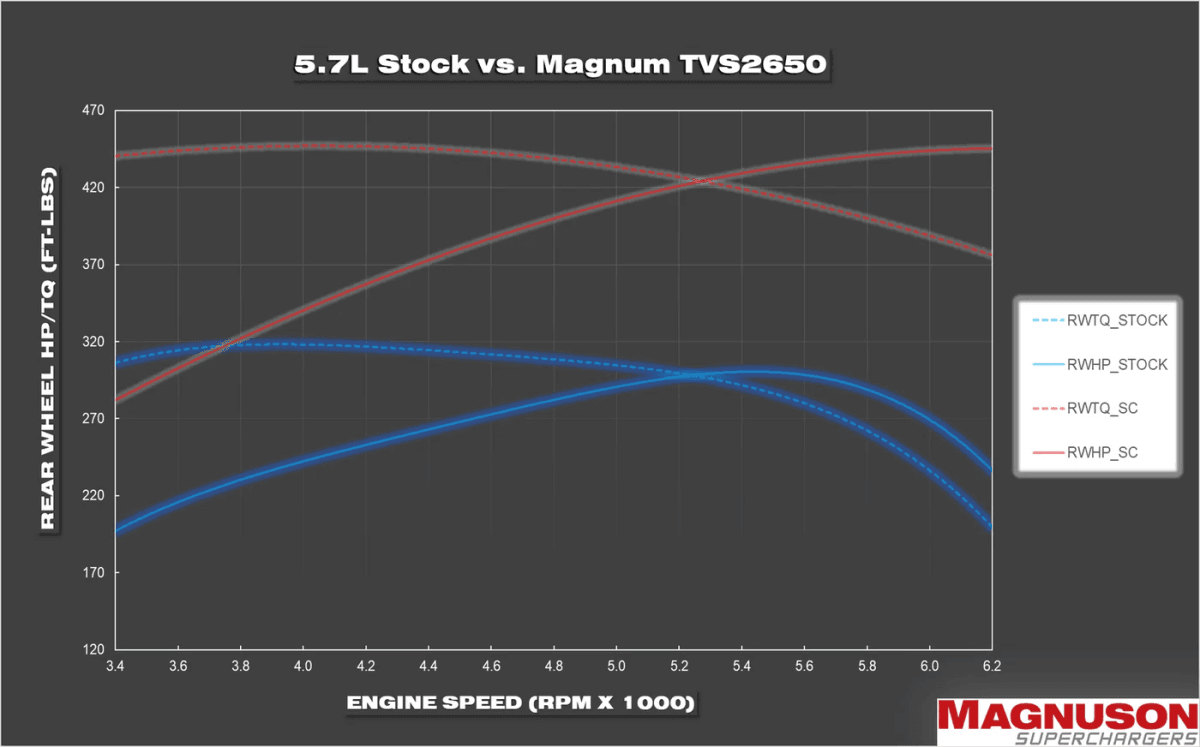

In testing, this system made 543 horsepower and 535 lb-ft of torque to the crank at just 7 psi, with significant gains across the entire RPM band. That’s usable power you can feel, whether you’re on the road or off.
Every component in the TVS2650 kit is designed for quality and performance, ensuring a seamless installation and a factory-like fit and finish under the hood. Elevate your Land Cruiser or LX570 to new heights with the Magnuson Magnum TVS2650 Supercharger System.
