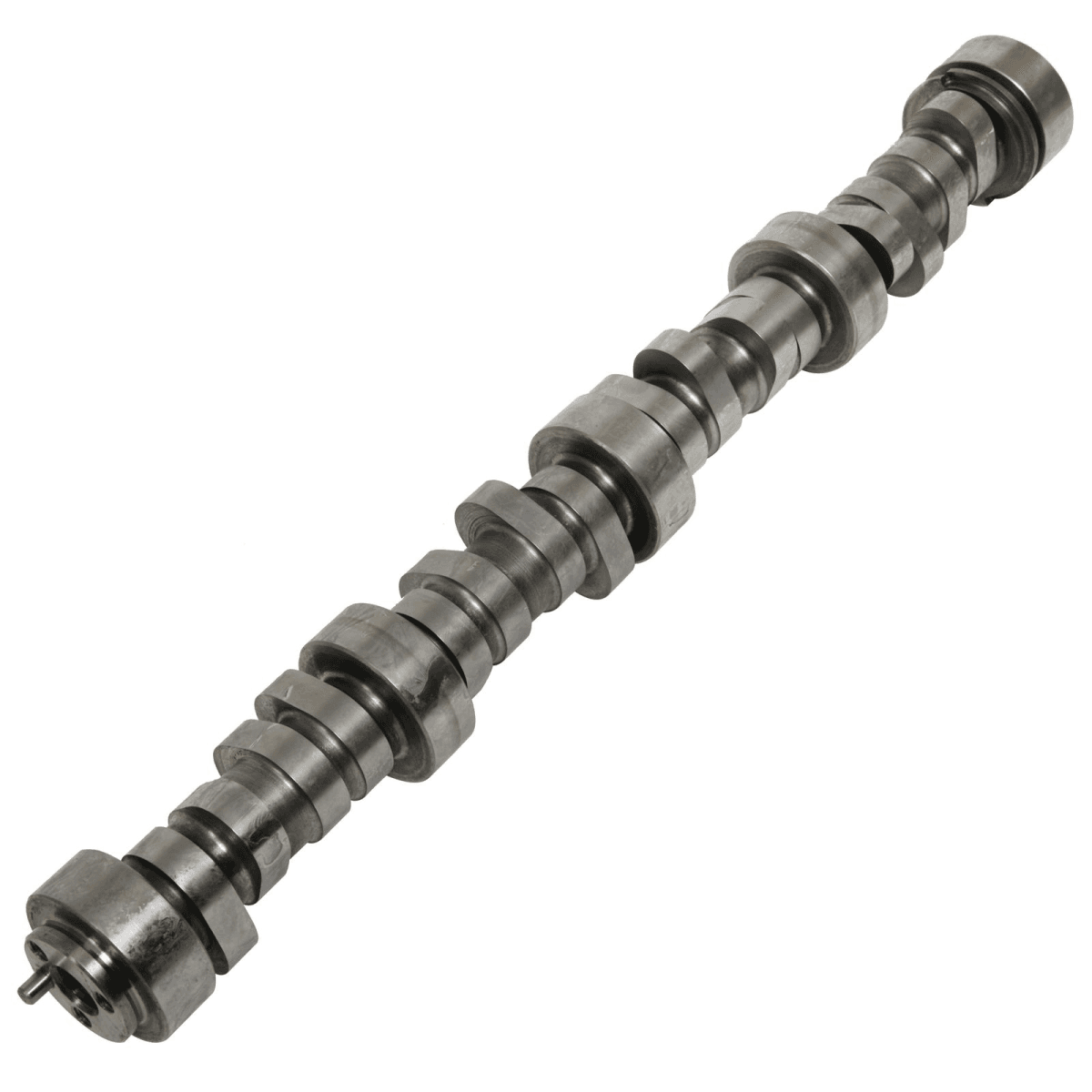

TFS Track Max Camshaft GM LS 285 int./292 exh. Lift - 114 LSA

Give your GM LS-powered hot rod significant horsepower and torque increases with a Trick Flow® Track Max® Hydraulic Roller Camshaft. These camshafts are dyno-proven to produce a wide power curve over the entire rpm range, not just at a particular rpm point or peak. The camshafts are cut from premium blank cores and checked for proper hardness before being precision ground to exact tolerances.

Note: Camshaft Description - Excellent idle, strong midrange power, 2,000-6,000 rpm powerband, computer modification recommended. Compression: 10.5:1 minimum. With 3-bolt cam gear mounting and rear integral LS1/LS6 camshaft sensor pick-up ring.

Camshaft Specs:
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Camshaft Manufacturers Description: Excellent idle, strong midrange power, 2,000-6,000 rpm powerband, computer modification recommended. Compression: 10.5:1 minimum. With 3-bolt cam gear mounting and rear integral LS1/LS6 camshaft sensor pick-up ring.
Basic Operating RPM Range: 2,000-6,000
Intake Duration at 050 inch Lift: 216
Exhaust Duration at 050 inch Lift: 220
Duration at 050 inch Lift: 216 int./220 exh.
Advertised Intake Duration: 285
Advertised Exhaust Duration: 292
Advertised Duration: 285 int./292 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.560 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.560 in.
Valve Lift with Factory Rocker Arm Ratio: 0.560 int./0.560 exh.
Lobe Separation (degrees): 114
Camshaft Gear Attachment: 3-bolt
Remanufactured: No
Computer-Controlled Compatible: Yes
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: This camshaft is not compatible with Active Fuel Management. An AFM delete kit and disabling the AFM through the ECM is required. Minimum 10:5:1 compression and LS1/LS6 style sensor pick-up ring. Custom computer tuning required.
