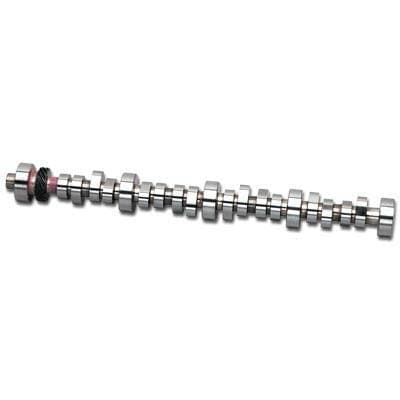

Trick Flow Specialties Stage 2 Track Max Hydraulic Roller Camshaft for 5.0L Ford
Fair idle, good midrange power
Basic Operating RPM Range - 2,500-6,000 RPM
Aftermarket intake, heads, and headers recommended
2,500-3,000 rpm stall converter or five-speed recommended
Duration @ .050" - 224°/232°
Valve Lift with 1.6 Rocker - .542/.563
Lobe Separation - 112°
Fair idle, 2,500-6,000 rpm powerband. 2,500-3,000 rpm stall converter or 5-speed with 3.55 and numerically higher gears recommended. Calibrated mass airflow meter required. Compression 9.5:1 minimum.
Specifically designed to match the power characteristics of Trick Flow cylinder heads, these Track Heat cams for 5.0L Ford engines offer state-of-the-art power at an affordable price. Starting as premium blank cores, the cams are checked for the proper hardness, then precision-ground to exacting tolerances. Instead of creating a steep, narrow powerband that falls off very quickly, the cams' powerband achieves maximum area under the curves of the Twisted Wedge heads.
