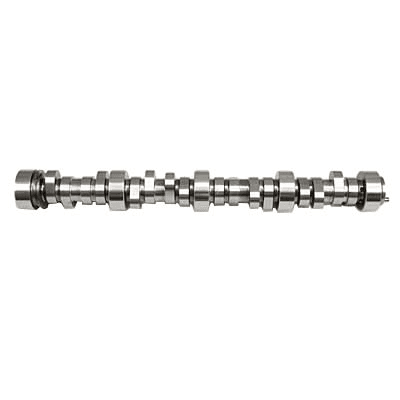

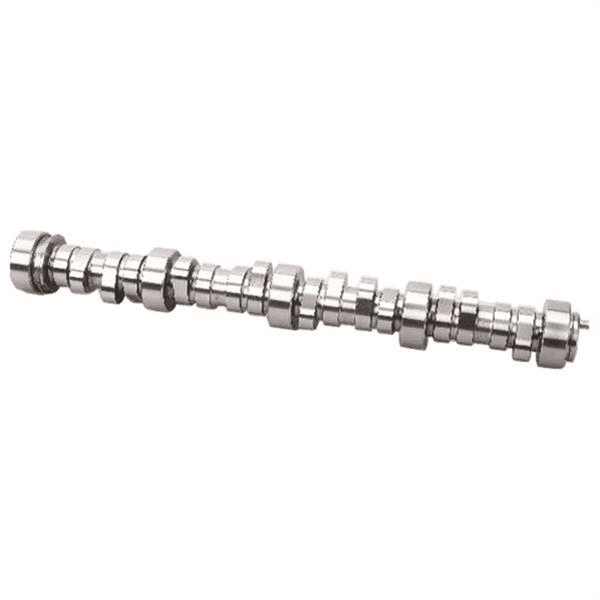

Part Number: TFS-32603001
Camshaft Use: Street/Strip
Basic Operating RPM Range: 3,000-7,000
Intake Duration at 050 inch Lift: 230
Exhaust Duration at 050 inch Lift: 238
Duration at 050 inch Lift: 230 int./238 exh.
Advertised Intake Duration: 278
Advertised Exhaust Duration: 286
Advertised Duration: 278 int./286 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.625 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.625 in.
Valve Lift with Factory Rocker Arm Ratio: 0.625 int./0.625 exh.
Lobe Separation (degrees): 113
Camshaft Gear Attachment: 3-bolt
Computer-Controlled Compatible: Yes
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: This camshaft is not compatible with Active Fuel Management. An AFM delete kit and disabling the AFM through the ECM is required. Minimum 10:5:1 compression and LS1/LS6 style sensor pick-up ring. Custom computer tuning required.
