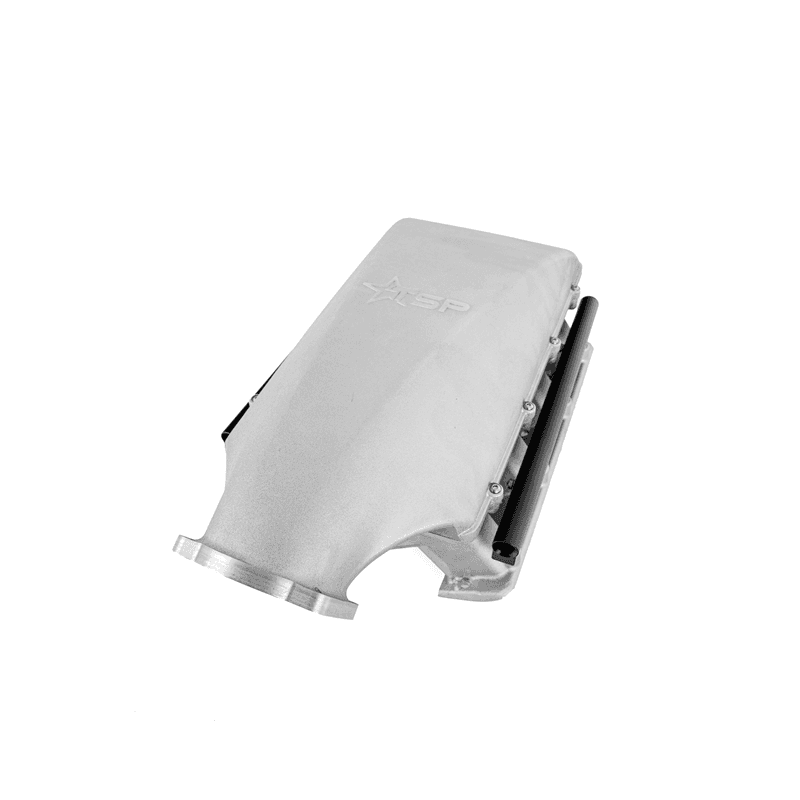

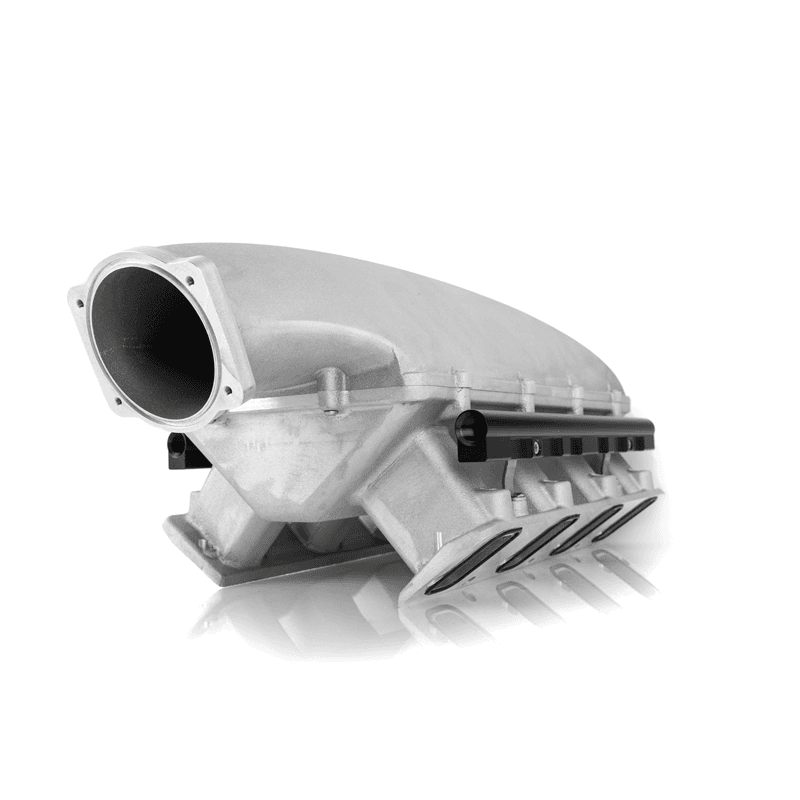

TSP's all-new 2-piece cast-aluminum intake manifold for Cathedral Port's is here! Lots of design and testing has gone into this manifold, which was developed specifically for boosted and high rpm naturally-aspirated applications.

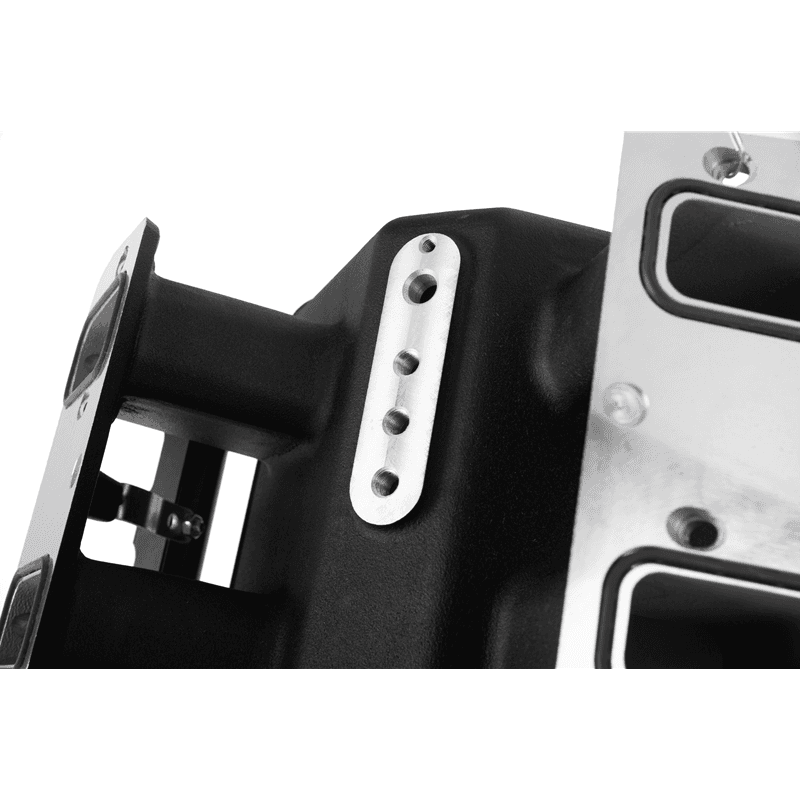

Note: Throttle Cable Bracket NOT compatible with Motion Race works Icon TBs

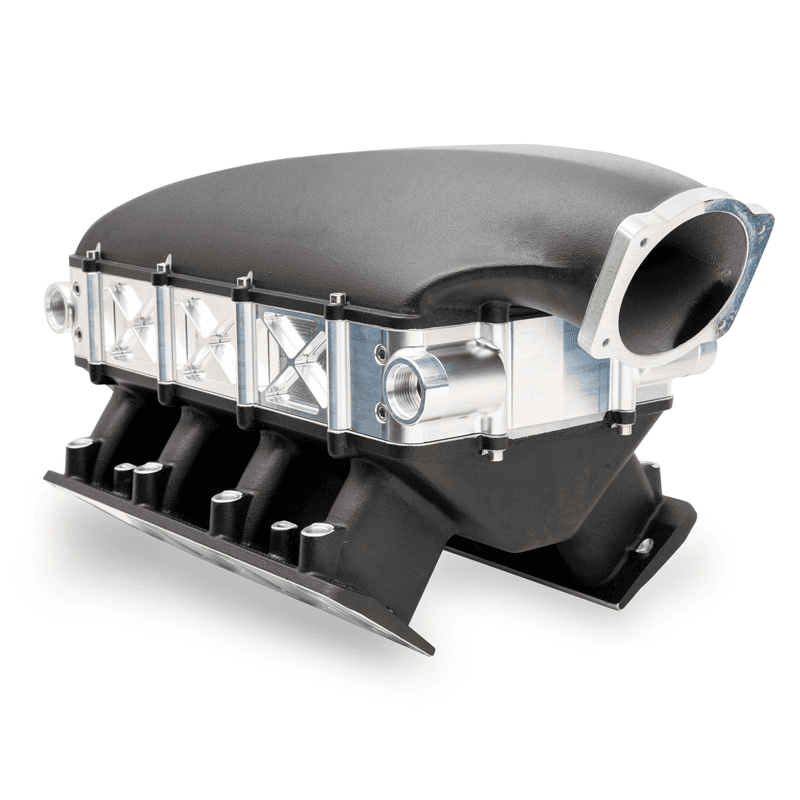

*Notice last picture is an example of the intake manifold with optional Air to Water Intercooler! (Intercooler rated at 1900HP)
This item has many options see the blue "choose product options" button to avoid any delays.
Features:
Fully Designed, Cast, & Machined In The U.S.A.
2-Piece Design For Easy Porting
Short Runner High HP Cathedral Runner Design
LS1,LS2,LS3 Fuel Injector Options
Includes All Necessary Gaskets & Bolts
Includes Fuel Rails & -8 AN Fittings
2-Piece Design Allows For Mid-Intake Intercooler Layout
2200hp Intercooler Option Is A Direct Bolt In!

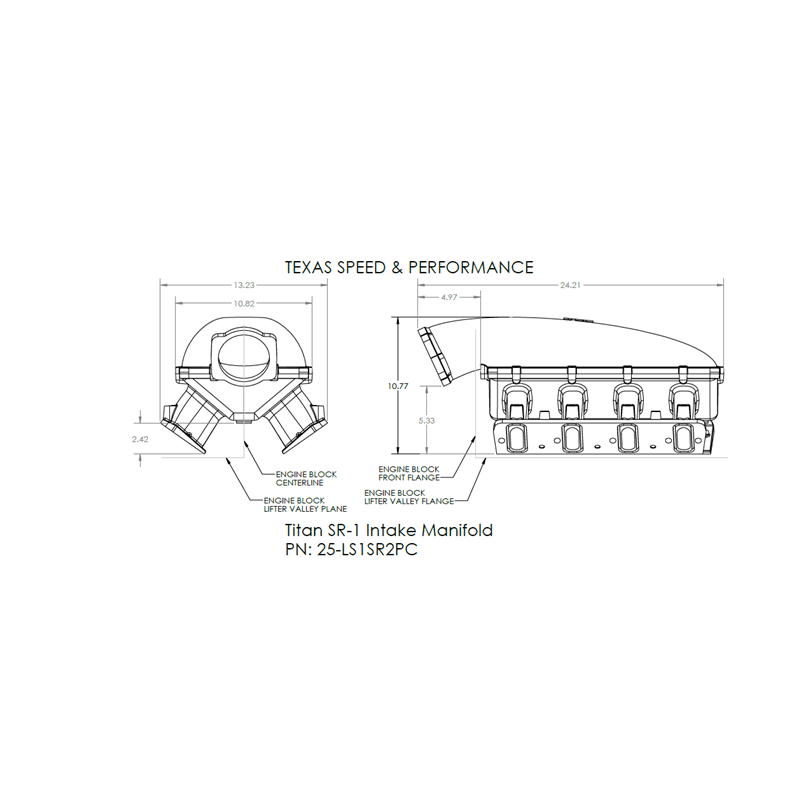

10.36" at tallest point. Intercooler adds 4.96".
Approximately 23 lbs with rails.
2x 1/8NPT Ports, 1x 1/4NPT Port, Map Sensor/Vacuum Block Hole
